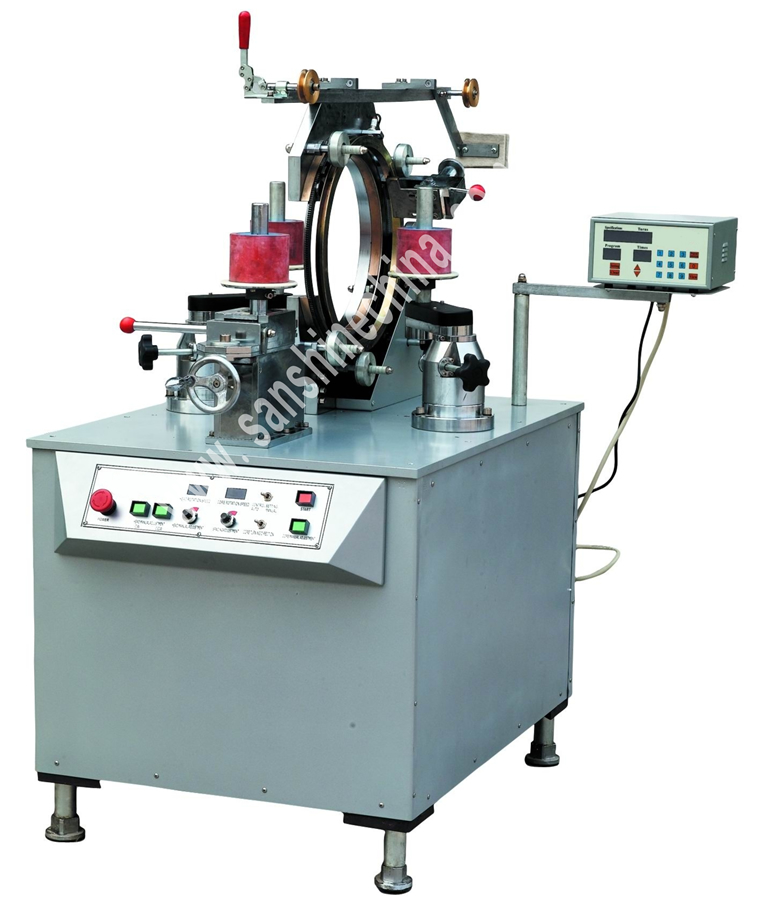

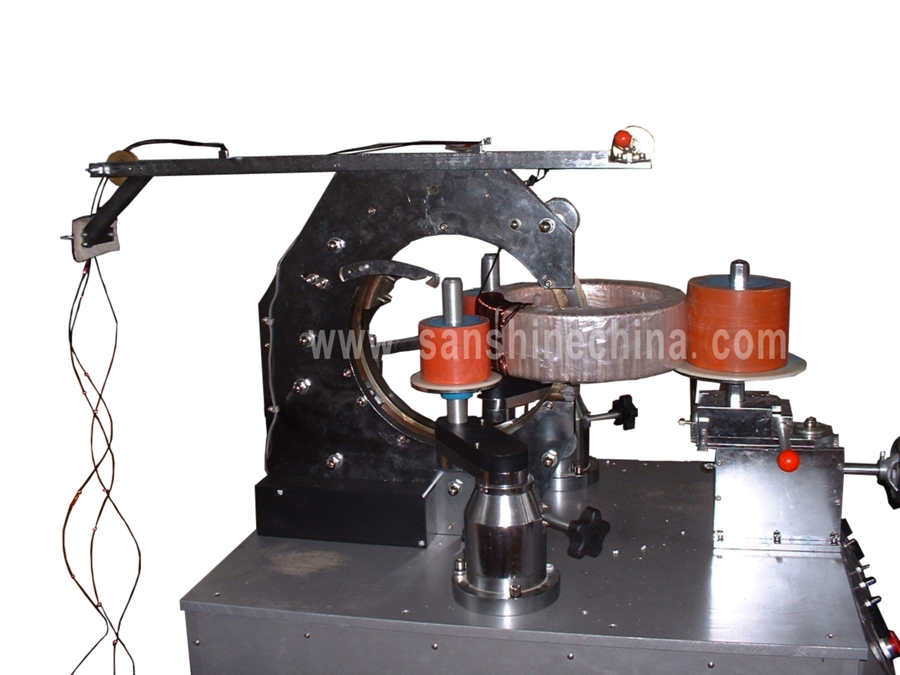

    Product name : Automatic super big toroidal winding machine (SS1002)




    Description :
    SS1002 gear type Digital Automatic Super Big Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-winding machine. it is used for winding super big toroidal inductor with thick wire, toroidal transformer with thick wire, toroidal current transformer with thick wire, toroidal coil with thick wire , toroid choke coil, power inductors, power magnetics, UPS inductor with thick wire,  converter inductors with thick wire,  heavy toroidal core with heavy wire coils, extra high voltage toroidal transformer, etc.
    Features:
    1. Collocate the gear type winding head to wind very heavy wire, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different wires, so that to reduce the cost.
    2. Hi-tech shuttle for highest efficiency.
    3. Separate speed controls for loading and winding.
    4. Accurately count length of loading by limited-switch.
    5. Accurately count turns of winding by photo-electricity sensor.
    6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
    7. Accurately wire spacing by programmable controller.
    8. Memory capacity accommodates 29 sets programes with off-power memory retention.

    Specification :

    Wire diameter

    1.0 - 5.0mm Max. winding speed 100 RPM
    Max. final coil O. D. Φ  650 -1500mm Wire spacing stepping motor
    Min. final coil I. D. Φ  500mm Supply voltage AC220V,50Hz single phase
    Max. final coil height 350mm Mechanical dimensions depend on different core size
    Controller storage capacity programs 29(sets) Weight depend on different core size

    How to select the best suited automatic toroid coil winding machine for your toroid coil ?
    Tell us your toroidal coil of data as below please :

    1.toroid core outside diameter before winding?
    2.toroid core inside diameter before winding?
    3.toroid core height before winding?
    4.how many windings on this core?
    5.how many turns of each winding?
    6.how about the copper wire diameter of each winding?
    7.provide pictures of product which is more better.
