LCZ LCR meter SS1061A
Product 2/6  LCR & LCZ tester  LCZ LCR meter SS1061  LCZ LCR meter SS1062
  • LCZ LCR meter SS1061A
  • LCZ LCR meter SS1061A

    Description :

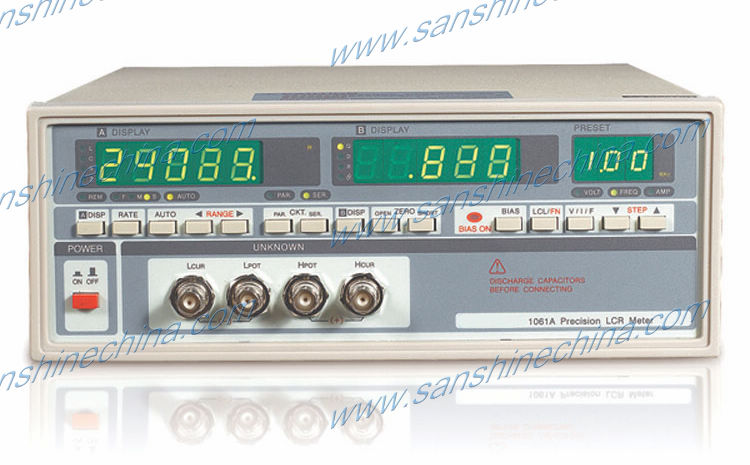

    The SS1061A / SS1062A LCZ LCR meters are a high-grade component test instrument upgraded from SS106X series, with 4 output impedance modes and measuring results compatible with other well-known LCR meters.
    Key feature :
    Test frequency: 40Hz ~ 200KHz
    Test voltage: 10mV ~ 2.5V, 10mV/step
    4 output impedance modes: 25Ω, 100Ω, 50Ω, 2Ω
    Direct comparison: HP4284, GR1689, WK3245, NF2330
    Order Items :

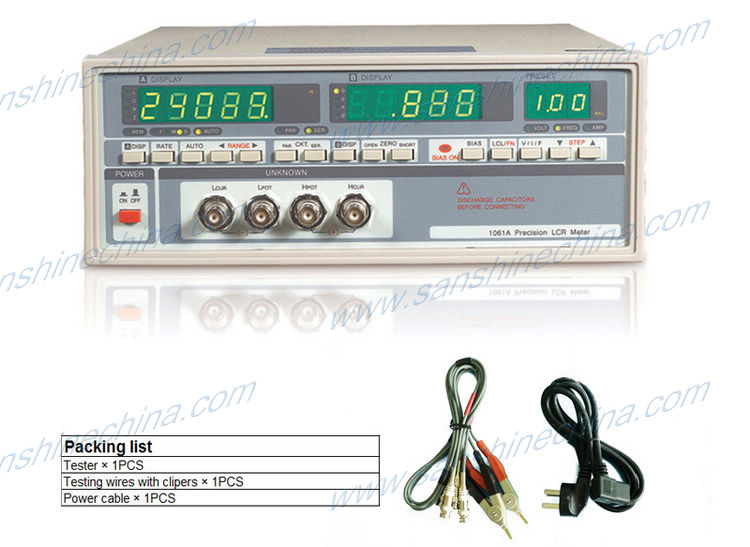

    SS1061A
    SS1062A
    4-terminal test clamp(within tester)
    Test pen(optional)
    Test box(optional)
    SMD test wire(optional)
    Specification :
    Model SS1061A SS1062A
    Test parameter
    Main display L ,C,   R, Z
    Subaltern display Q ,D ,ESR ,θ
    Measure signal
    Meas. Level 10mV~2.5V,10mV/step
    Meas. Frequency 40HZ~200KHZ
    Frequency accuracy ±0.15%
    Out impedance 25Ω±5% ,100Ω±5% ,50Ω±5% ,2Ω±10%(load impedance ≥ 10Ω)
    Measure Range
    Main parameter L(0.00001uH ~ 9999.99H),
    C(0.0001pF~9999.9mF)
    R(0.0001mΩ~9999.9MΩ),
    Z(0.0001mΩ~9999.9MΩ)
    Subaltern parameter Q, D(0.0001~9999.9),θ(-90.00°~90.00°), Δ %(0.0001%~99999%)
    Base accuracy 0.15% (AC parameter 1KHZ )
    Measure speed (1KHZ )
    Best fast 13Measurement/S
    Fast 10Meas./S
    Middle 5Meas./S
    Slow 1Meas./S
    Trigger internal internal, external, manual
    Display
    L,C,Z,R 5pcs digitals
    Q,D,R, θ 5pcs digitals
    Frequency ,level 3pcs digitals
    Q,D,R, θ 5pcs digitals
    DC base   0
    Revising function open, short
    Equivalent circuit model series ,parallel
    Automatic judgement   pass or fail
    Common specification
    Environment temperature :10 ºC ~ 40 ºC ,humidity :10%~90%RH
    Power consuming Max.55W
    Power 90~125V , or 190~250V,, 48HZ~62HZ
    Weight 5.4Kg 7.5Kg
    Meas. (W×H×L ) 270×105× 350mm 405×130× 365mm
