Bench twin cone fiberglass wire stripping machine (SS-SM05)
Product 3/6  Wire stripping machine  Bench rotary insert wire stripping machine (SS-SM01)  Portable rotary blade wire stripping machine (SS-SM06)
  • Bench twin cone fiberglass wire stripping machine (SS-SM05)
  • Bench twin cone fiberglass wire stripping machine (SS-SM05)
  • Bench twin cone fiberglass wire stripping machine (SS-SM05)

    Description :

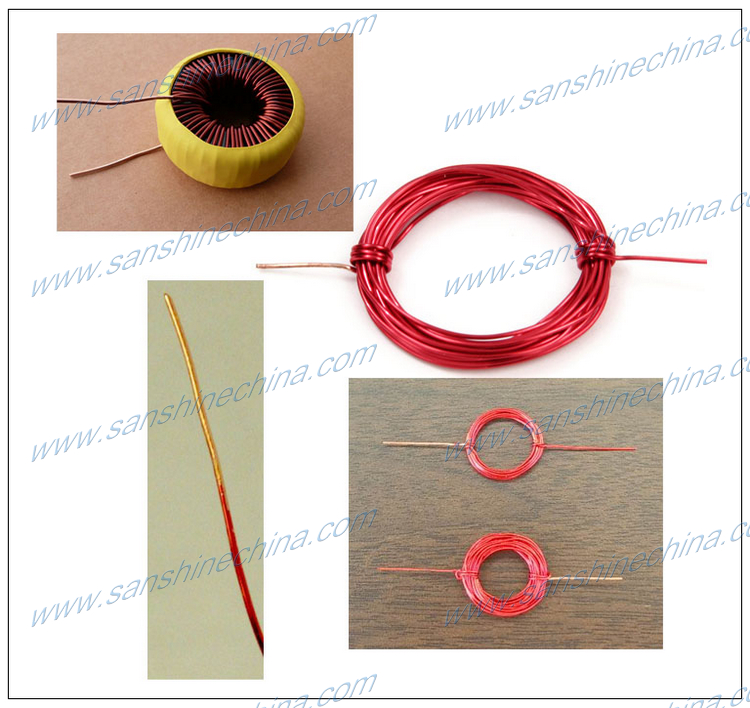

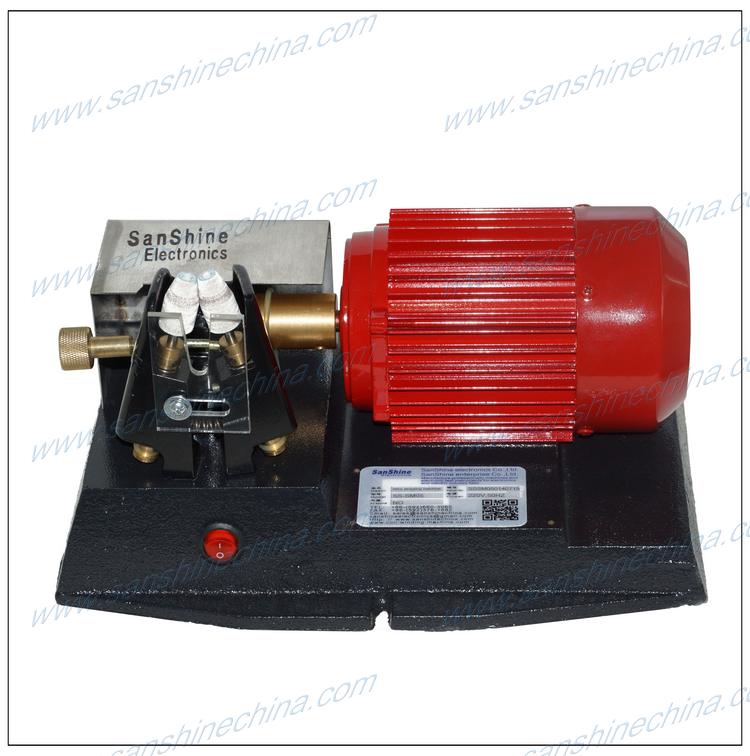

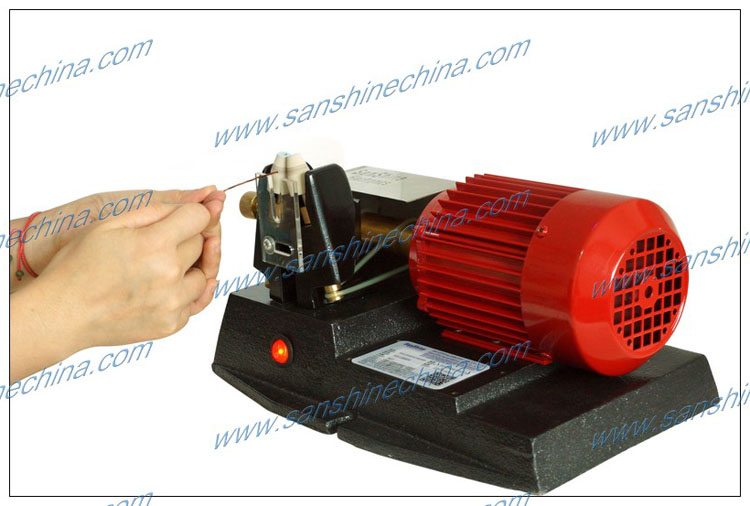

    The (SS-SM05) is one table top enameled wire stripping machine, it is constructed from motor, power switch, conical stripping fiberglass rollers(wheels), roller base. Is very convenient to use, It is best suited to the so fine insulated film wires. Which can strip a lot of surface insulated film wires(enamel wire,varnished wire,magnet wire,epoxy wire,polythermaleze wire,etc.)quickly(like as flat wire, twisted wires, roundish wire), can strip many PCS wires at one time, and do not break wire core. It is used for the fine wire. It is used for motor manufacture, transformer manufacture,inductor manufacture, coils manufacture, cable manufacture, and so on. It is superior to knife, grinding wheel and chemical of stripping ways. It increases the processing efficiency and improve the soldering quality.
    Specification :
    Wire diameter range: ¢ 0.045~0.3mm(depend on different fiberglass stripping roller, type A roller for wire :0.045-0.15mm, type B roller for wire: 0.13-0.3mm).
    Power source: 220V/50Hz.
    Power: 120W
    Rotation speed: 2800r/min
    Weight: 15Kg.
