Ceramic eyelet
Product 1/1  Ceramic eyelet(Ceramic ring)

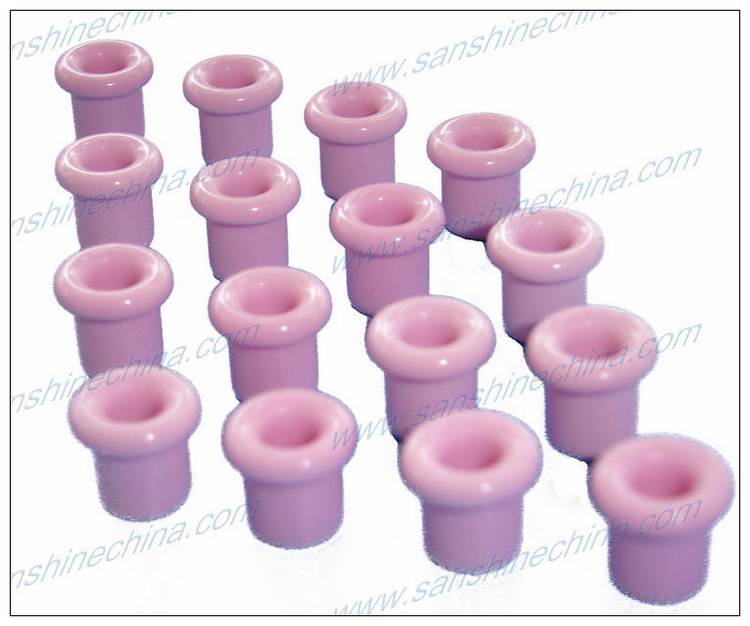

  • Ceramic eyelet

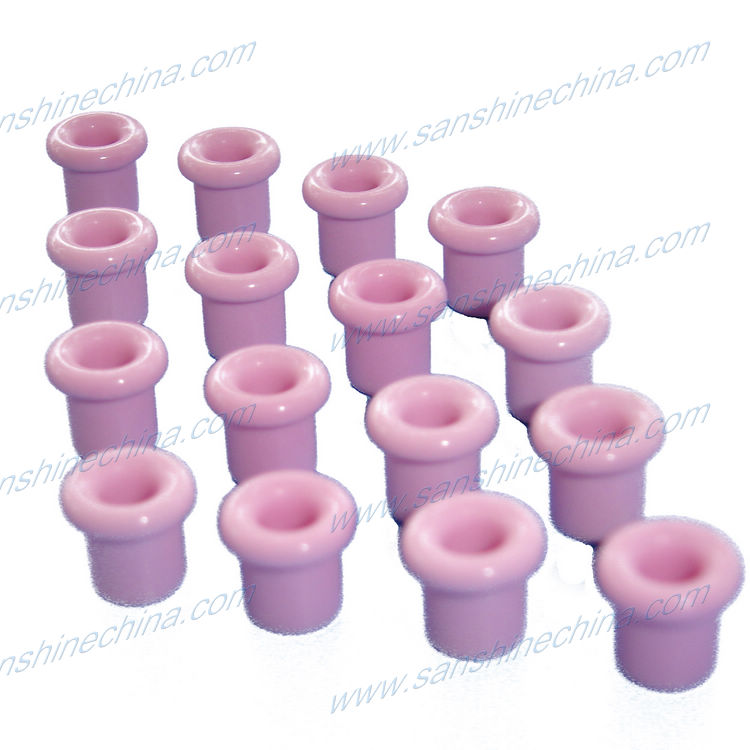

  • Ceramic eyelet

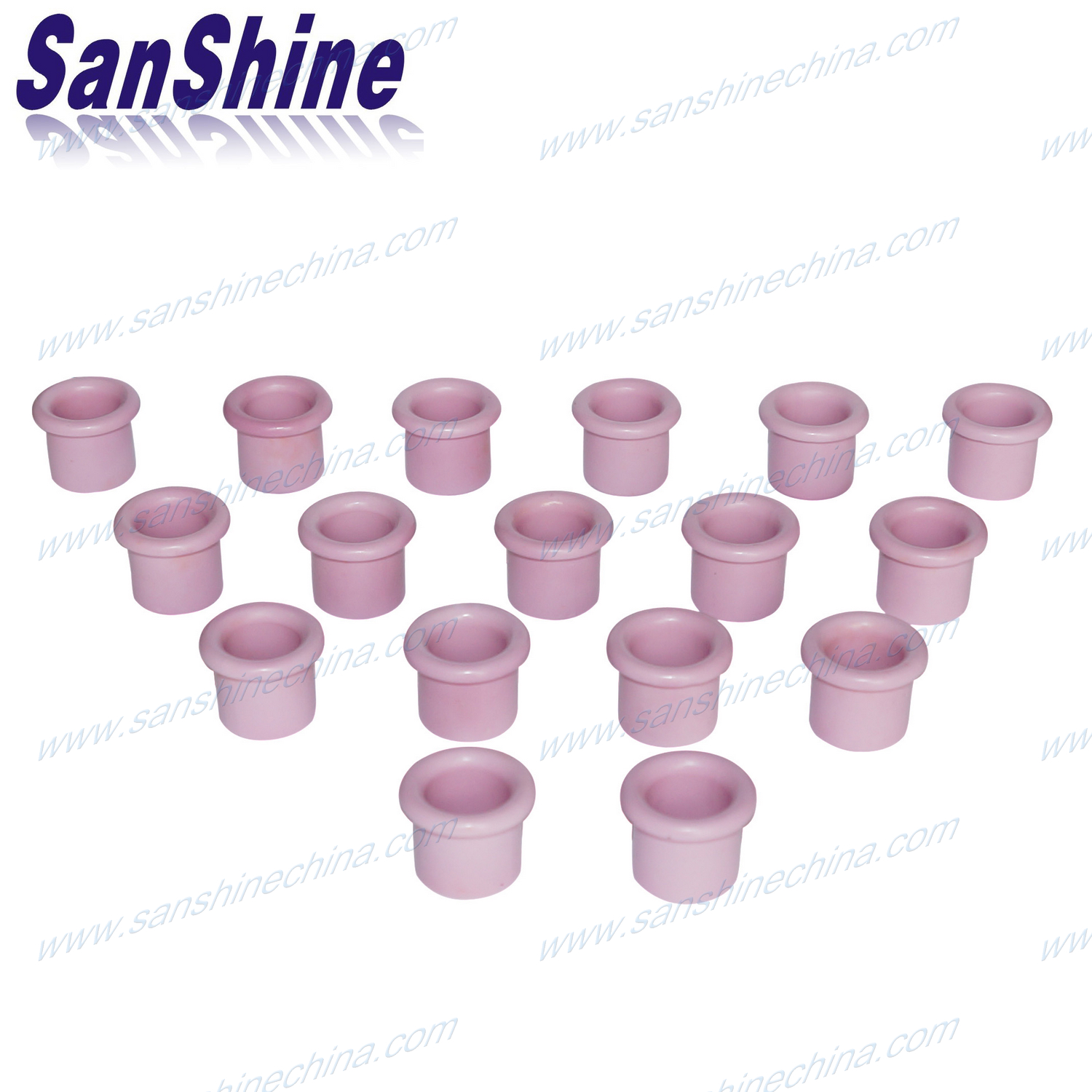

    • Ceramic eyelet

    • ID #:6

    Description :

    The ceramic eyelet(ceramic ring) is the most commonly used component for the
    wire passing(guiding), and it is used in the wire passing position of the coil winding machine
    and the textile machinery. Normally it is used for less demanding occasions. The
    shape, finish and the hardness of materials must be improved in order to reduce
    the friction because of the wire sliding in the surface of the ceramic rings. According
    to the requirements, the polish degree of porcelain eye can be regarded as
    roughness polishing, precision polishing and ultra-precision polishing.
    Features :
    1.The inside surface polish degree : Ra0.2~0.8.
    2.The material : 99% AI2O3 with density of 3.85.
    3.The hardness : HRa88.

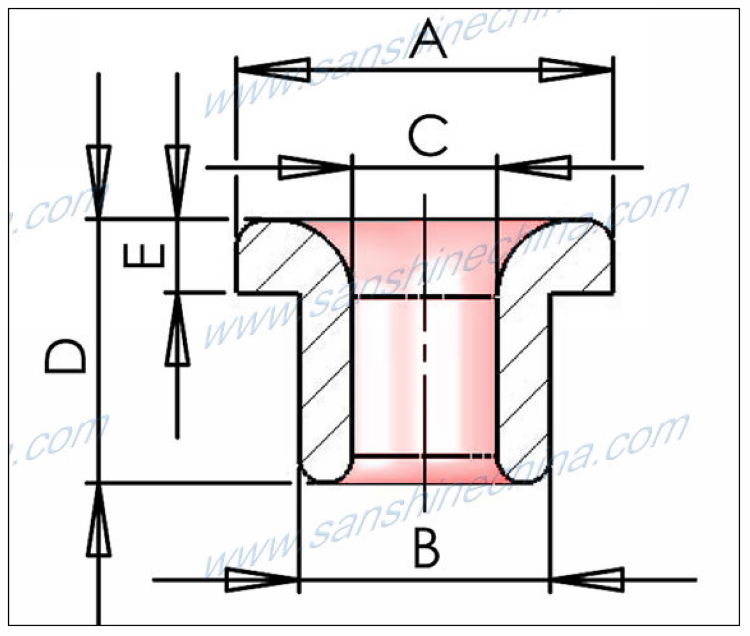

    Specification :
    measurement±0.05mm
    Part No. A(mm) B(mm) C(mm) D(mm) E(mm)
    CE001 4.4 2.8 1.2 2.8 1
    CE002 4.1 3 1.8 4.8 1
    CE003 4.1 3.1 1.6 4.2 1
    CE004 5.9 3.4 1.7 3.6 1
    CE005 4.6 3.5 2 3.3 1.2
    CE006 4.7 3.6 2.9 6.7 1.5
    CE007 7.2 3.8 2 4.2 1.5
    CE008 5.1 4 2.3 4.1 1
    CE009 6.8 4 2.5 4.1 1.5
    CE010 5 4 2.5 5 1
    CE011 6 4 2 8.1 1.2
    CE012 6.2 4.5 2 5 1.5
    CE013 6.7 4.4 3 8 1.5
    CE014 6.5 4.8 3 6.6 1.5
    CE015 6.5 4.8 3.2 4.5 1.5
    CE016 7.8 5.2 3 5.4 1.5
    CE017 6.6 5.3 3.2 7.8 1.5
    CE018 7.9 5.7 3.1 5.1 1.5
    CE019 8 5.8 3.4 4.9 2
    CE020 7.8 5.9 3.3 8 1.5
    CE021 8 5.9 3.3 6 2
    CE022 8 6 3 8 1.5
    CE023 8.6 6 3.5 9 2
    CE024 10.2 6.2 4 10.3 2
    CE025 10.5 6.3 3 10.5 2
    CE026 7.9 6.3 3.4 16.5 1.2
    CE027 9.5 6.7 3.9 8.2 2
    CE028 9.5 7 3.9 8.9 2
    CE029 10 7.2 4.7 8.7 1.5
    CE030 9.9 7.4 4 7 2.5
    CE031 10 7.4 4.7 8 2
    CE032 10 7.5 5 8 2
    CE033 9.3 7.5 5.5 10 2
    CE034 10.6 7.6 4.8 9 2
    CE035 10 7.8 4 7 2
    CE036 10 7.8 4.5 8 2
    CE037 10.2 8 3.6 9 2
    CE038 10 8 4.6 6 2
    CE039 11 8.2 5 10 2
    CE040 10.4 8.4 4.6 10.1 2
    CE041 12.1 8.8 5.4 7 2
    CE042 11 9 6 7 1.2
    CE043 12 9 5.4 8.7 1.8
    CE044 14.4 9.7 5.4 25 3
    CE045 14.4 9.7 5.6 40 3
    CE046 11.9 9.8 6.9 8.2 2
    CE047 12 10 7 11 2
    CE048 14.1 10 6.5 9.6 3
    CE049 14.2 10 5 20 4
    CE050 14.9 11.6 7.3 10 3
    CE051 15.6 12.5 8.5 10 3
    CE052 23 20 8 20 5
