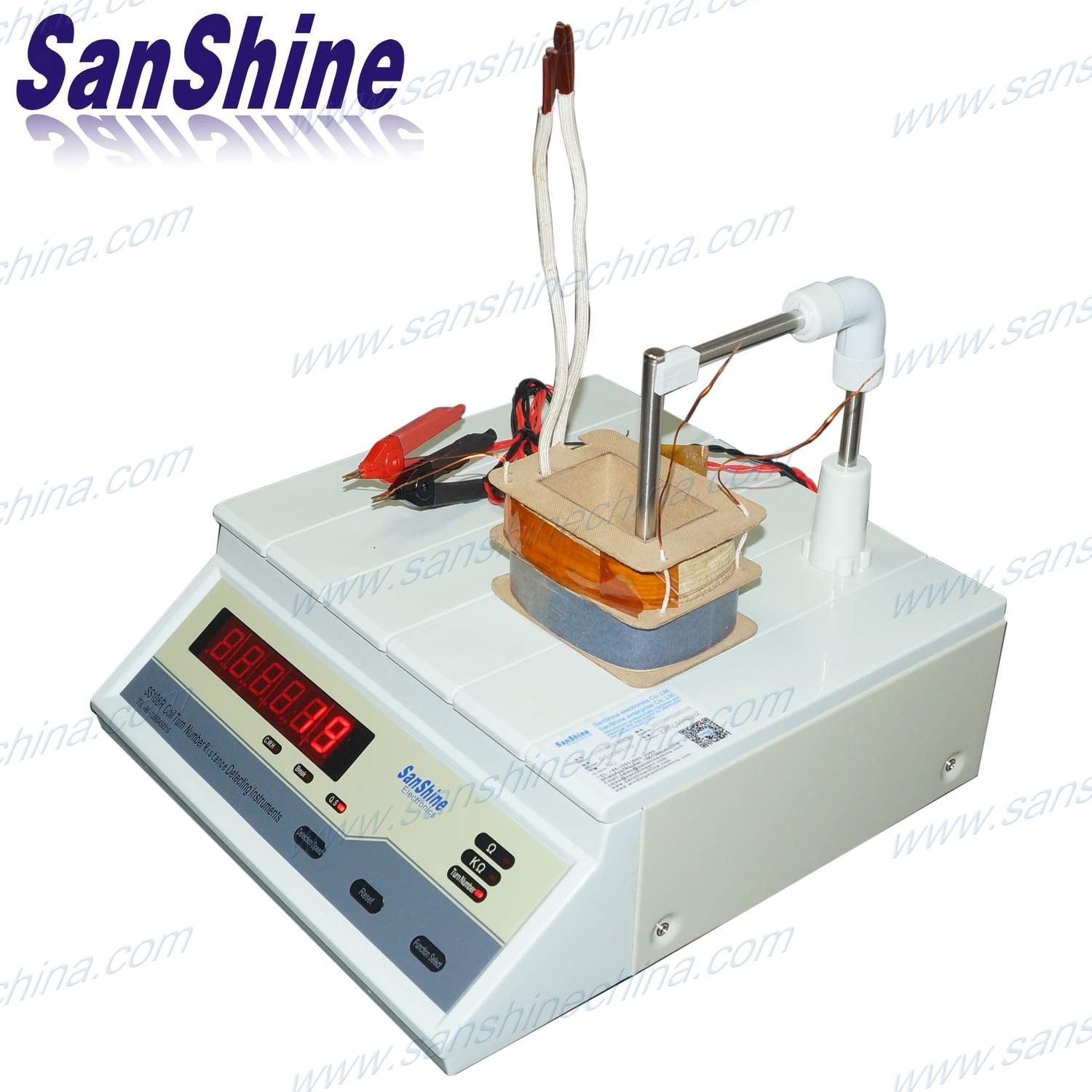

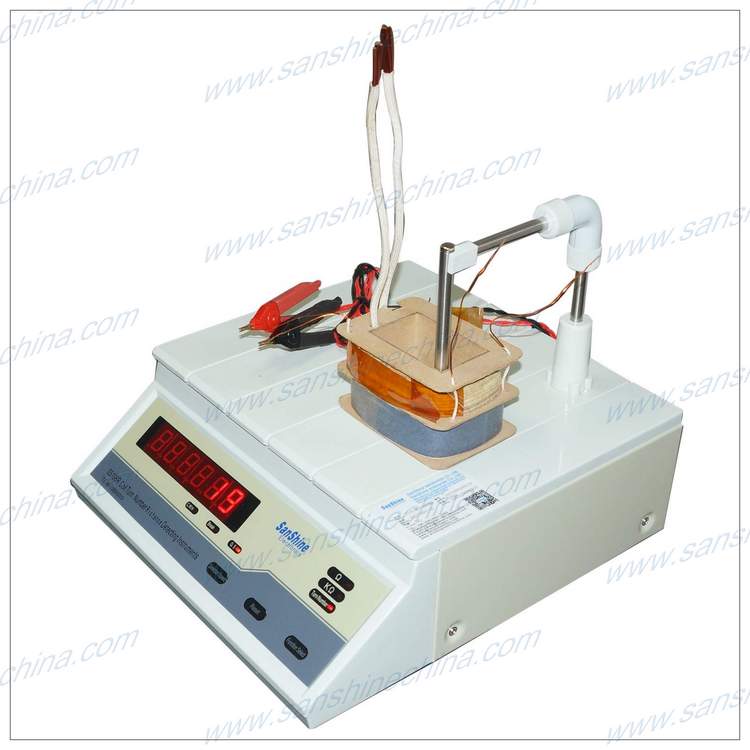

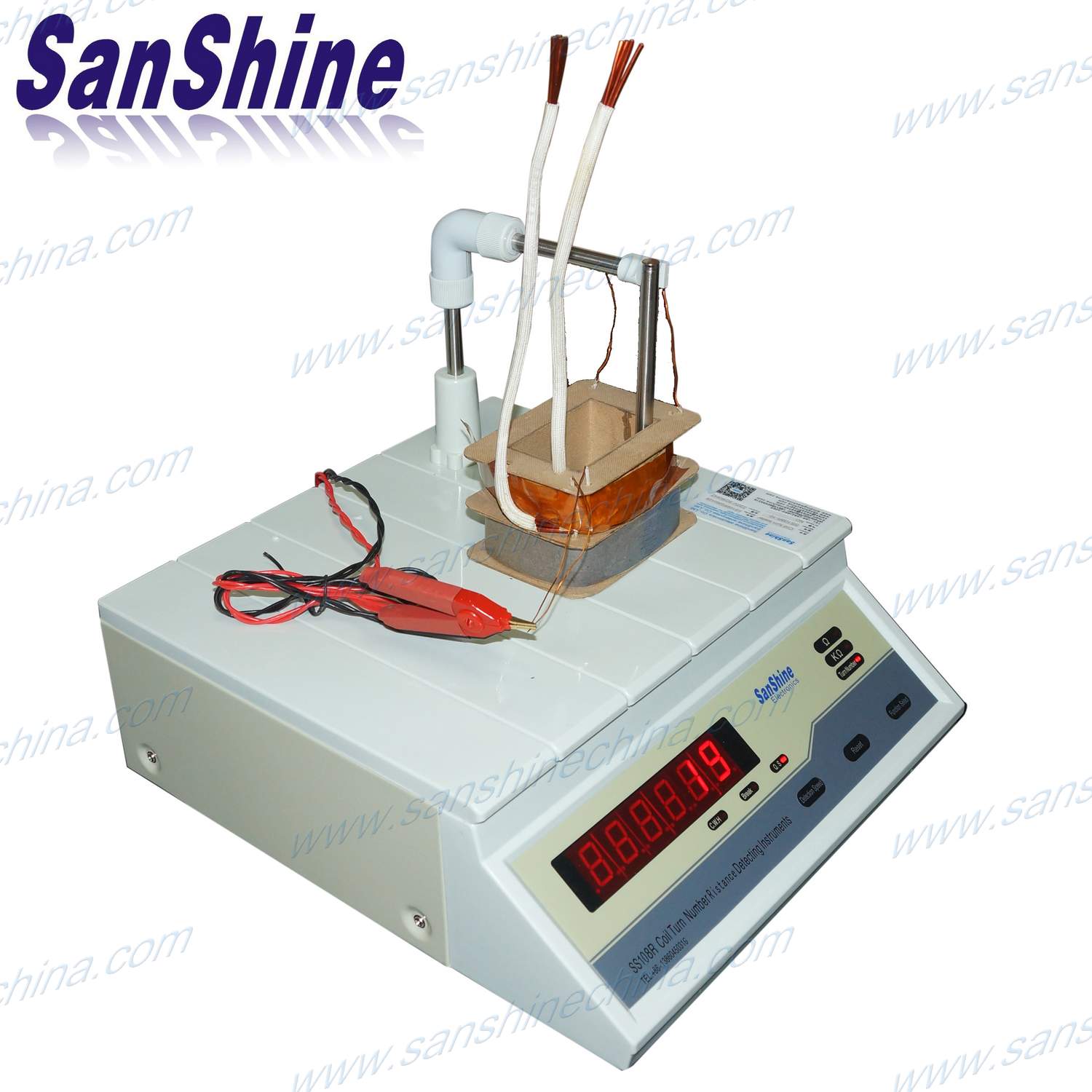

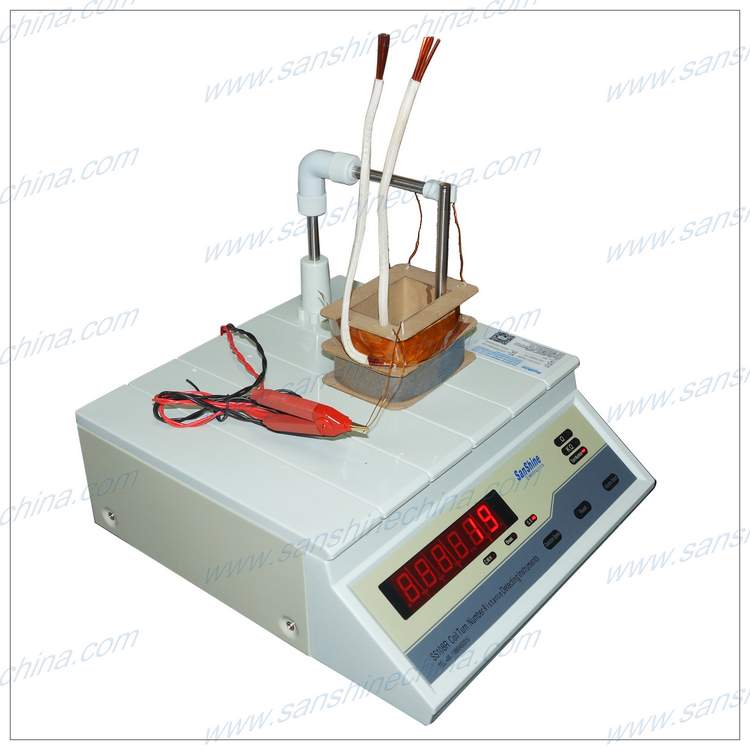

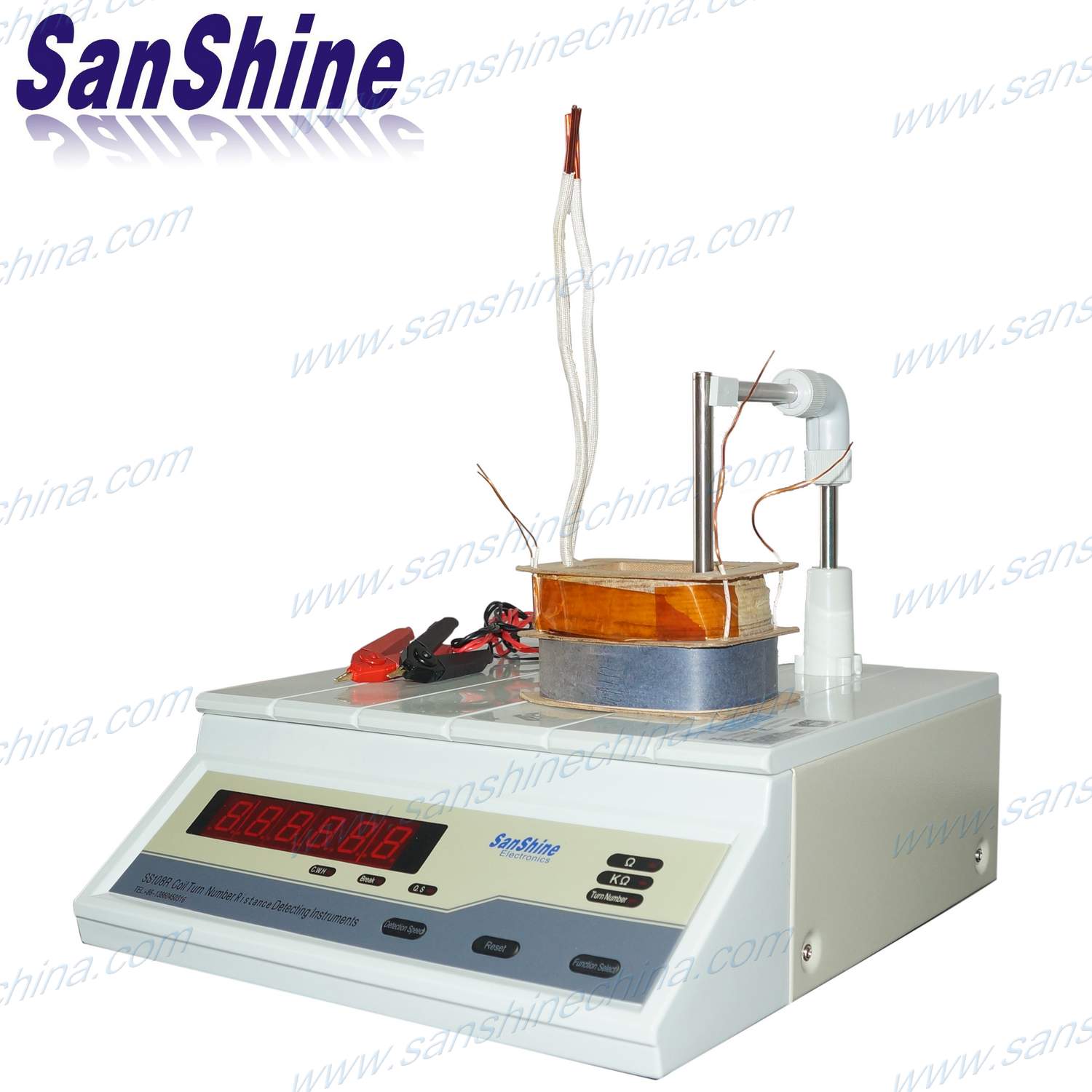

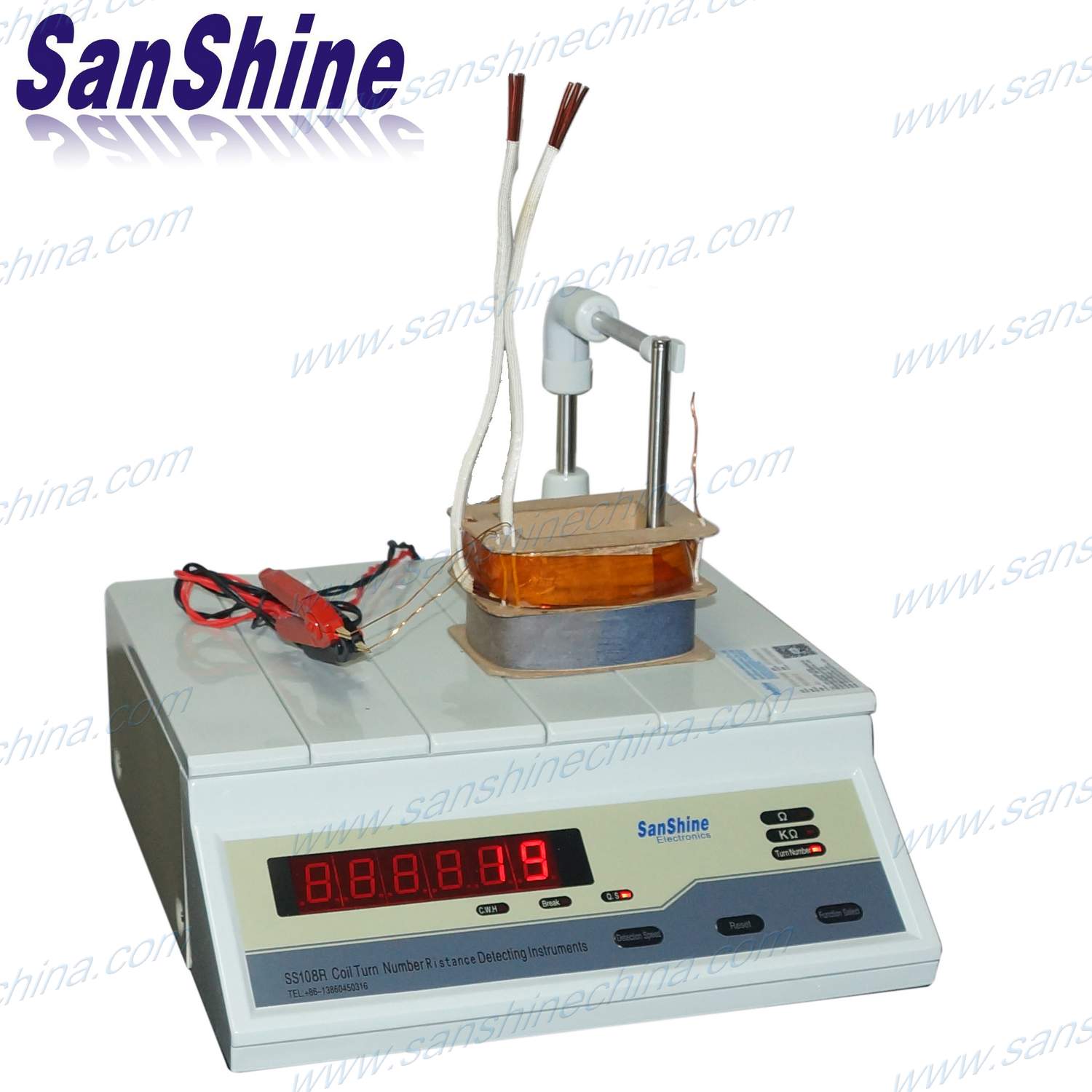

SS108R transformer coil turns and resistance tester
Product 1/6  Bobbin winding coil turns tester  large single three phase electric transformer generator motor reactor pump winding turn analyser
  • SS108R transformer coil turns and resistance tester
  • SS108R transformer coil turns and resistance tester
  • SS108R transformer coil turns and resistance tester
  • SS108R transformer coil turns and resistance tester
  • SS108R transformer coil turns and resistance tester


    Product name : Transformer generator motor reactor pump Coil turns tester (SS108A series)


    Description :

    The transformer generator motor reactor pump Coil turns tester (SS108A series) are used for testing the turns number of the various  big winding coils. So that can check and make sure the coil turns are correct after winding processing. This coil turns tester(SS108A series) are named winding coil turns measuring equipment also which used for testing the turns number of the big winding coils. Such as: Generator winding turns, big transformer winding turns, big mortor winding turns, big inductor winding turns, big reactor coil turns, big pump motor coil turns, etc..

    Feature :

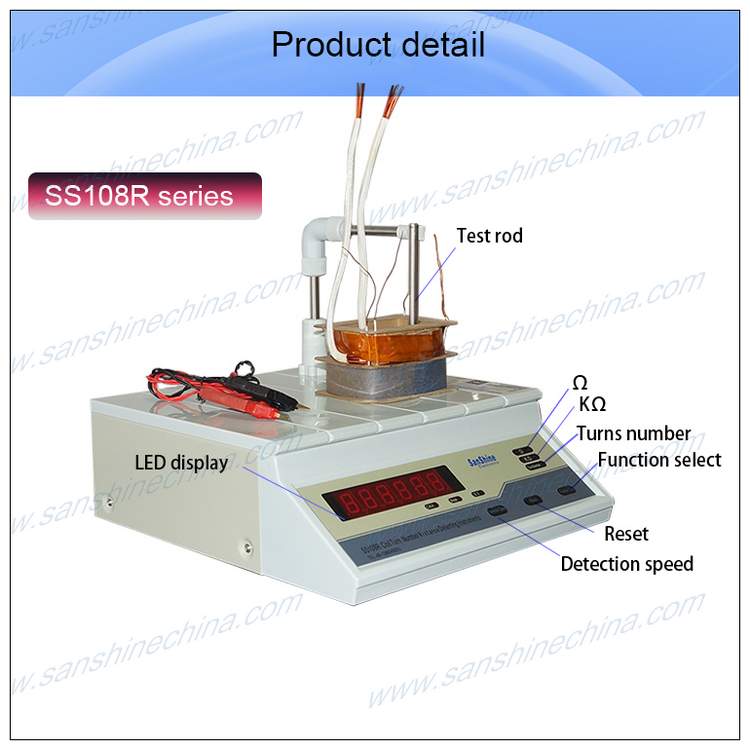

    1. CPU control and digital display.

    2. Operation easy, measuring automatically, no need switch the measurment range.

    3. Accuracy: 0.2%.

    4. 5 digital counts display.

    Specification :

    ModelSS108A-4/150SS108A-6/150SS108A-10/150SS108A-10/250SS108A-10/350SS108A-10/450SS108A-10/550SS108A-X
    Testing  rod size of testing platform(rod diameter*rod height* rode center  distance mm)∅4*H150*130∅6*H150*130∅10*H150*130∅10*H250*180∅10*H350*180∅10*H450*180∅10*H550*180speciall  testing platform size can be customized
    Coil inside  diameter> 4mm> 6mm> 10mm> 10mm> 10mm> 10m> 10mm
    Coil outside  diameter< 120mm< 170mm
    Coil height< 110mm< 210mm< 310mm< 410mm< 510mm
    Coil turns  range0 ~ 60000T
    Testing  accuracy0~300T± 0T,  300~500T± 1T, 500~20000T± 0.2%, 20000~60000± 0.5%
    Testing  speedfast 3  Measurements /s, slow 1.2 Mea. /s
    Weightabout 11KG  depend on different testing platform
    Tester  measurement370*220*  110mm
