Semiautomatic toroidal coil winding machine (SS200)
Product 3/12  Automatic toroid coil winding machine  Amorphous ribbon toroidal core automatic welding winding machine (SS-RTC series)  Belt type automatic toroid coil winding machine (SS900B series)
  • Semiautomatic toroidal coil winding machine (SS200)
  • Semiautomatic toroidal coil winding machine (SS200)
  • Semiautomatic toroidal coil winding machine (SS200)
  • Semiautomatic toroidal coil winding machine (SS200)

    Video: SS200 customized semiautomatic toroidal coil winder

    Description :

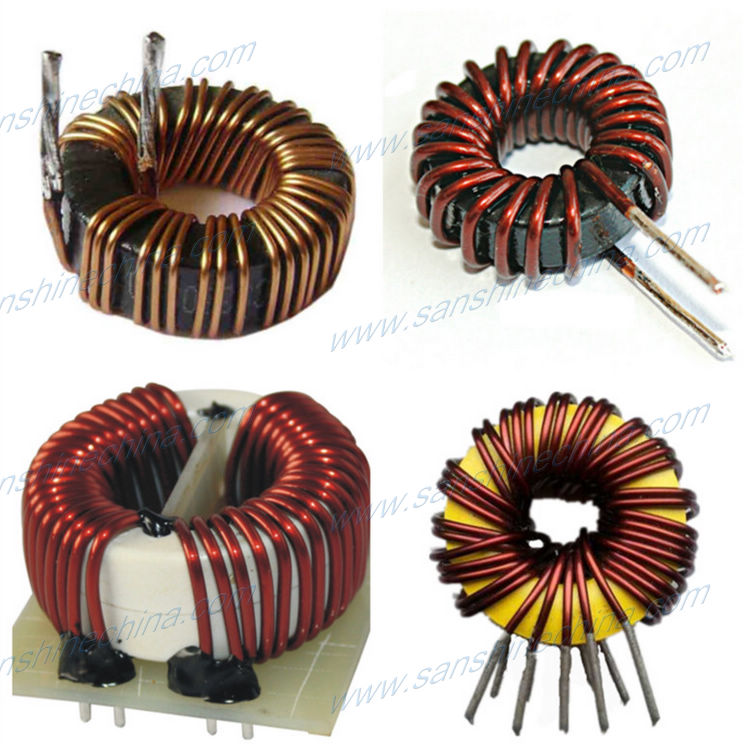

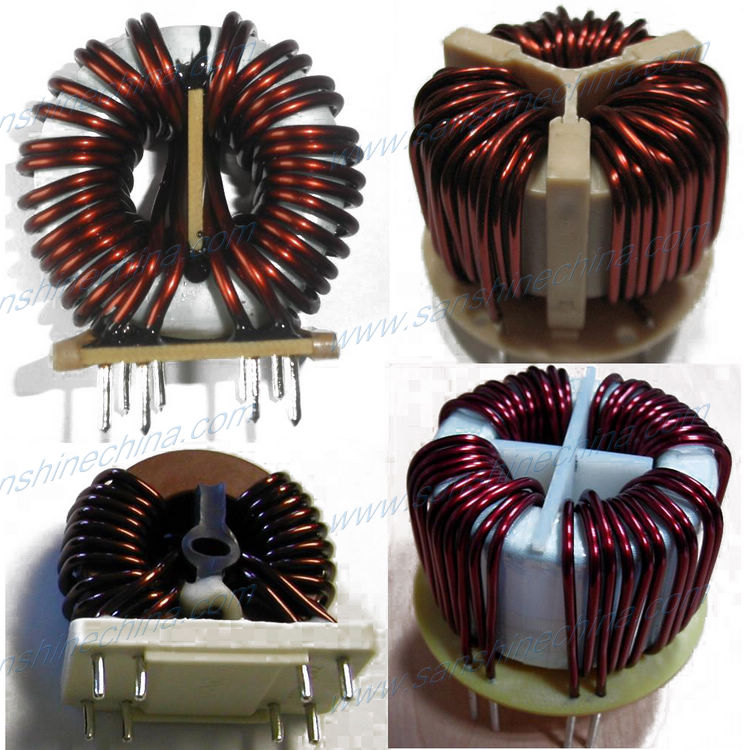

    This (SS200) Hook type semiautomatic toroid coil winding machine is one simply semiautomatic winder which used for very thick wire of toroid coil, and very thick wire with big toroid core of coil.  Like as some big power factor corrector inductos, power inductors, UPS inductor, And wire insulation film can be protected in good.
    The SS200 winder is customized by toroid coil of dimensions.
    Features :
    1. Easy to operate.
    2. Need cut the required wire length before winding.
    3. Easy to switch the winding fixture for different size core.
    4. Operation with compressed air.
    5. Spread wire by manual.
    Specification :
    Wire diameter : 0.3 ~ 5.0mm
    Min. finished coil inside diameter : 8mm (Will be different by hook size. )
    Finished coil outside diameter : 25~300mm(The SS200 winder is customized by toroid coil of dimensions.)
    Winding type : By Hook with the air compressor.
    Air source : 0.7Mpa .
    How to select the best suited automatic toroid coil winding machine for your toroid coil?
    Tell us your toroidal coil of data as below please :

    1. toroid coil outside diameter after winding?
    2. toroid coil inside diameter after winding?
    3. toroid coil height after winding?
    4. the copper wire diameter ?
