Small ferrite core air gap water type grinding machine (SS-GR03)
Product 2/3  Ferrite core air gap grinding machine  Small ferrite core air gap water type grinding machine (SS-GR04)  Small ferrite core air gap grinding machine (SS-GR02)
  • Small ferrite core air gap water type grinding machine (SS-GR03)
  • Small ferrite core air gap water type grinding machine (SS-GR03)
  • Small ferrite core air gap water type grinding machine (SS-GR03)
  • Small ferrite core air gap water type grinding machine (SS-GR03)

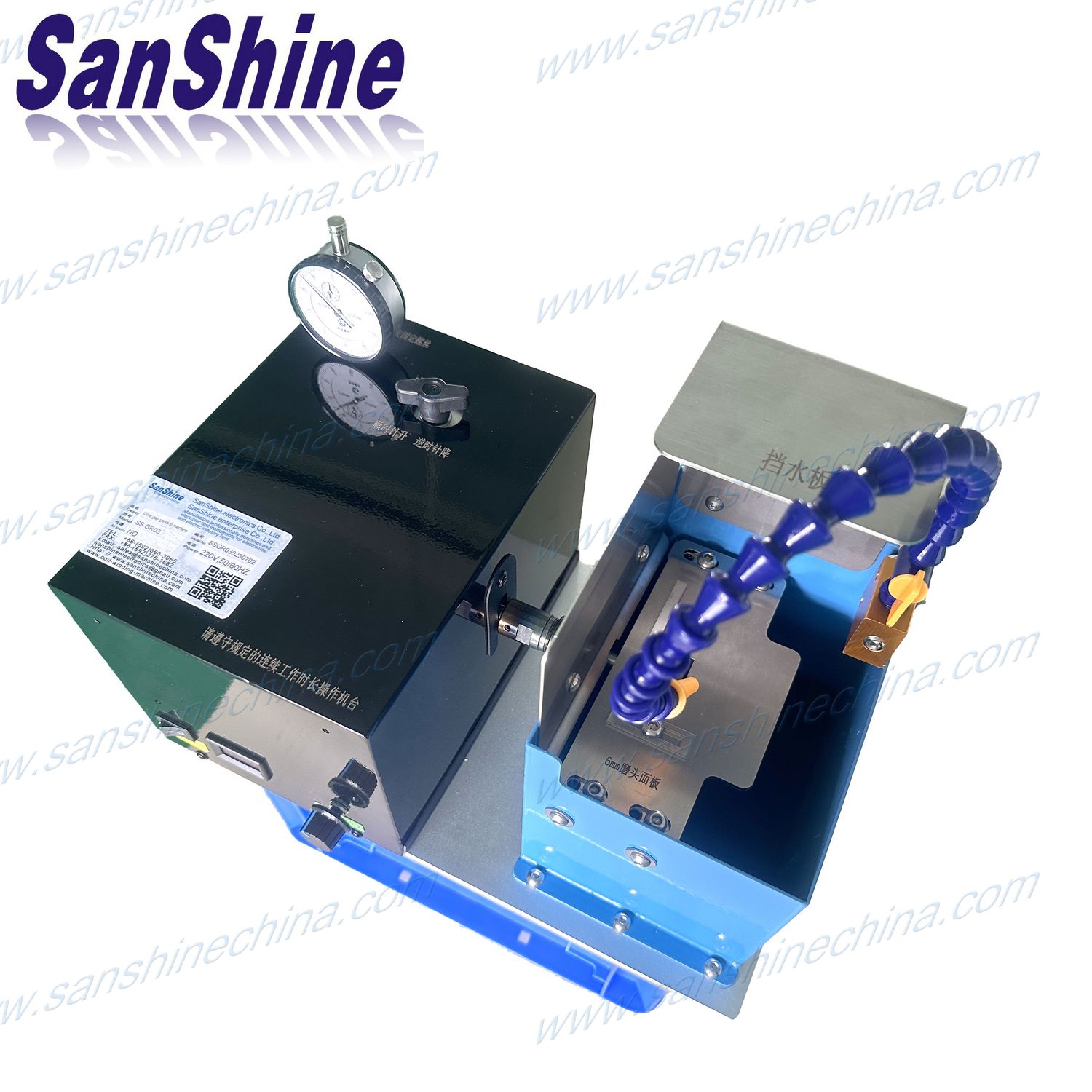

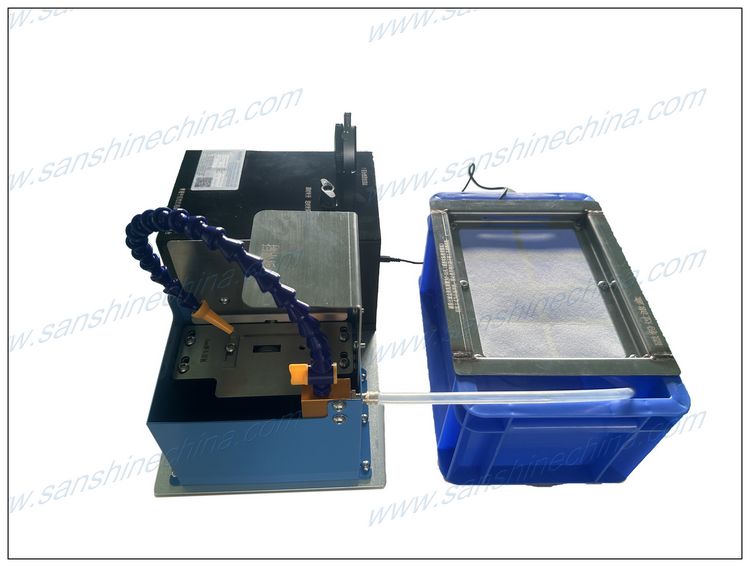

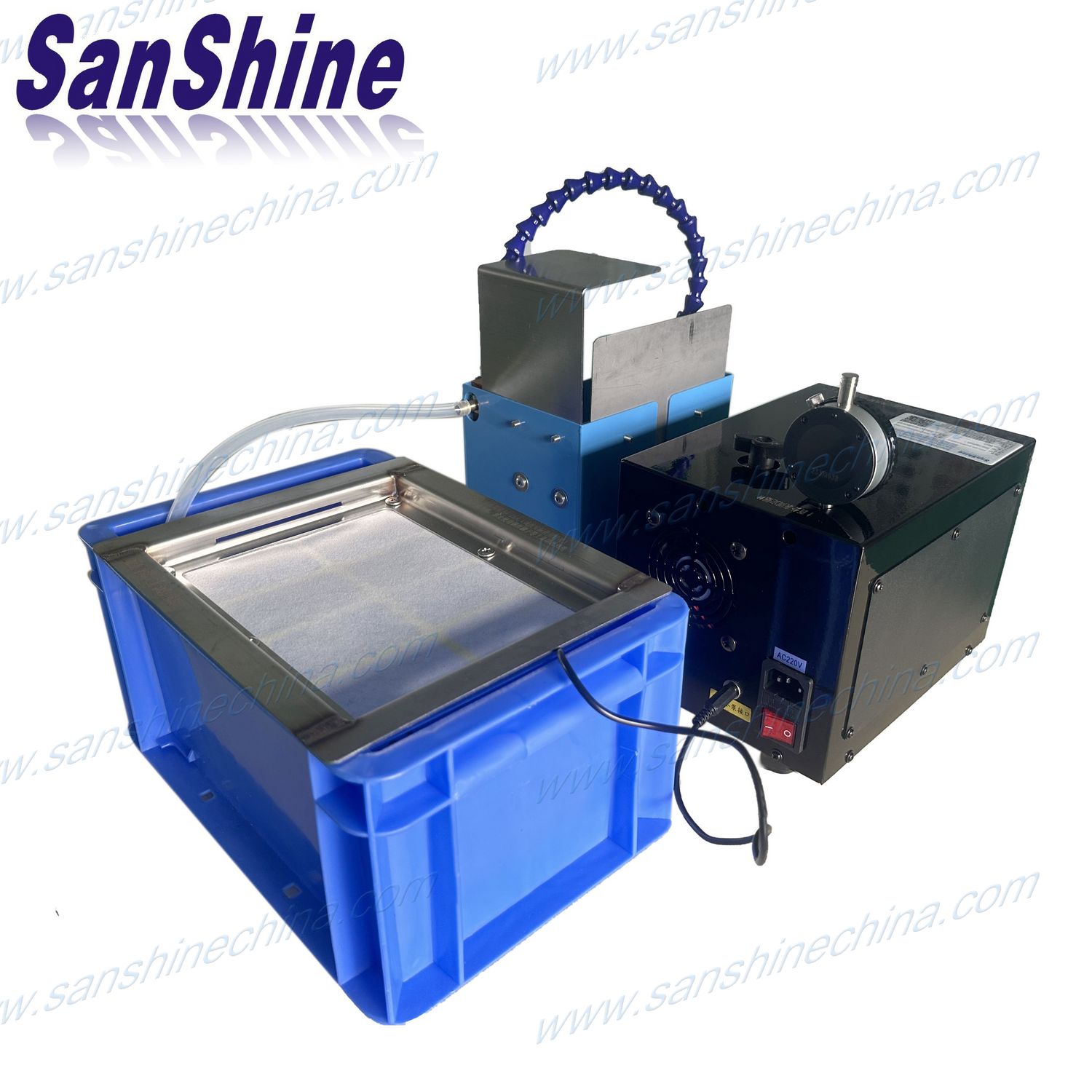

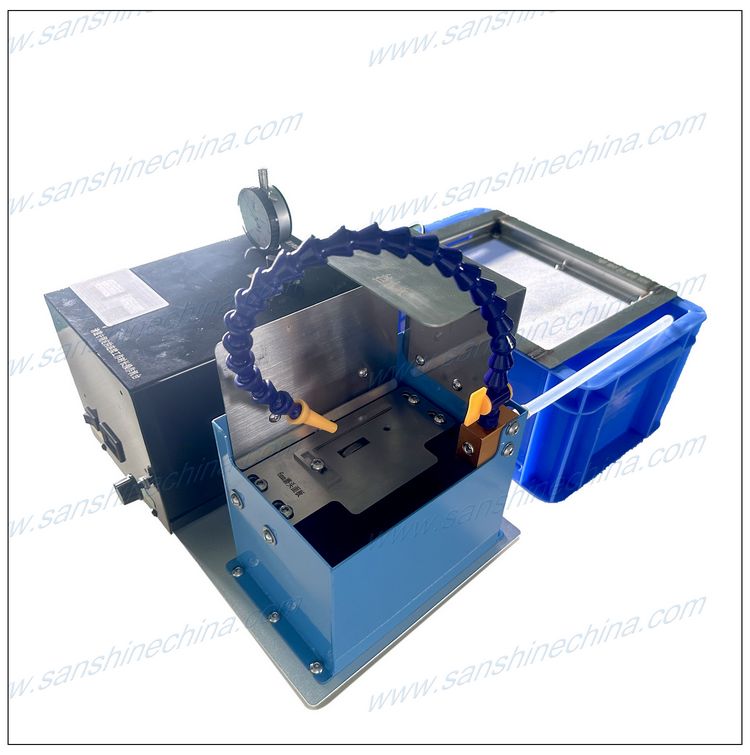

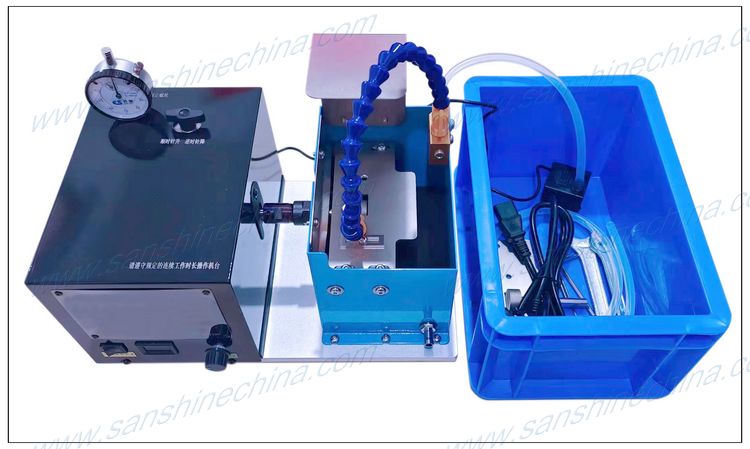

    Product name : Small ferrite core air gap water type grinding machine (SS-GR03)





    Description :

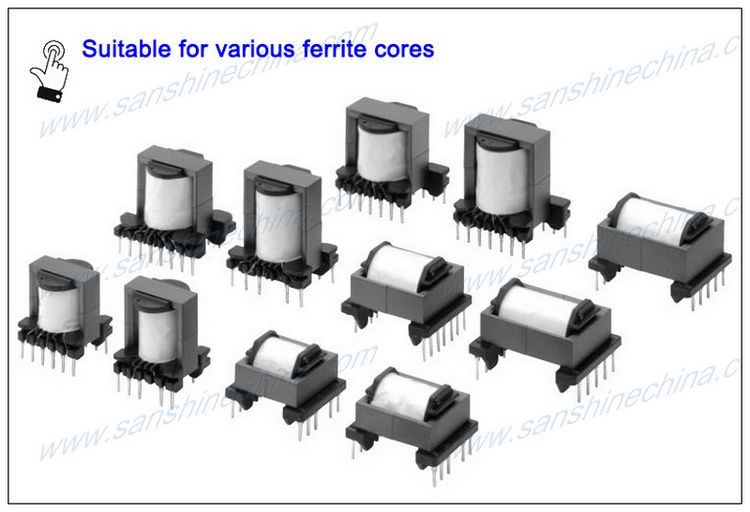

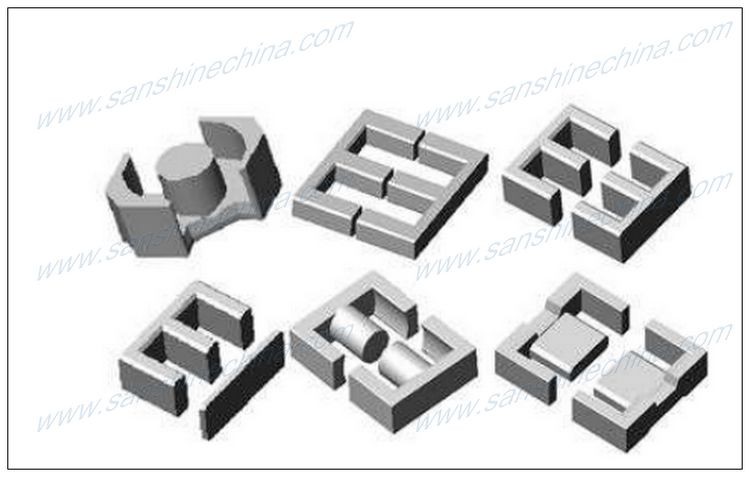

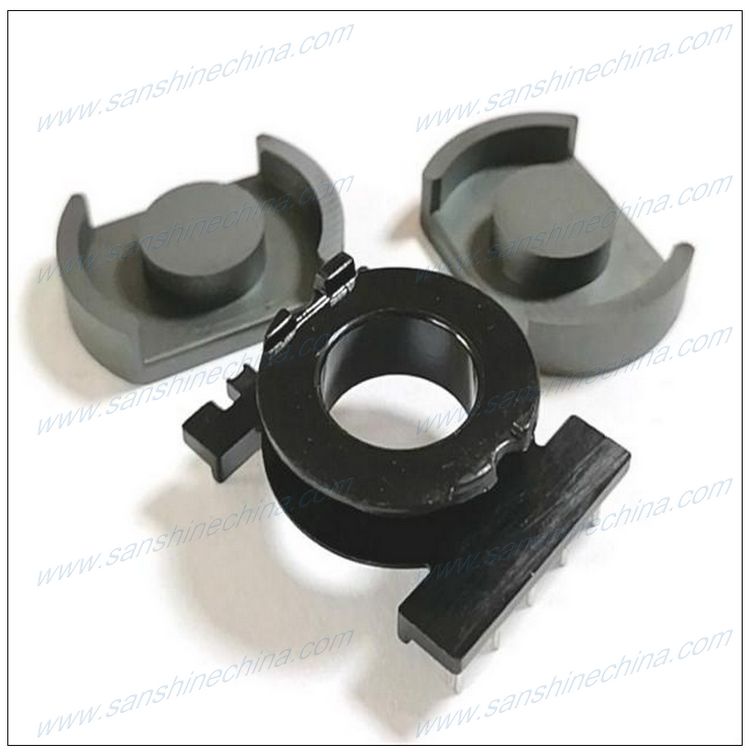

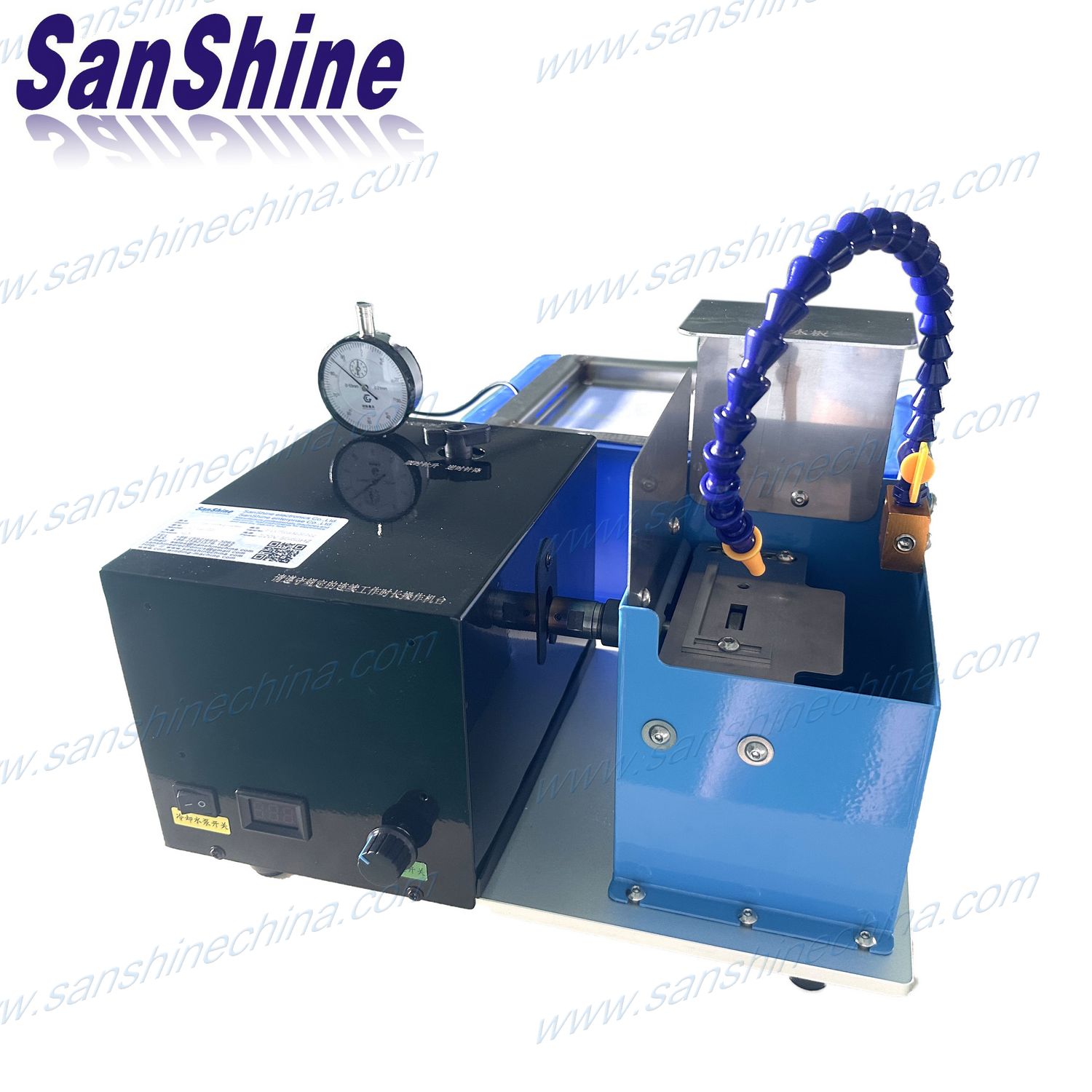

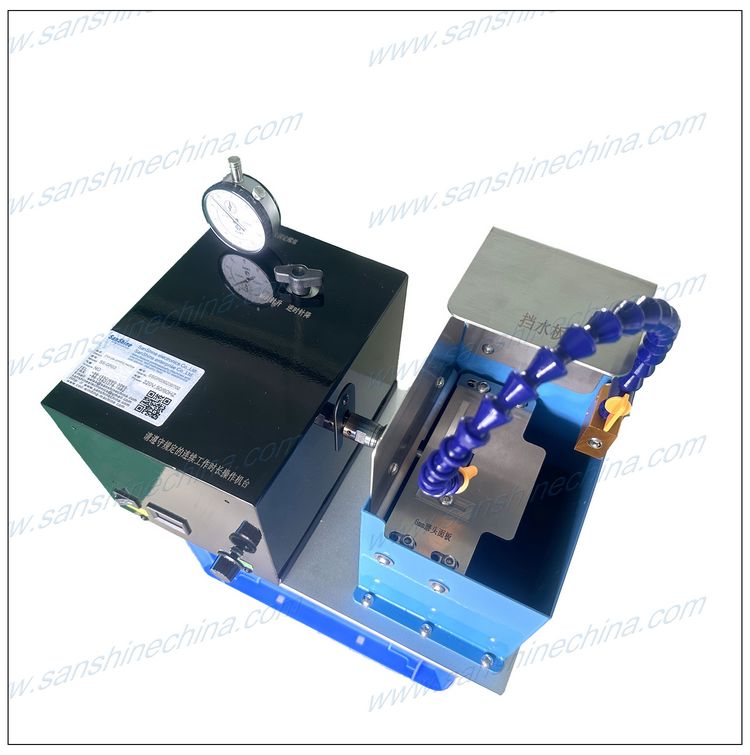

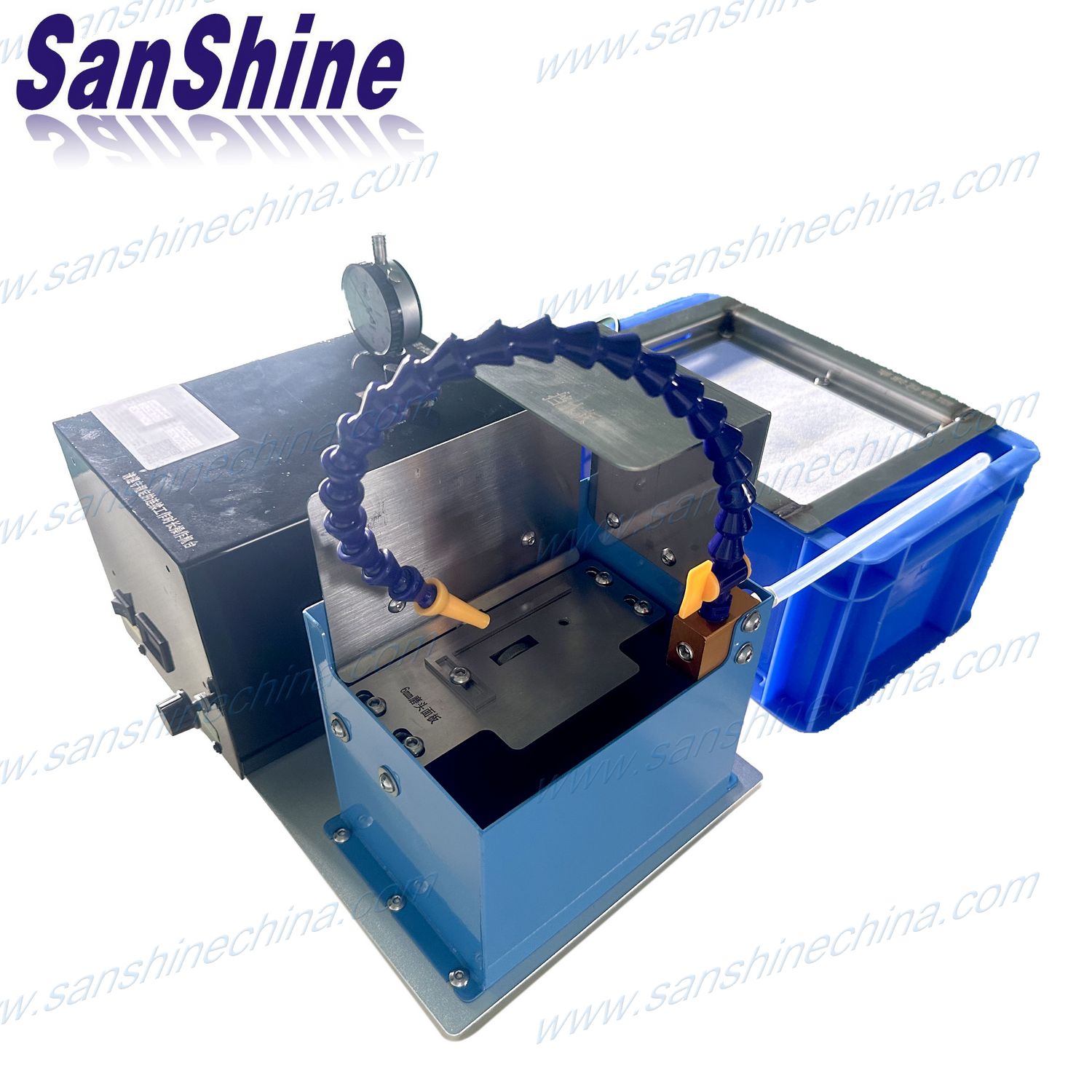

    This small ferrite core air gap water type grinding machine (SS-GR03) is used for grinding the air gap of small ferrite cores of transformer and inductor. Like as the EE and ER and PQ series cores. It adopts water to clean the core during grinding processing. This machine is only suited for the engineering RD room with a few output quantity. It is one manual machine.

    Feature :

    Key featuresSS-GR02SS-GR03SS-GR04
    Grinding wayManuallly holding core one by oneManuallly holding core one by oneManuallly holding core one by one
    Grinding depth of core≤4.5mm≤4.5mm≤4.5mm
    Grinding air gap accuracy0.01~0.03mm0.01~0.03mm0.01~0.03mm
    Standard grinding wheel width6 or 12mm6 or 12mm6 or 12mm
    The height of grinding wheelAdjustable and display with dial indicatorAdjustable and display with dial indicatorAdjustable and display with dial indicator
    Grinding motor power680W680W1.5KW
    Grinding motor typeDCDC3 Phases
    Grinding motor speed adjustableKnobKnobFrequency converter
    Grinding wheel speedAdjustable Max. 7000RPMAdjustable Max. 7000RPMAdjustable Max. 24000RPM
    Grinding motor coolingNoneNoneYes, by water or cooling oil of car
    Core coolingNoneYesYes
    Water pumpNoneDC 12VDC 12V
    Water boxNoneYesYes
    Grinded dust collection wayDC 12V exhaust fan with bagfilting netmovable magnetic rolls box
    Machine usageRD roomRD roomProduction
    Output capacitiyLowLowSmall-Medium
    Grinding motor working limited timeNeed be break < 1 hour workedNeed be break < 1 hour workedContinually
    Machine power sourceSingle phase 220V, 50/60HzSingle phase 220V, 50/60HzSingle phase 220V, 50/60Hz
    Machine net weight8Kgs8.5Kgs47Kgs
    Machine sizes (mm)L360*W250*Height 190L360*W250*Height (190+150)L520*W420*Height 450
