Tungsten carbide motor coil winding nozzle
Product 1/3  Coil winding nozzle  Tungsten carbide coil winding nozzle

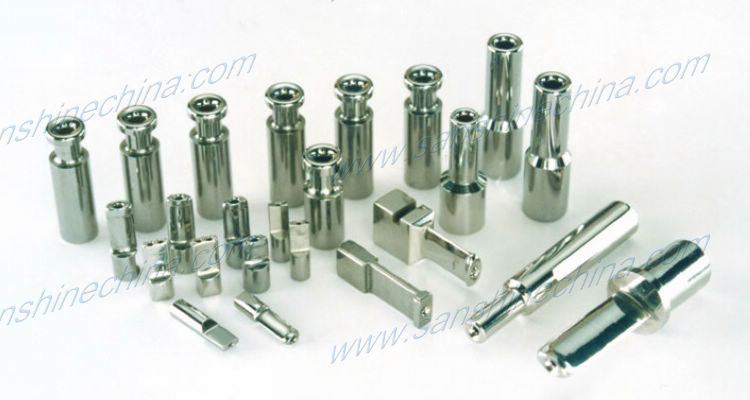

  • Tungsten carbide motor coil winding nozzle
  • Tungsten carbide motor coil winding nozzle

    Description :

    The tungsten carbide motor coil winding nozzle used in coil winding machines to guide the wire to wind on the stator,on the rotor,on the bobbin,on the pins. It is best choice for winding motors,generator,reactor,etc..
    Features :
    1.High Wear Resistance
    This is assured by the choice of materials for wear elements possessing a minimum hardness in excess of Vickers 1,000 (HRC 70).
    2.Scratch-Proofing
    Eliminate wire insulation film damage, low friction resistance, stable wire tension. the wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of 2 – 4 micro inches Ra or better, material permit.
    3.Straightness and Stiffness
    Straightness and Stiffness are defined by the wire exit being concentric and inflexible with respect to the nozzle locating ?. In plain terms, the wire should exit from the nozzle concentric to the locating ? to within 0.02 mm, with or without load. A geometric characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
    4.Precise Exit Radii
    Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital measurement, shown at upper right.
    Specification :

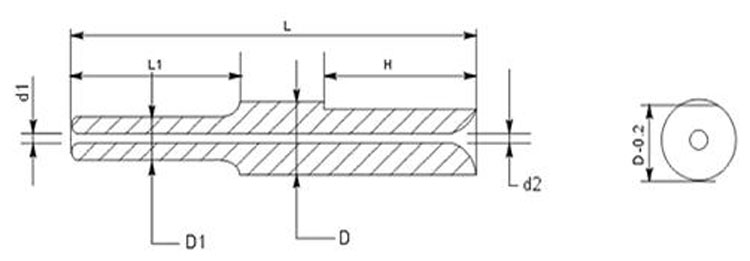

    Be made according to dimensions drawing.
    Measurements :
    Customize available by requested in dimensions drawing, outside diameter is governed by nozzle wall thickness. The measurements drawing denpend on confirm your nozzles measurements according to your winding machine and coil products or your nozzle samples.
