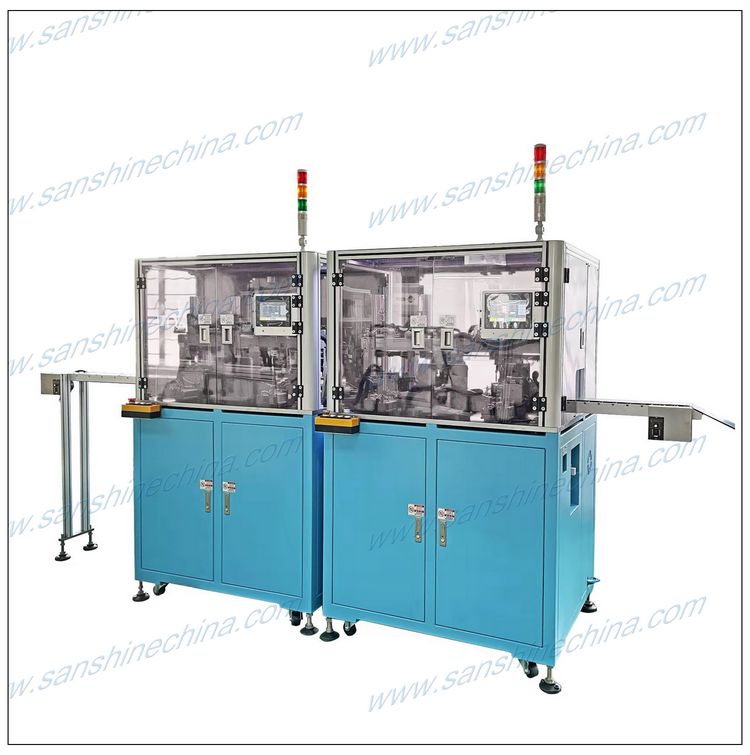

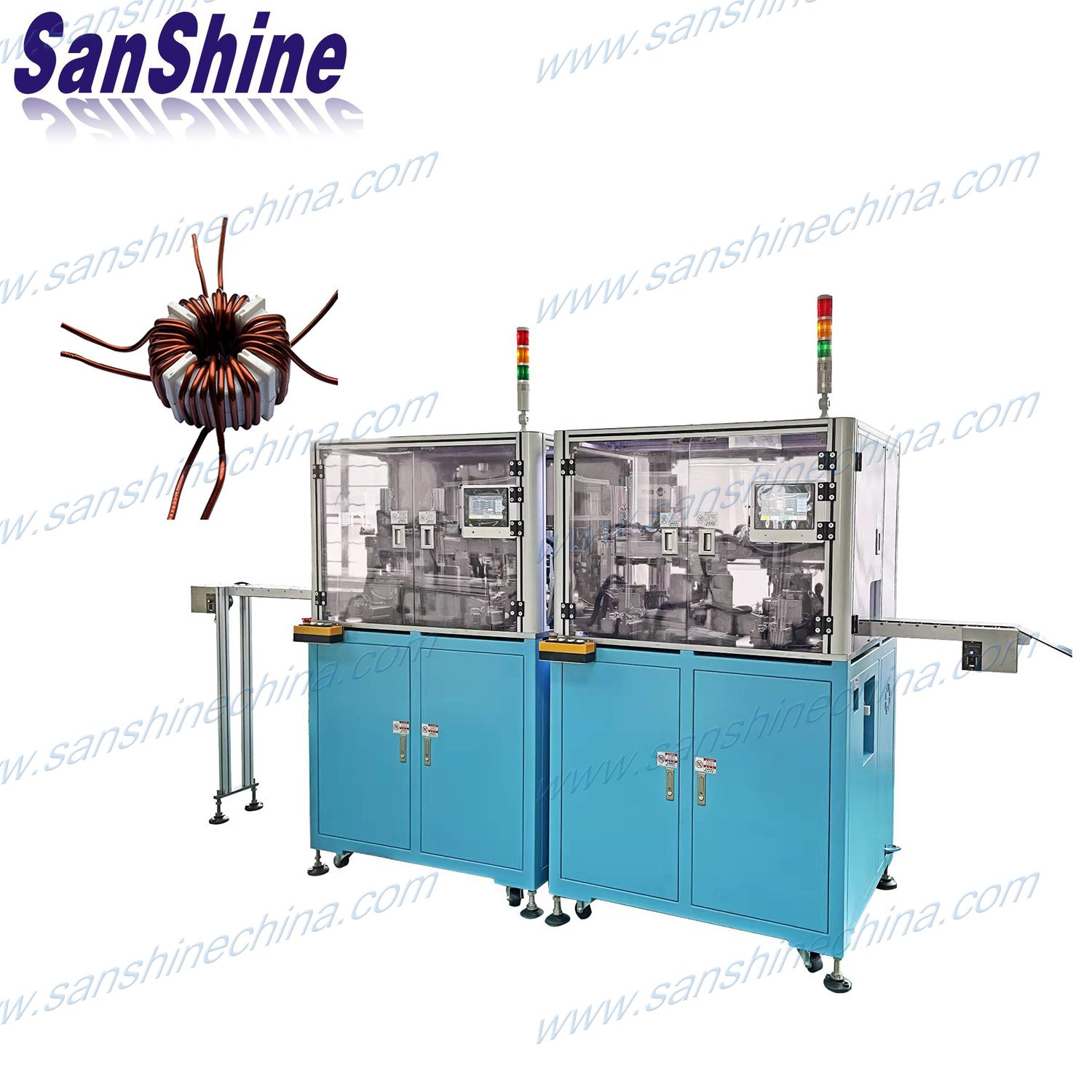

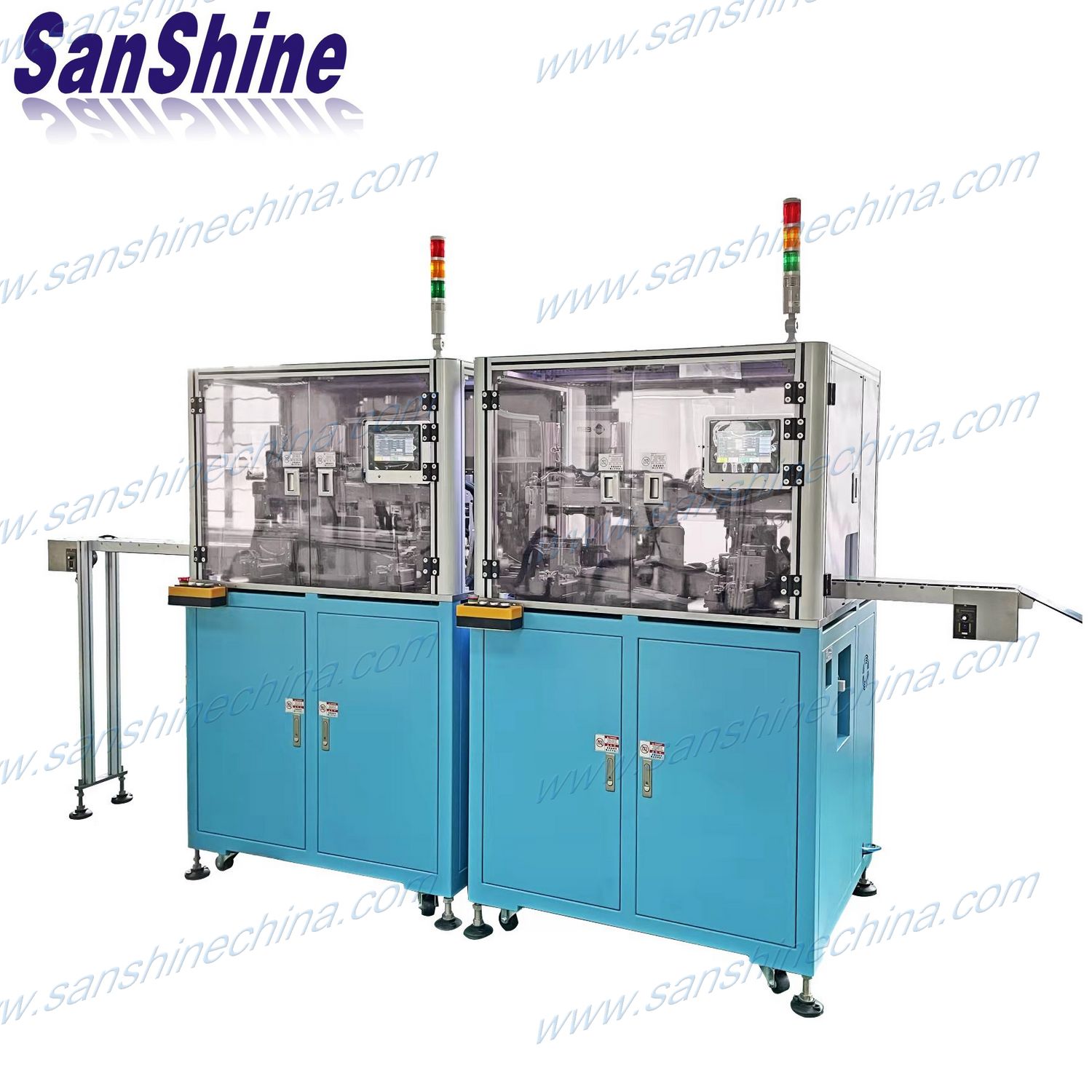

Product name: Fully automatic three four phase toroid filter choke winding machine (SS-HK04)

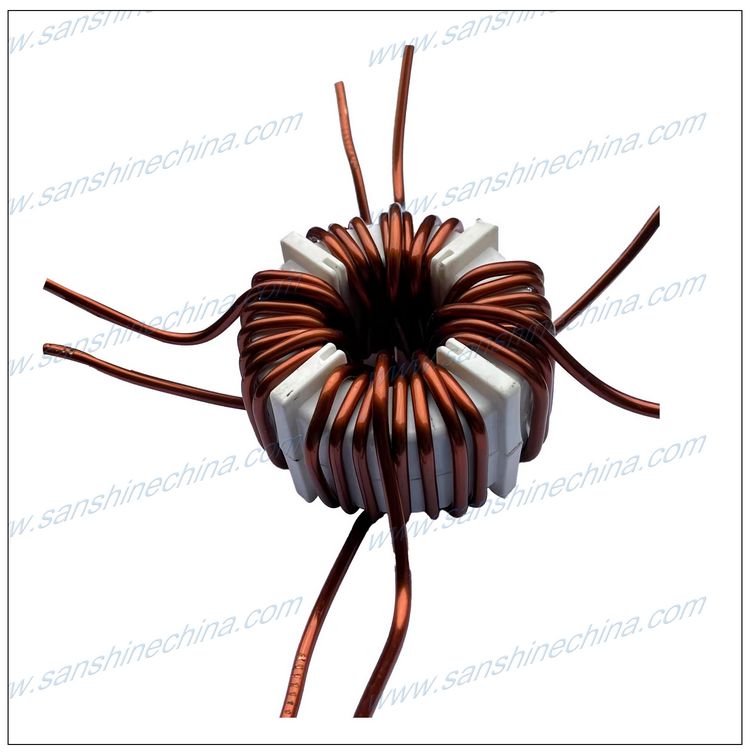

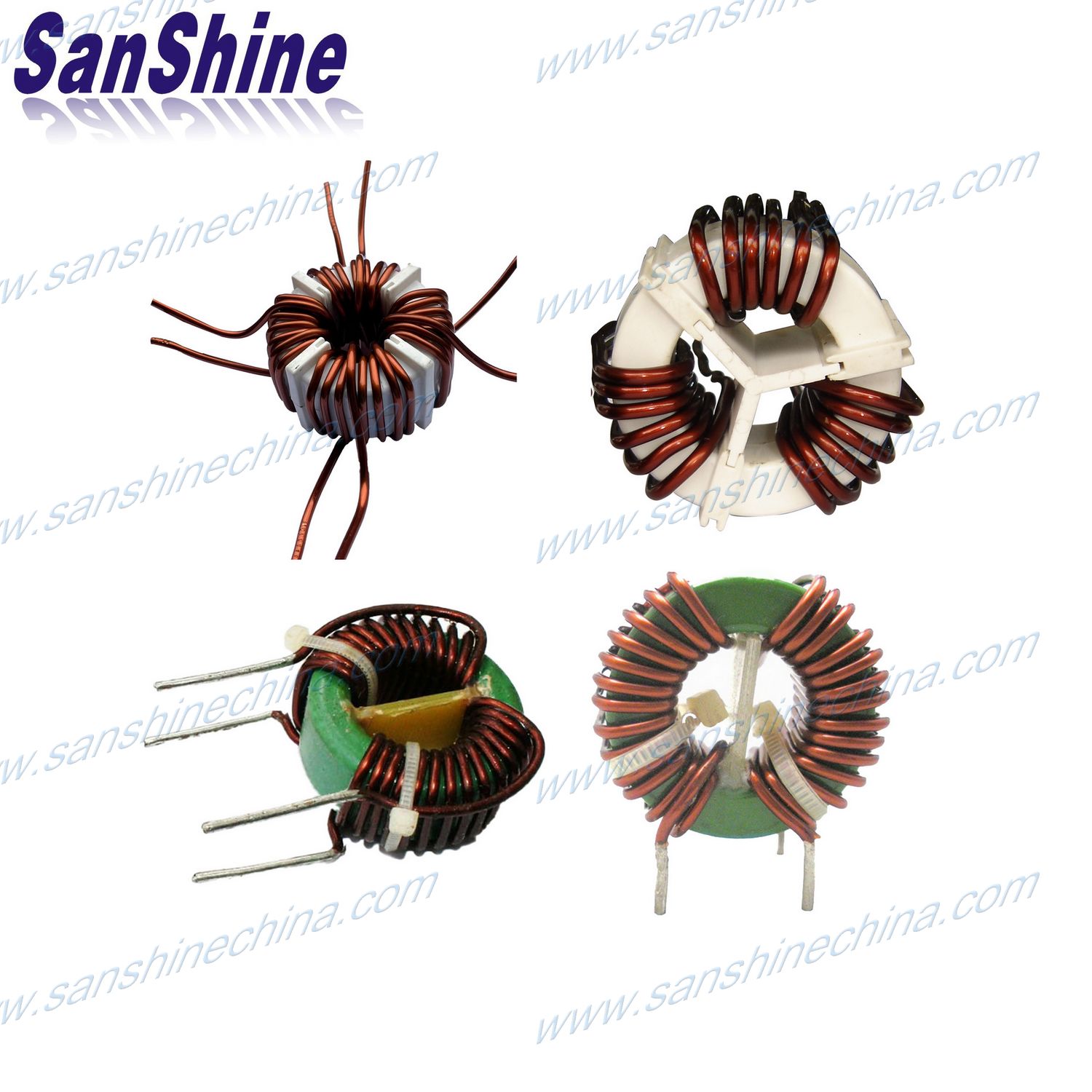

Finished product after winding
The fully automatic three four phase toroid filter choke winding machine (SS-HK04) is one precise programmable coil winder. It adopts the precise multi axis controlling system with the precise strong servo motors and the strong nylon hook to wind the enamel wire. Its winding fixtures be designed and made according to user's toroidal coil size and wire diameter. The fully automatic three four phase toroid filter choke winding machine (SS-HK04) has four winding stations, so four stations can wind the three four phase toroid filter inductor choke coils in cycled and fastly. This fully automatic toroid coil winding machine is used for winding toroid coils of the very thick wire and very heavy wire with big toroid core without operator. Like as some filter inductor coil, three four phase EMI filter toroid coil, three four phase EMC filter toroid coils, three four phase toroid choke, three four phase big power toroidal factor corrector inductor, three four phase toroid power inductors, three four phase UPS toroidal inductor. The fully automatic three four phase toroid filter choke winding machine (SS-HK04) also be named three phase four line EMC EMI filter coil winding machine. The fully automatic three four phase toroid filter choke winding machine (SS-HK04) can protect the wire insulation film in good.
1. Porgrammable and operation with the touching screen, Easy to operate.
2. The machine feeds the request length enamel wire and cuts automatically, No need cut and feed the required wire length before winding by manual.
3. The machine feeds and loads the toroid core automatically, and download the finished toroid coils automatically. No need operator to do.
4. The machine winds the toroid coils automatically. No need operator to do.
5. Easy to change the winding fixture for different size core.
|Winding spindle numbers||2||4|
|Center distance between spindles||500mm||500mm|
|Max. outside diameter of toroid core||60mm||80mm|
|Min inner diameter of toroid core||10mm depend on the wire diameter and turns hook size,thick wire need big size hook.||30mm depend on the wire diameter and turns hook size,thick wire need big size hook.|
|Height of toroid core||10~40mm||10~40mm|
|Wire diameter (only can wind single wire)||0.5~2.6mm||0.5~2.6mm|
|Suitable wire length||100~1800mm||100~1800mm|
|Winding speed||0.7~1.5 seconds / Turn||0.7~1.5 seconds / Turn|
|Control way||Precise CNC multi-axis AC servo motor transmission system, position controlling precisely.|
|Accuracy of wire spreading||±0.1°|
|Traverse range of wire feeding axis||(X Axis):0-100mm (Y Axis):0-100mm (Z Axis):0-120mm|
|X / Y / Z Axis servo motor power||(X):400W (Y):400W (Z):400W||(X):400W (Y):400W (Z):400W|
|Winding spindle servo motor power||1.0KW||1.0KW|
|Operation interface||Easily and simply teaching model operation system(Chinese / English operation interface switchable with touching screen)|
|Program storage method||Direct storage + USB|
|Power supply||Single phase AC220V 50/60 Hz or AC110V 50/60 Hz by request|
|Air source pressure||5-6Kgf/cm2|
|Servo motor||Panasonic or or FUJI or YASKAWA|
|Cylinder||SMC / CKD /Airtac / Chelic Cylinder|
|Machine net weight||500Kg||900Kg|
How to select the best suited automatic toroid coil winding machine for your toroid coil?
Tell us the data of your toroidal coil as below please :
1. toroid core outside diameter before winding?
2. toroid core inside diameter before winding?
3. toroid core height before winding?
4. the copper wire diameter ?
5. the turns of each one winding ?
6. finished coil picutres or drawings.
