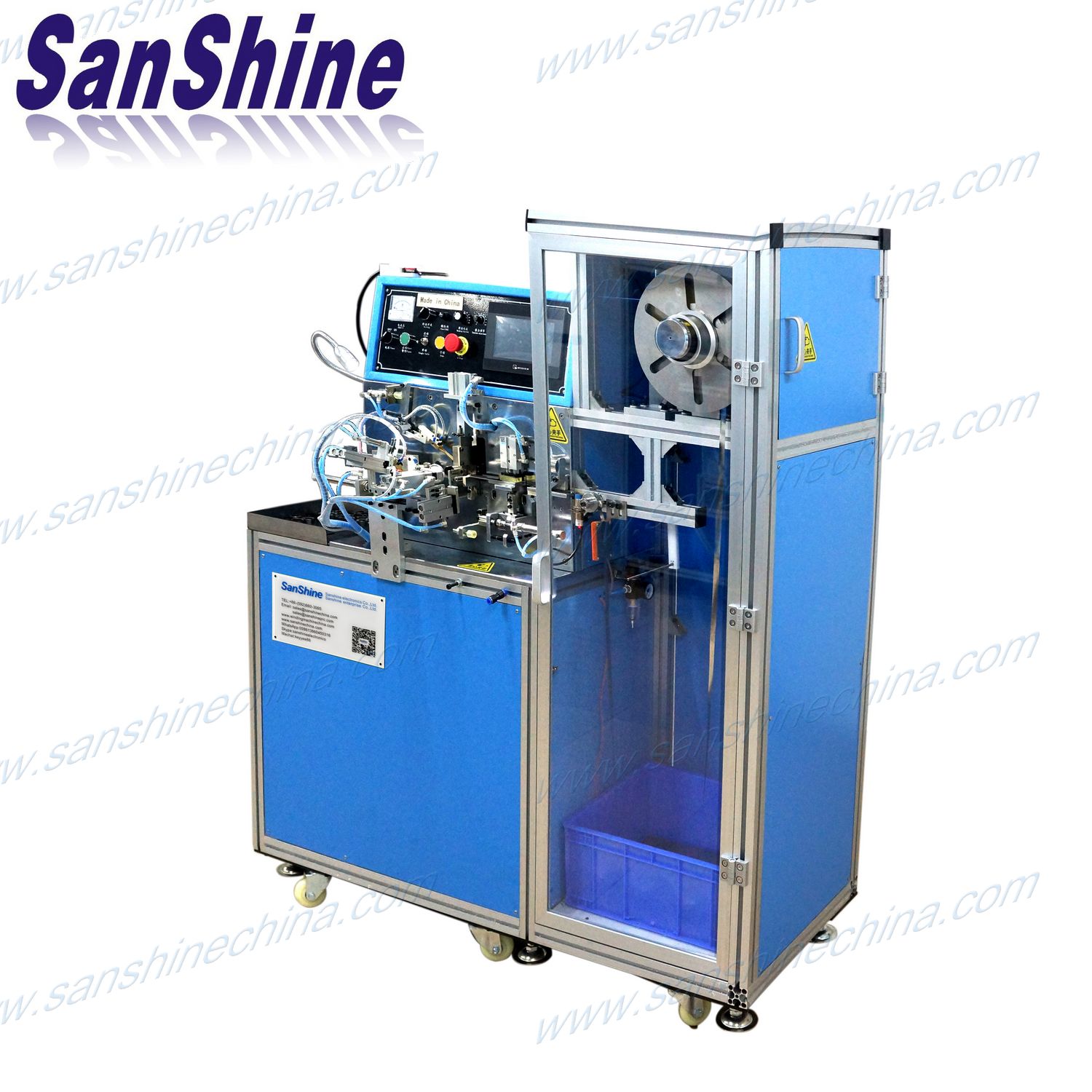

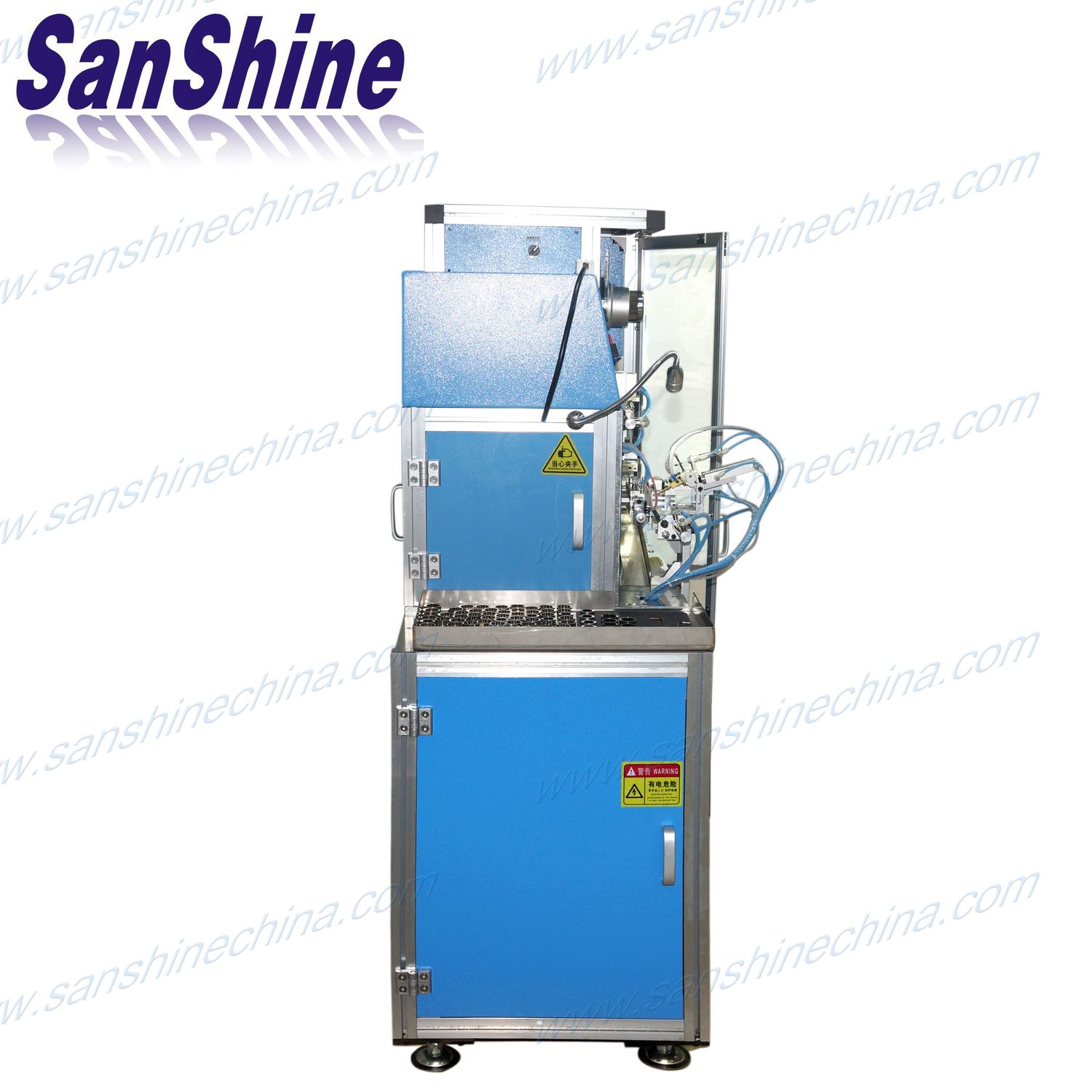

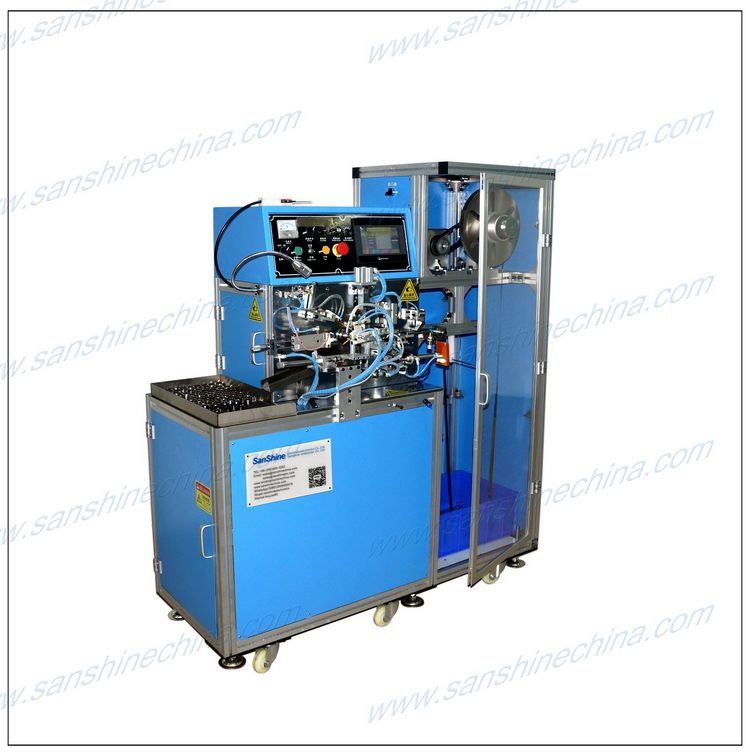

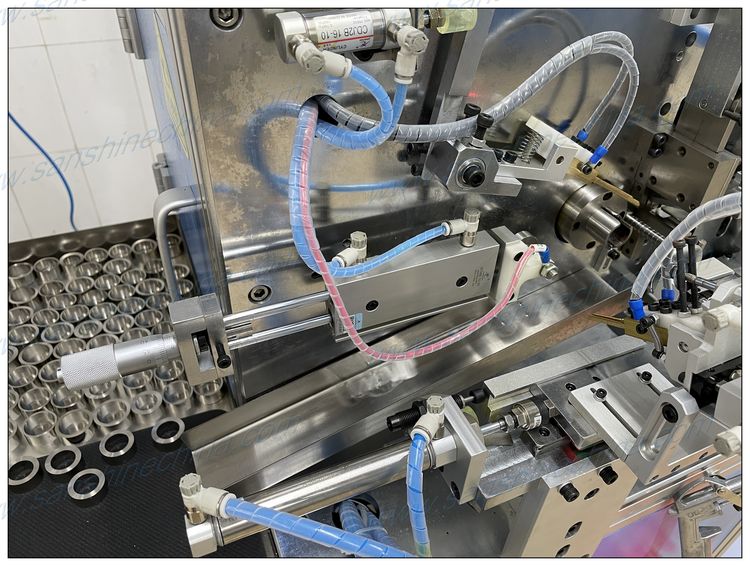

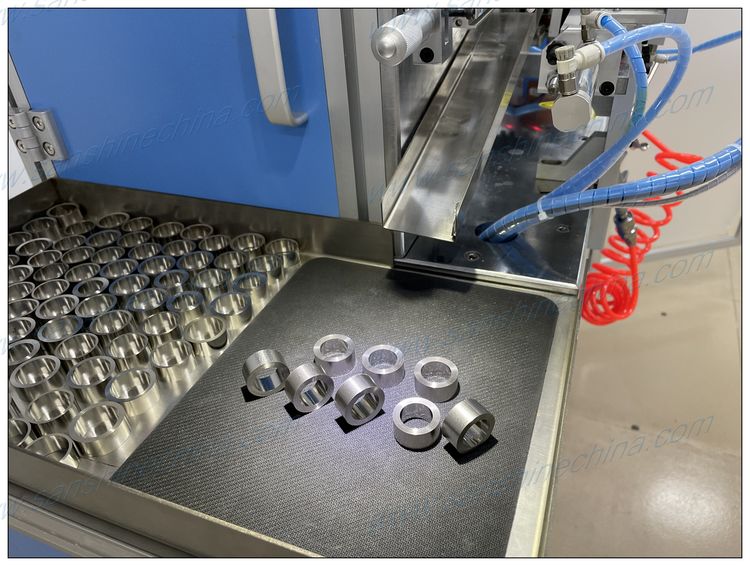

Amorphous ribbon toroidal core automatic welding winding machine (SS-RTC series)
Product 3/13  Automatic toroid coil winding machine  Big size range amorphous ribbon toroidal core fully automatic welding winding machine(SS-RTC04)  Semiautomatic toroidal coil winding machine (SS200)
  • Amorphous ribbon toroidal core automatic welding winding machine (SS-RTC series)
  • Amorphous ribbon toroidal core automatic welding winding machine (SS-RTC series)
  • Amorphous ribbon toroidal core automatic welding winding machine (SS-RTC series)

    Working video


    Production name : Amorphous ribbon toroidal core automatic welding winding machine (SS-RTC series)



    Description :

    The amorphous ribbon toroidal core automatic welding winding machine (SS-RTC series) adopts precise programmable PLC winding controller. It's an accurately and reliability digital amorphous ribbon toroidal core winding machine with welding function. This ribbon toroid core winding machine is named nanocrystalline magnetic core making machine, crystalline magnetic core winding machine and metal film toroid core winding machine also. This toroid core winding machine is used for making the amorphous ribbon magnetic toroidal inductor core, amorphous ribbon magnetic toroidal transformer core, amorphous ribbon magnetic toroid chock core, etc. .

    Features :

    1. Adopts precise programmable PLC winding controller.

    2. Integrated the welding function with it. can complete the amorphous ribbon winding and welding at same position.

    3. Load ribbon, winding, welding, cutting and download automatically.

    4. The welding current is adjustable for different thickness ribbon request.

    5. Accurately count turns of winding by high frequency response photo-electricity sensor.

    6. Programmable winding direction.

    7. Accurately speed be programmable.

    8. Saved programs with off-power memory retention.

    Specification :

    ModelRibbon toroid core inner diameter depend on spindle size (mm)Ribbon toroid core out diameter (mm)Ribbon width depend on spindle size (mm)Ribbon thickness (um)Power source (Single phase)Air sourcesize (cm) and weight (Kg)
    SS-RTC017 ~308~385~ 1015~25220V,50/60HZ0.7MpaL150*80*H140, 250
    SS-RTC0230~7032~9015~ 30220V,50/60HZ0.7MpaL200*120*H140, 300
    SS-RTC0370 ~25075 ~30030 ~ 50220V,50/60HZ0.7MpaL300*120*H140, 350
