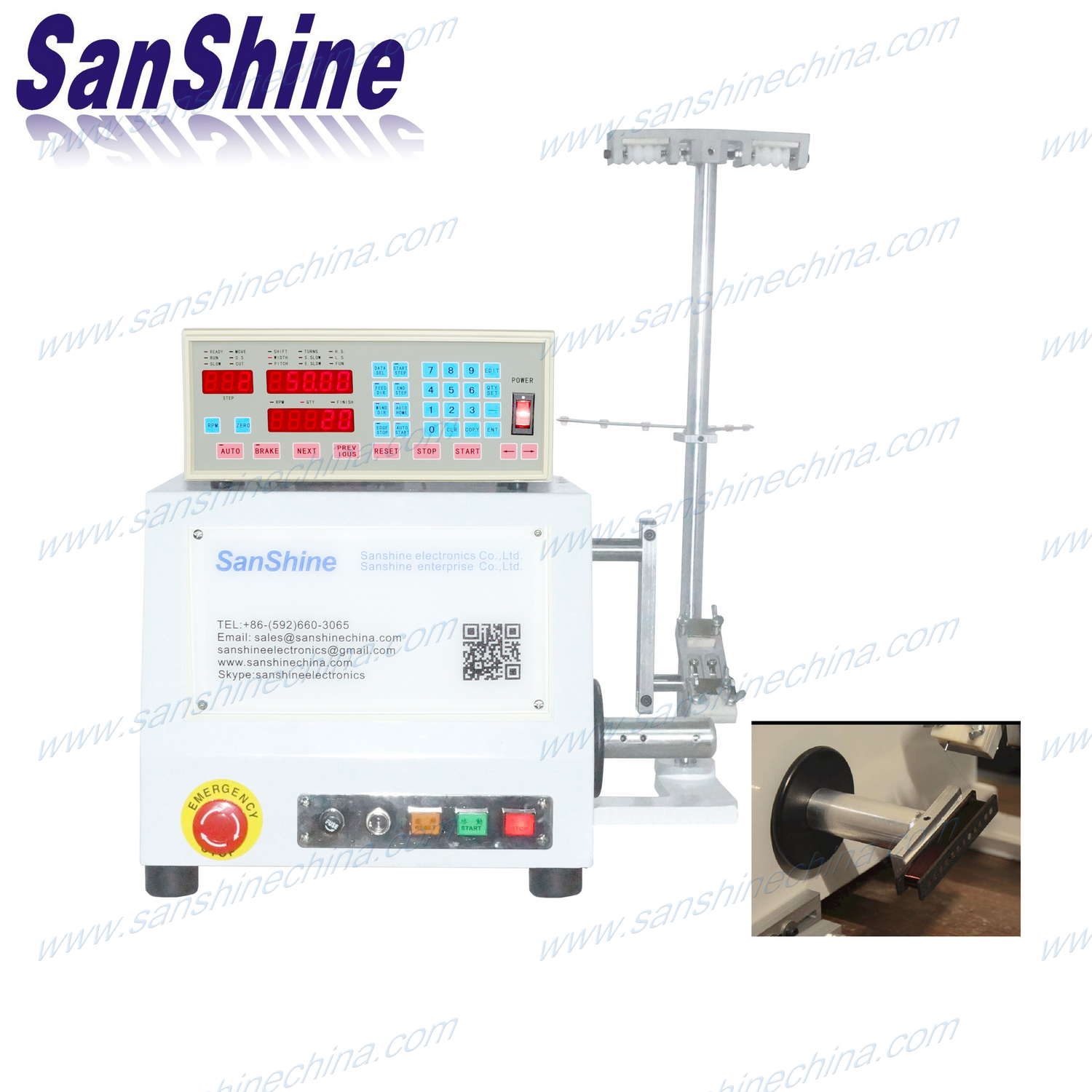

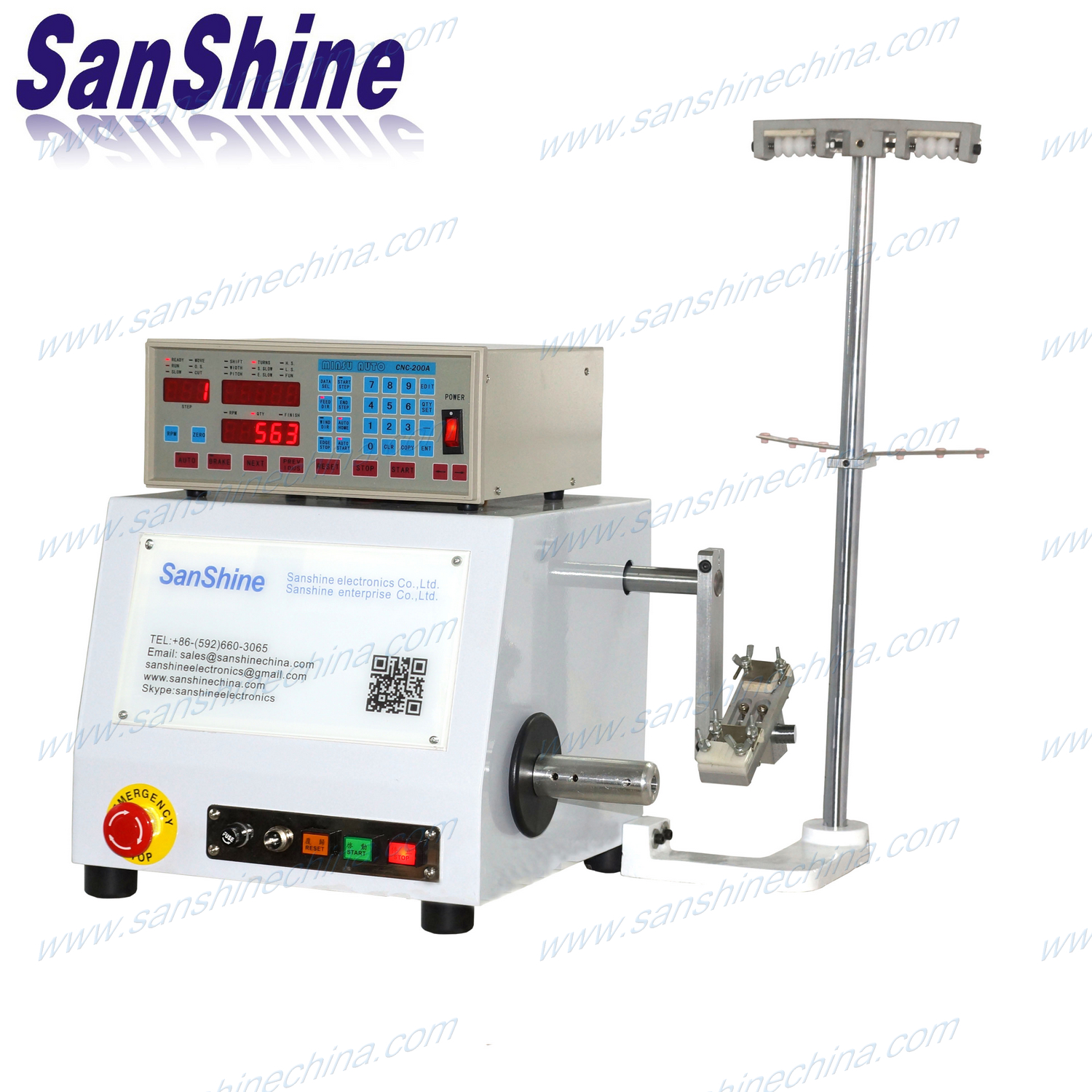

Automatic CNC guitar wire winding machine (SS600G)
Product 6/27  Automatic linear coil winding machine  Programmable automatic motor generator coil winding machine(SS851MS)  Automatic speaker voice coil winding machine (SS600V)
  • Automatic CNC guitar wire winding machine (SS600G)
  • Automatic CNC guitar wire winding machine (SS600G)
  • Automatic CNC guitar wire winding machine (SS600G)
  • Automatic CNC guitar wire winding machine (SS600G)

    Video: SS600G automatic CNC guitar wire winding machine




    Description :
    This (SS600G) Automatic CNC guitar wire winding machine is one digital programmable coil winding machine, It's the best choice for winding guitar pickups wire,piano string,stringed instrument wire, etc.
    Features:
    1. Spreading head of SS600G can install four type different size wires at the same time.
    2. Winding and wire spreading can be done by one machine at same time.
    3. Step motor driven by constant-current power supply, high spreading speed precise winding.
    4. "Start Point" could set by key panel or with teachable function.
    Display will show the position of spreading head while setting.
    5. Small wire diameter coil of spreading by nozzle type spreading head.
    6. Wire passing through ceramic rollers prevent enamel from high temperature.
    7. Foot-switch connection for better efficiency.
    8. Winding parameters and options can be set independently for each step.
    9. Memory capacity accommodates 999 steps of parameters with Off-power memory retention.
    Specification:

    Model

    SS-600G

    Spindles

    1

    Wire size

    0.08~ 1.0mm

    Spread pitch

    0~ 9.999mm

    Spread width

    100mm (Max. )

    Coil diameter

    110mm (Max. )

    Main motor

    Brushless Motor

    Spread motor

    2-Phase Stepper Motor

    MAX. speed

    6000rpm

    Memory

    999 Steps

    Power source

    AC220V ±10%, 50/60 Hz

    Dimension(CM)

    76x68x72

    Net weight(KG)

    37
