    Product name : Automatic big toroid taping machine (SS300T series)

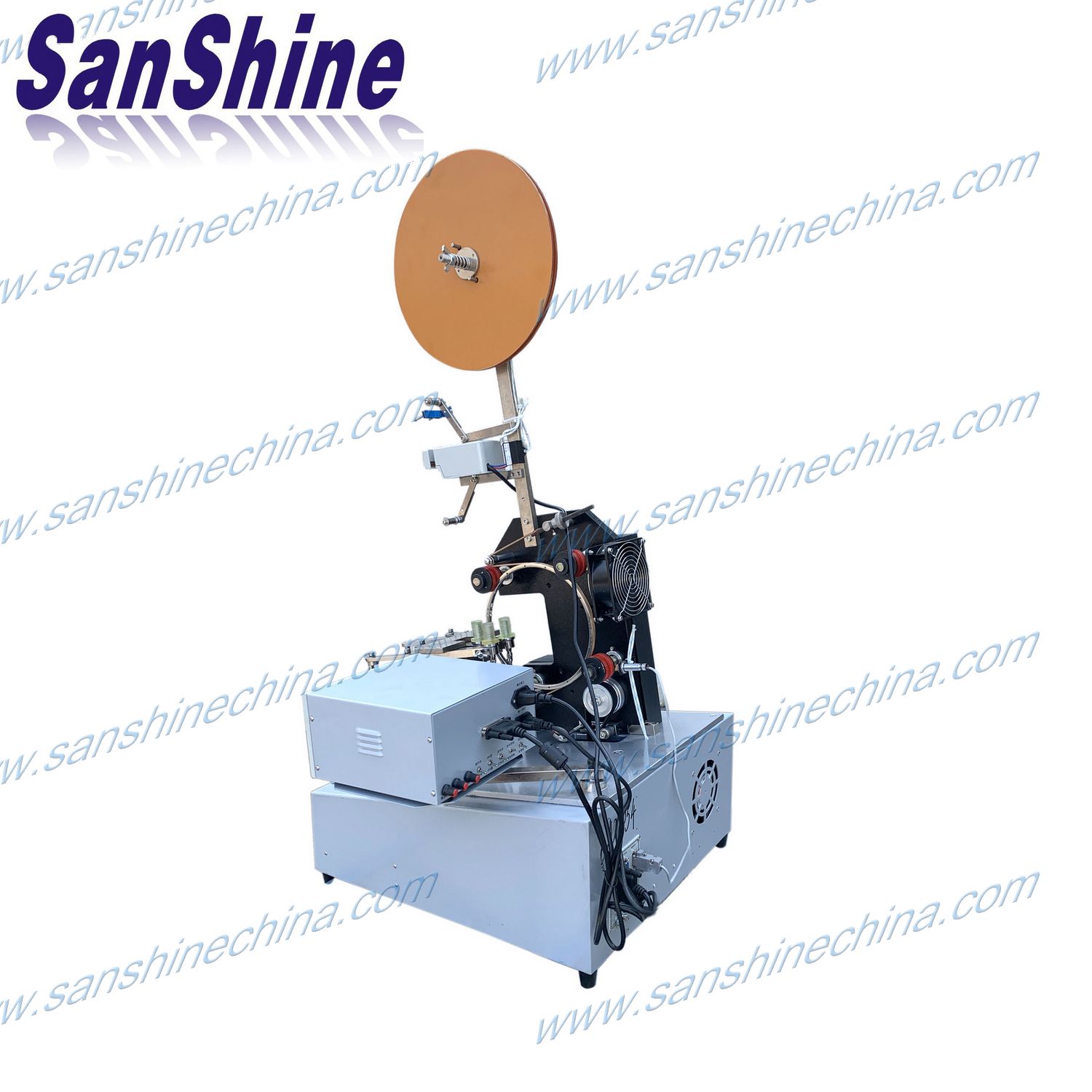

    SS300T-01

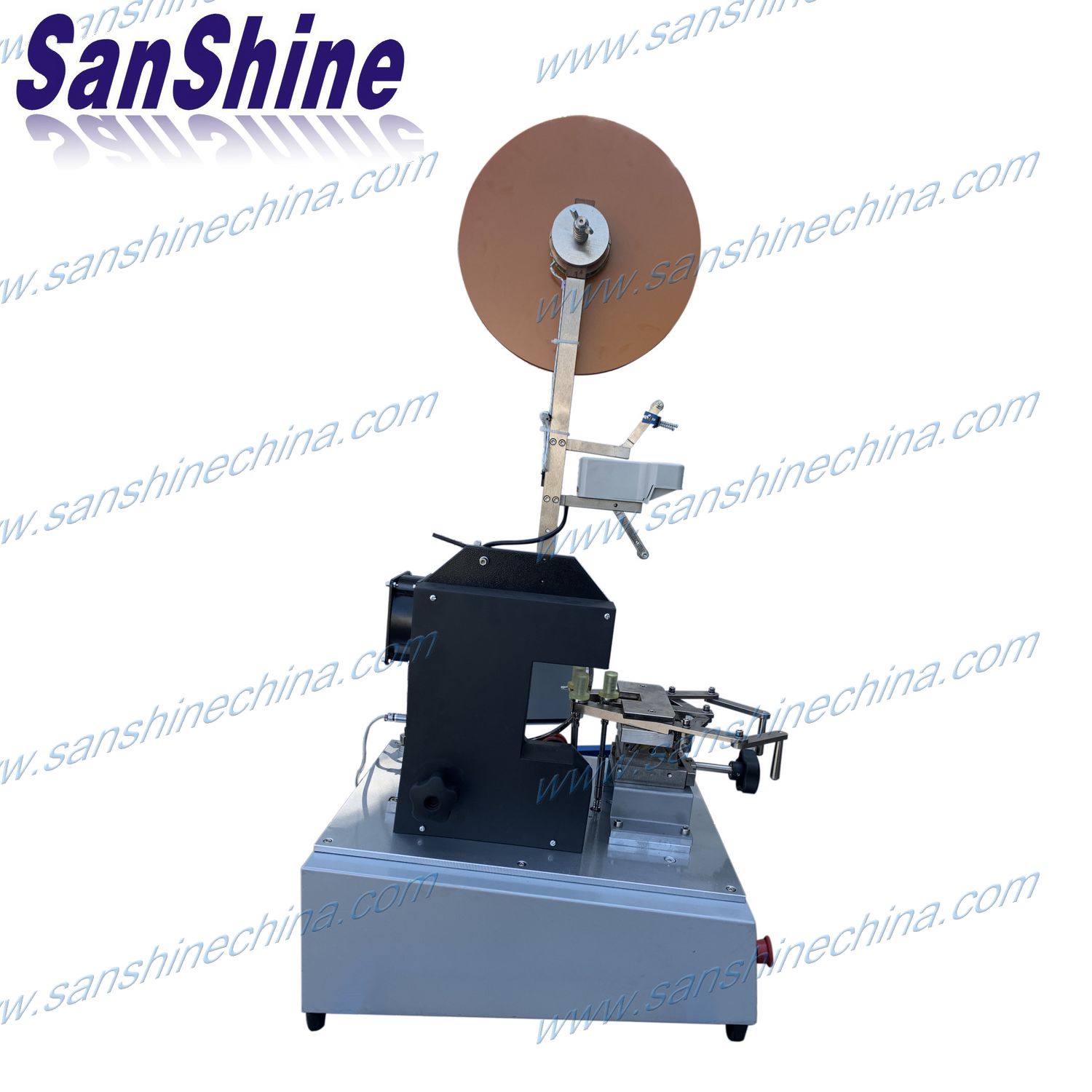

    SS300T-02

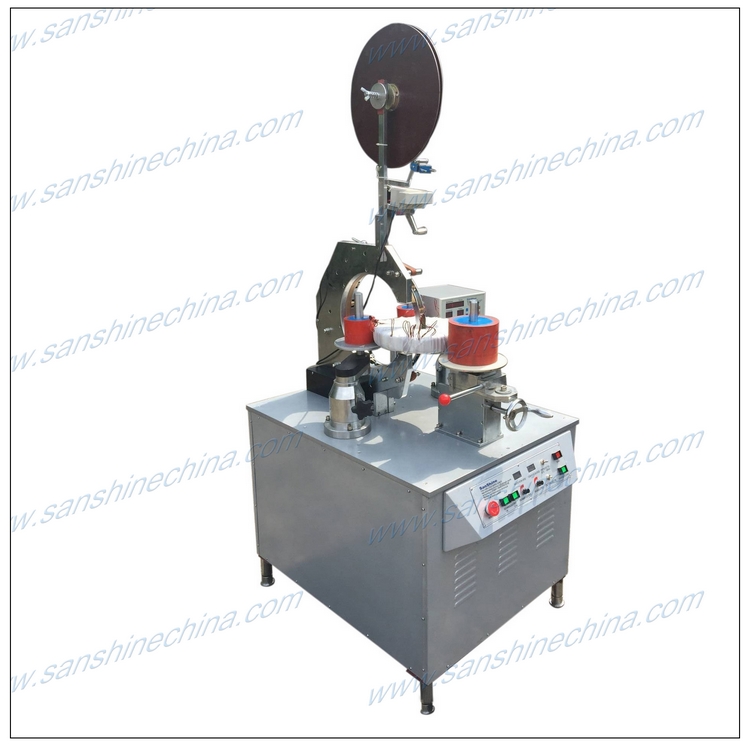

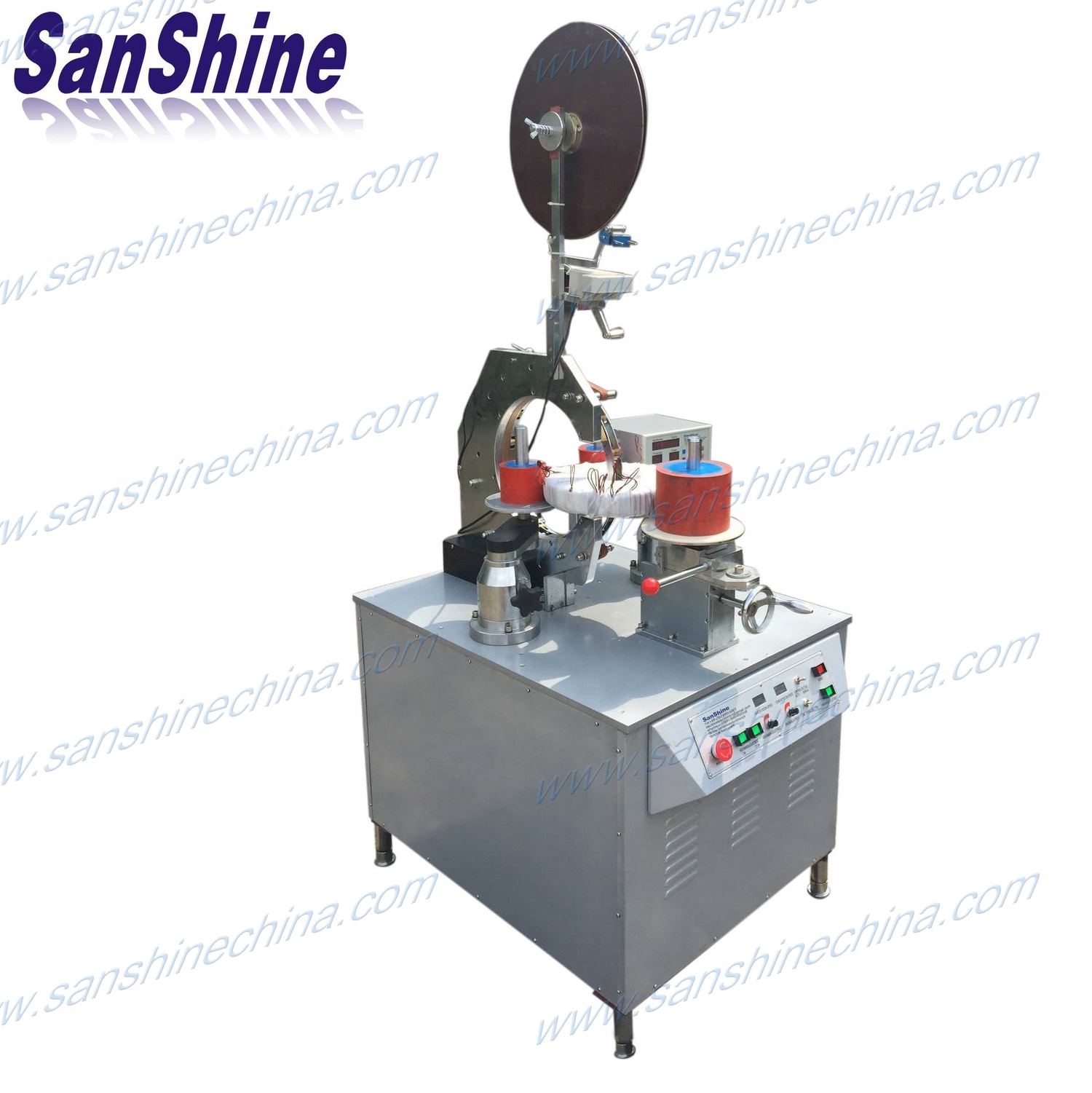

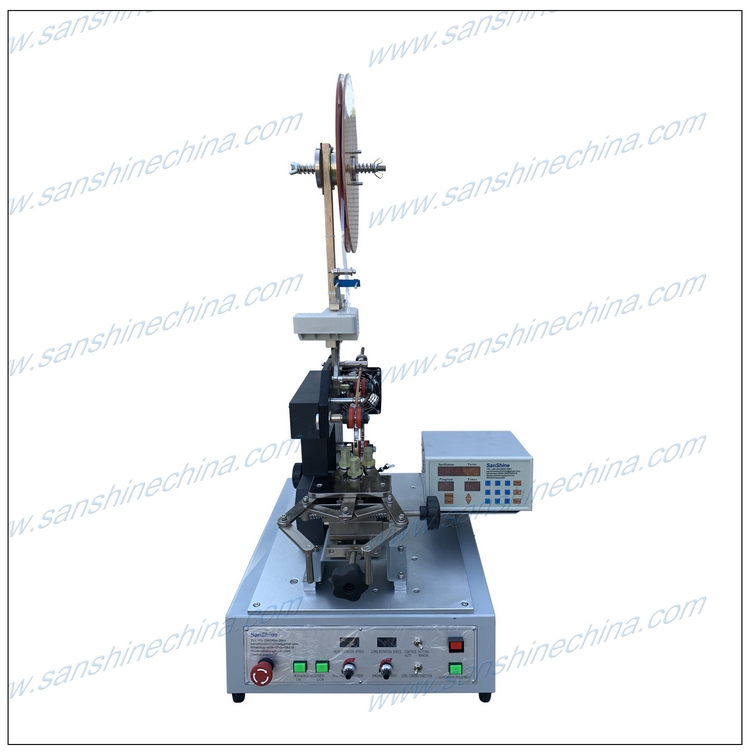

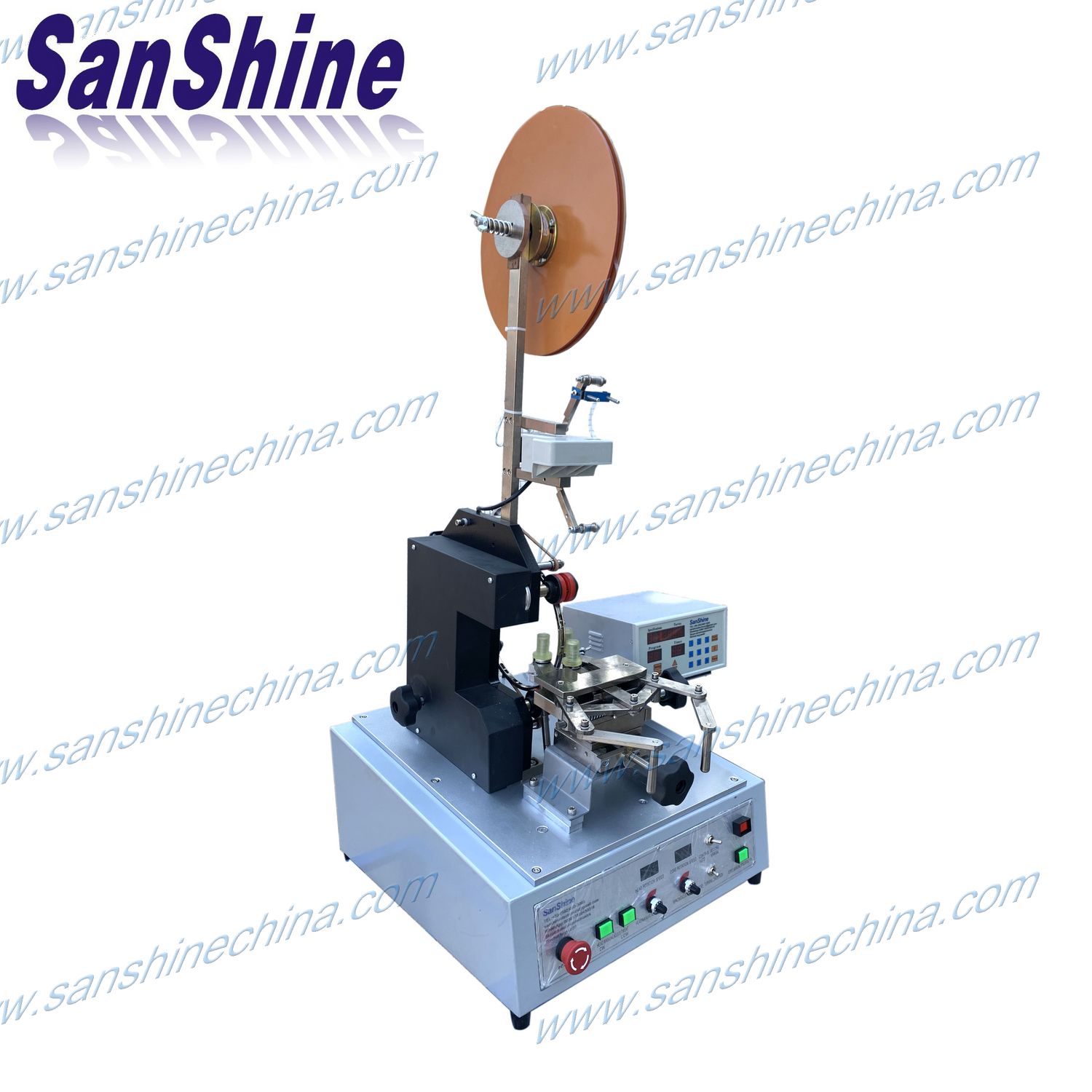

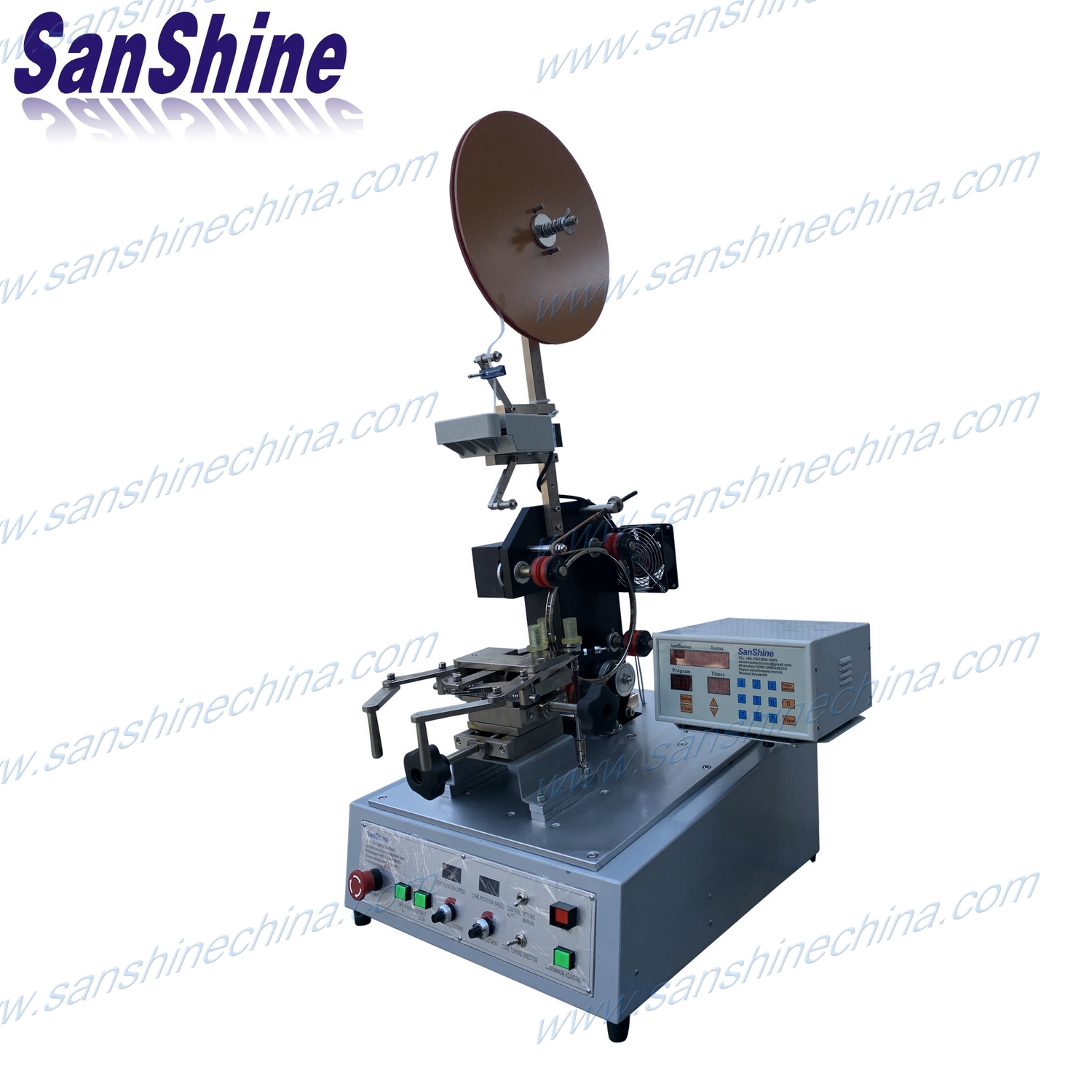

    SS300T-03 / SS300T-04 / SS300T-05 / SS300T-06

    Description :

    This (SS300T Series) Digital Automatic Toroid Taping Machines adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-taping machine. it is used for wraping the insulation tape on the toroidal core and windings. it is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors,  heavy toroidal core,etc.
    Features :
    1. Collocate the shuttle type taping head to wrap the insulation tape, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different size tapes, so that to reduce the cost.
    2. Hi-tech shuttle for highest efficiency.
    3. Separate control speed for loading and taping.
    4. Accurately count length of loading by limited-switch.
    5. Accurately count turns of taping by photo-electricity sensor.
    6. Programmable taping direction, taping returns range (Turns or Angle) and segment taping angle.
    7. Accurately tape spacing by programmable controller.
    8. Memory capacity accommodates 29 sets programes with off-power memory retention.

    Specification of each model :

    ModelSS300T-01   (Shuttle OD. 400mm)
    Tape width15   (20, 25, 30)mmMax.   winding speed120   RPM
    Max. final coil O. D.Φ130-650mmWire   spacingstepping   motor control
    Min. final coilI.D.Φ60mmSupply   voltageAC   220V(50Hz)
    Max. final coil height150mmMechanical   dimensions900*600*1800mm
    Controller storage capacity programs29(set)Weight240Kg
    ModelSS300T-02   (Shuttle OD. 220mm)
    Tape width6   (8)mmMax.   winding speed250   RPM
    Max. final coil O. D.Φ80mmWire   spacingstepping   motor control
    Min. final coilI.D.Φ16mmSupply   voltageAC   220V(50Hz)
    Max. final coil height40mmMechanical   dimensions550*500*1100mm
    Controller storage capacity programs29(set)Weight100Kg
    ModelSS300T-03   (Shuttle OD. 250mm)
    Tape width8(10,   12, 15)mmMax.   winding speed250   RPM
    Max. final coil O. D.Φ45-200mmWire   spacingstepping   motor control
    Min. final coilI.D.Φ25mmSupply   voltageAC   220V(50Hz)
    Max. final coil height80mmMechanical   dimensions550*500*1100mm
    Controller storage capacity programs29(set)Weight100Kg
    ModelSS300T-04   (Shuttle OD. 250mm)
    Tape width10(8,   12, 15)mmMax.   winding speed250   RPM
    Max. final coil O. D.Φ50-200mmWire   spacingstepping   motor control
    Min. final coilI.D.Φ30mmSupply   voltageAC   220V(50Hz)
    Max. final coil height80mmMechanical   dimensions550*500*1100mm
    Controller storage capacity programs29(set)Weight100Kg
    ModelSS300T-05   (Shuttle OD. 250mm)
    Tape width12(8,   10, 15)mmMax.   winding speed250   RPM
    Max. final coil O. D.Φ50-200mmWire   spacingstepping   motor control
    Min. final coilI.D.Φ35mmSupply   voltageAC   220V(50Hz)
    Max. final coil height80mmMechanical   dimensions550*500*1100mm
    Controller storage capacity programs29(set)Weight100Kg
    ModelSS300T-06   (Shuttle OD. 300mm)
    Tape width15(8,   10, 12, 20)mmMax.   winding speed200   RPM
    Max. final coil O. D.Φ60-200mmWire   spacingstepping   motor control
    Min. final coilI.D.Φ40mmSupply   voltageAC   220V(50Hz)
    Max. final coil height100mmMechanical   dimensions550*500*1200mm
    Controller storage capacity programs29(set)Weight100Kg
    ModelSS300T-07   (Shuttle OD. 360mm)
    Tape width15(8,   10, 12, 20, 25)mmMax.   winding speed200   RPM
    Max. final coil O. D.Φ80-300mmWire   spacingstepping   motor control
    Min. final coilI.D.Φ50mmSupply   voltageAC   220V(50Hz)
    Max. final coil height150mmMechanical   dimensions600*500*1350mm
    Controller storage capacity programs29(set)Weight116Kg

    How to select the best suited automatic toroid taping machine for your toroid coil?

    Tell us your toroidal coil of data as below please:
    1.toroid core outside diameter before winding?
    2.toroid core inside diameter before winding?
    3.toroid core height before winding?
    4.how many windings on this core?
    5.how many tape windings total on this toroidal coil?
    6.how about the tape width of each tape winding?

    7.how many turns of each tape winding?
    8.provide pictures of product which is better.
