Product name :Bench rotary insert wire stripping machine (SS-SM01)
Description :

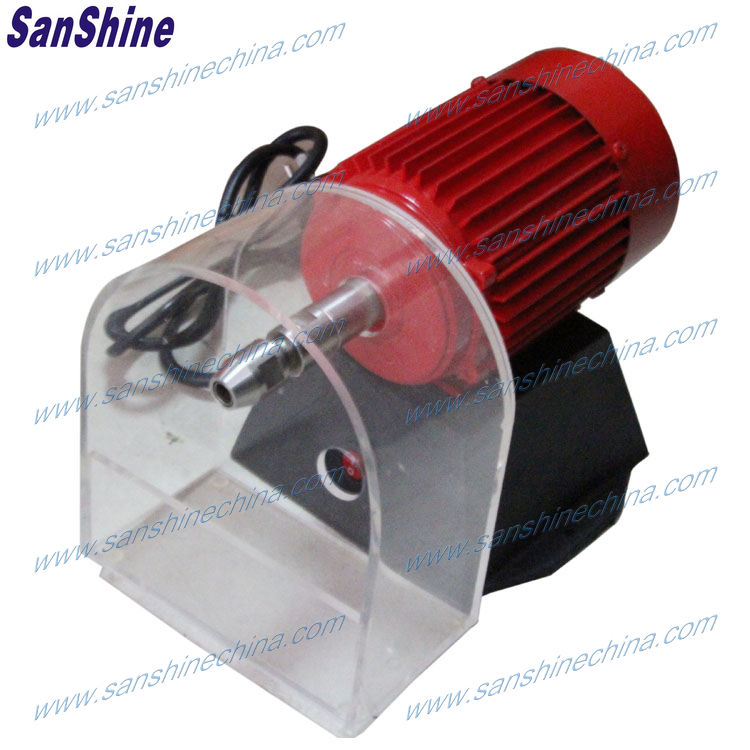

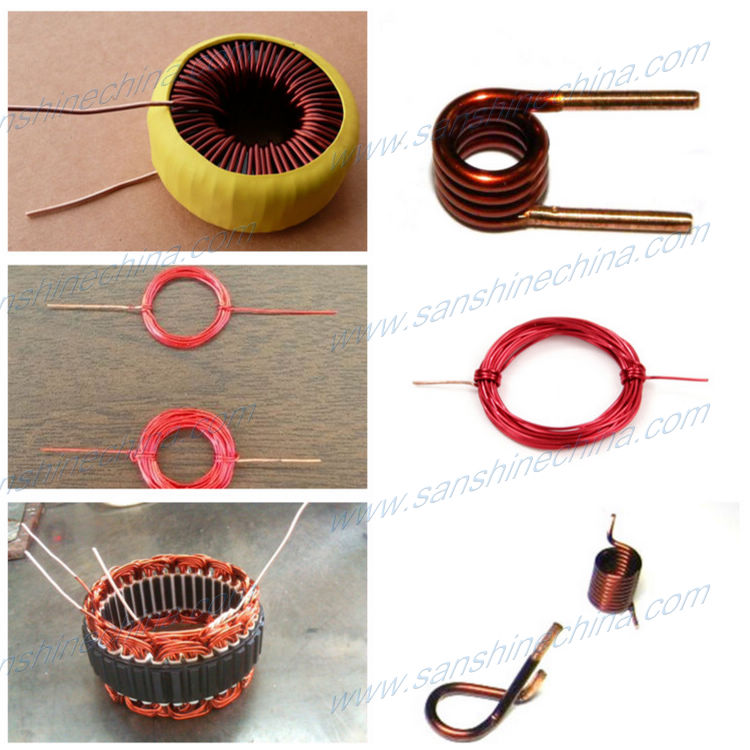

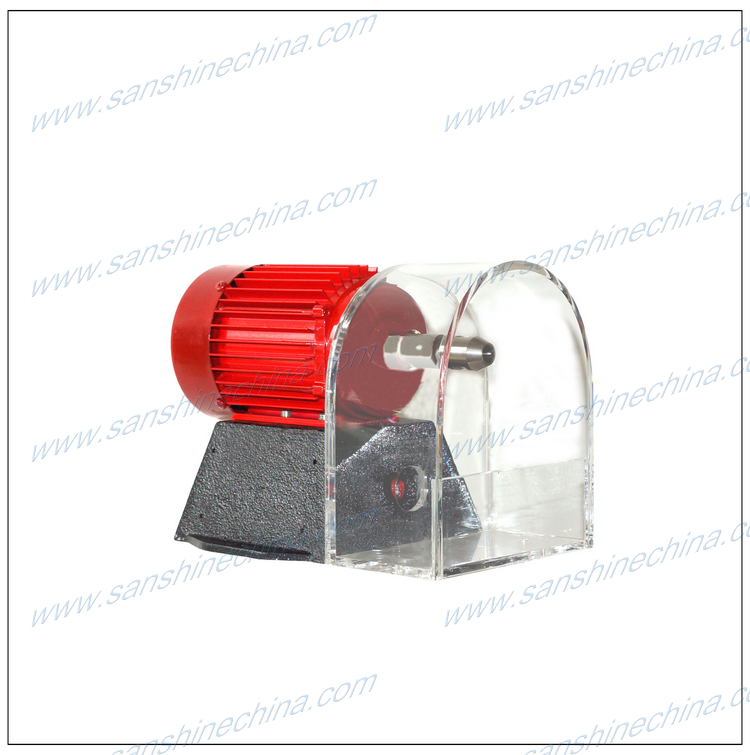

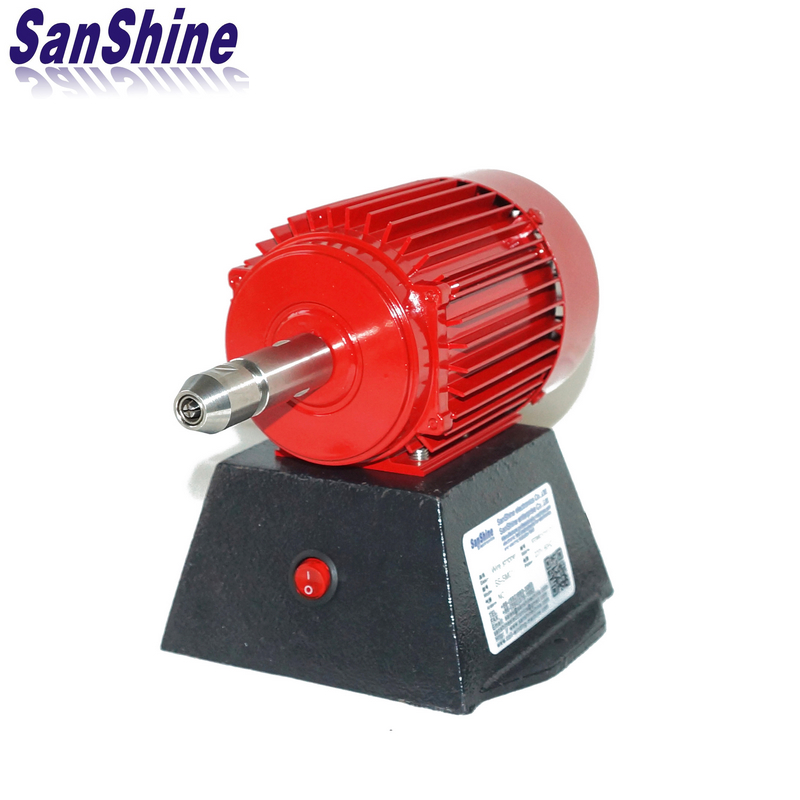

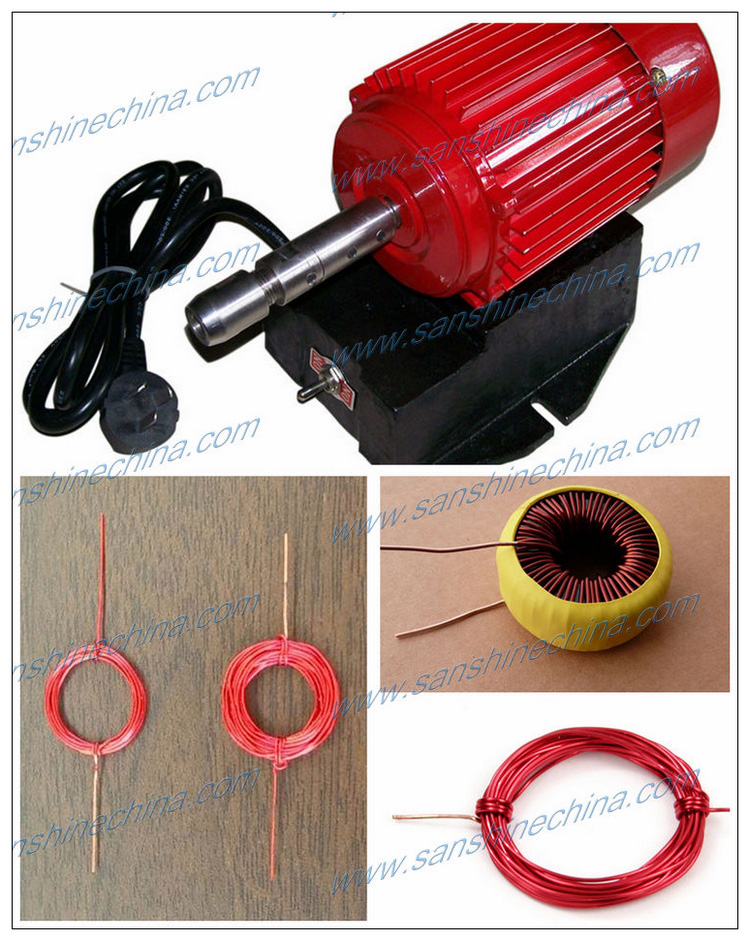

The (SS-SM01) bench rotary insert wire stripping machine is one table top wire stripping machine, it is constructed from motor, power switch, stripping blade(stripping bullet nose insert, stripping flat face insert), blade cover. the blade be made of speciall alloy steel. Is very convenient to use, Which can strip a lot of surface insulated films of the magnetic wire quickly, and do not break wire core. It is used for stripping enamel wires, varnished wires,etc.,be used widely in motor manufacture, transformer manufacture,inductor manufacture,coil manufactor,cable manufacture, reactor manufacture,and so on. It is superior to knife, grinding wheel and chemical of stripping ways. It increases the processing efficiency and improve the soldering quality.
Specification :
Model | SS-SM01 |
Wire diameter range | ¢0.28~3.25mm(depend on different model blade) |
Wire stripping length | 0~ 45.0mm |
Power source | Single phase 220V, 50/ 60Hz. |
Power | 90W |
Rotation speed | 2800RPM |
Product dimensions | 280*190*180mm |
Package dimensions | 370*320*250（mm） |
Net weight | 6Kg |
Shipping weight | 7.3Kg |

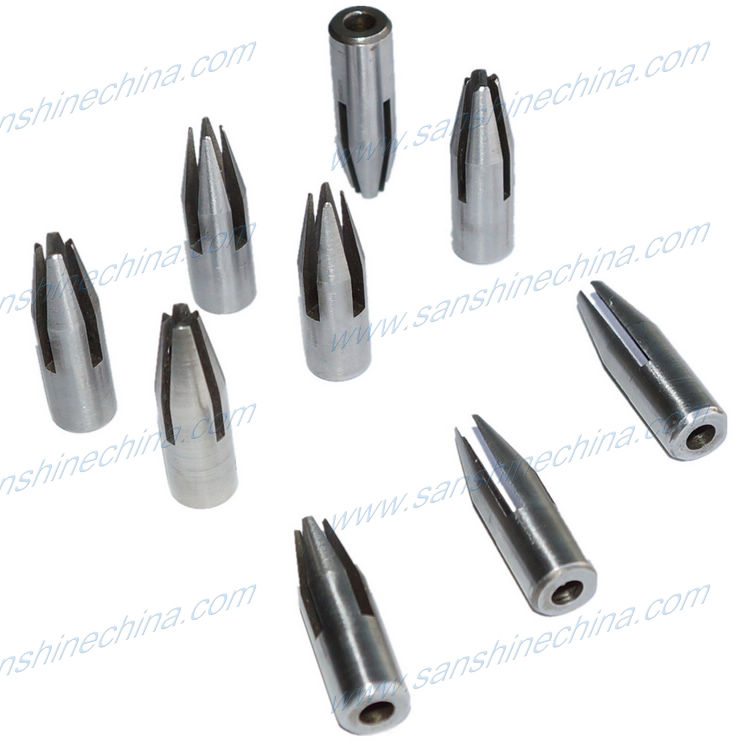

Columniform flat face insert model | Wire diameter range | Coniform(conical)bullet nose insert model |
2SC | 29~24AWG(0.28~0.51mm) | 2BF |
3SC | 24~20AWG(0.51~0.81mm) | 3BF |
4SC | 20~16AWG(0.81~1.30mm) | 4BF |
5SC | 15~13AWG(1.45~1.83mm) | 5BF |
6SC | 13~11AWG(1.83~2.31mm) | 6BF |
7SC | 11~9AWG(2.31~2.90mm) | 7BF |
8SC | 9~8AWG(2.90~3.25mm) |
