Fully automatic linear motor coil winding machine
Product 8/10  Fully automatic multispindles linear coil winding machine  Fully automatic linear motor coil winding machine  Fully automatic multi-spindles linear coil winding machine
  • Fully automatic linear motor coil winding machine
  • Fully automatic linear motor coil winding machine
  • Fully automatic linear motor coil winding machine

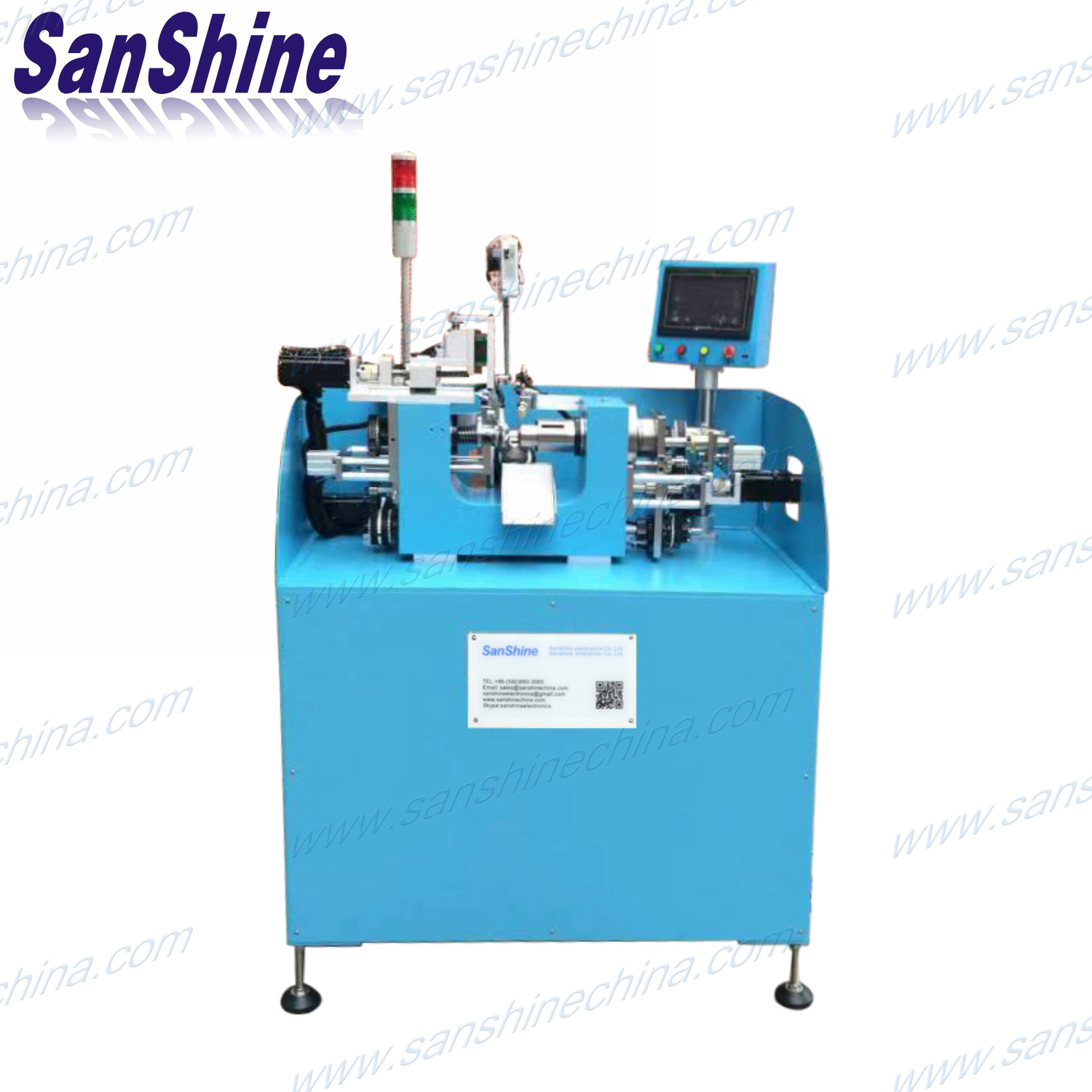

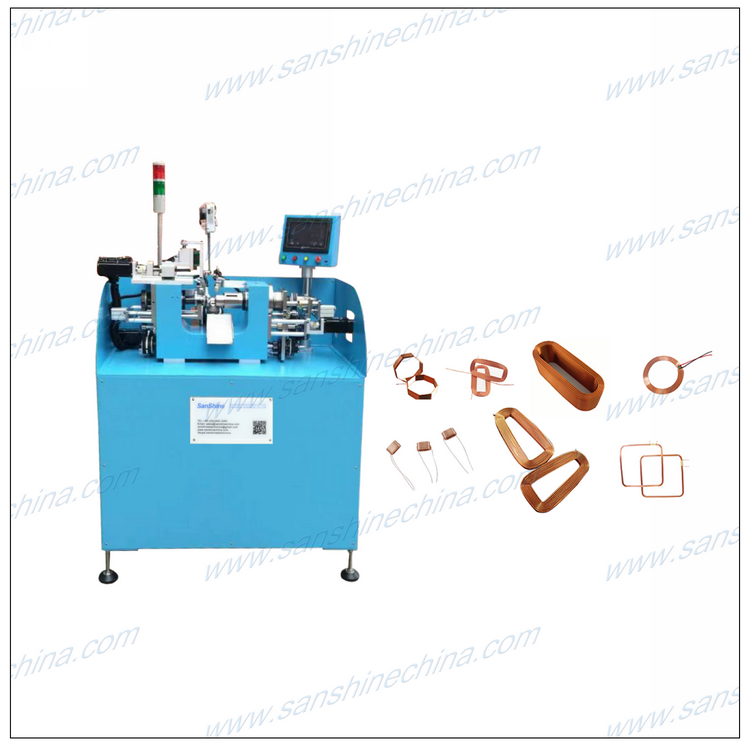

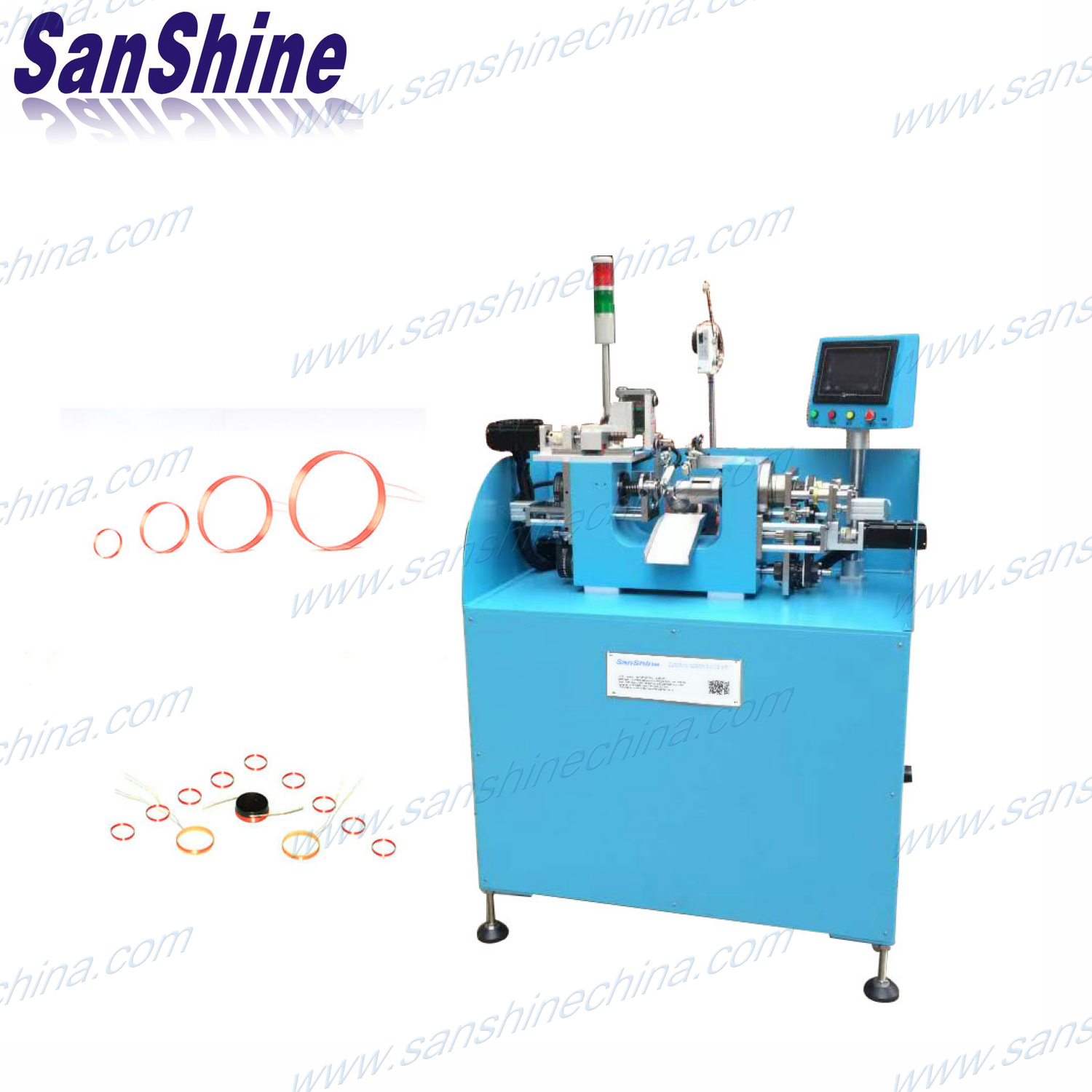

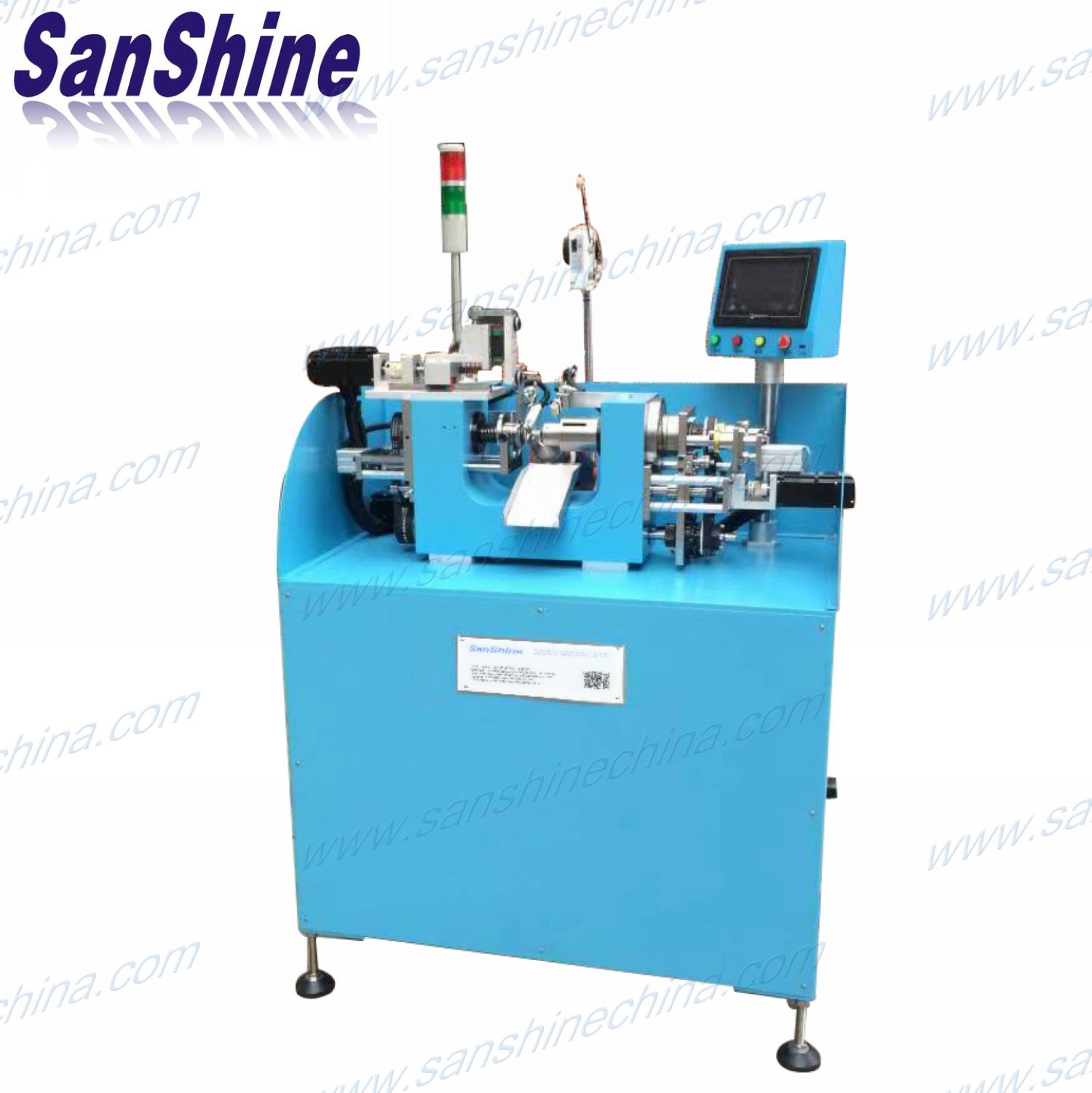

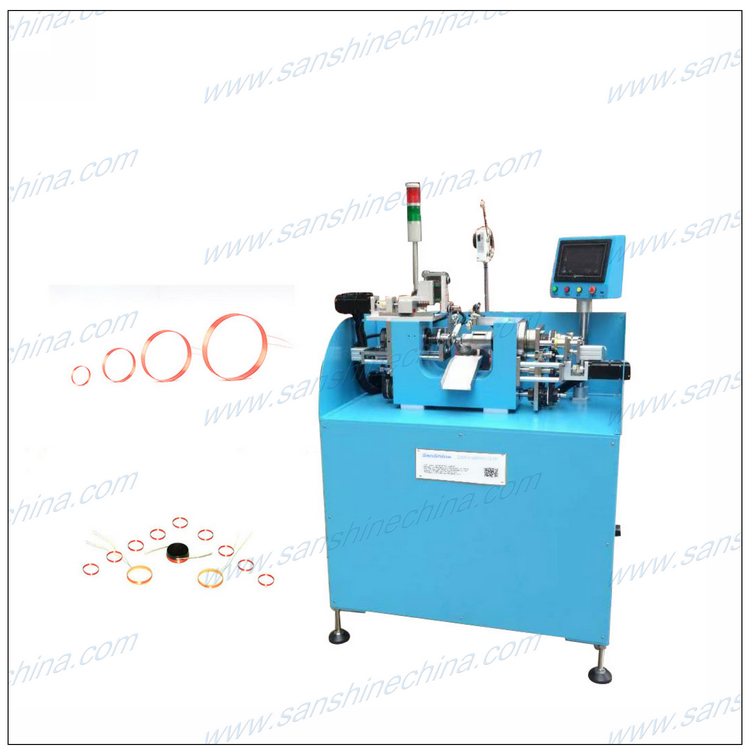

    Product name: Fully automatic linear motor coil winding machine (SS821AS and SS822AS)







    Descriptions :

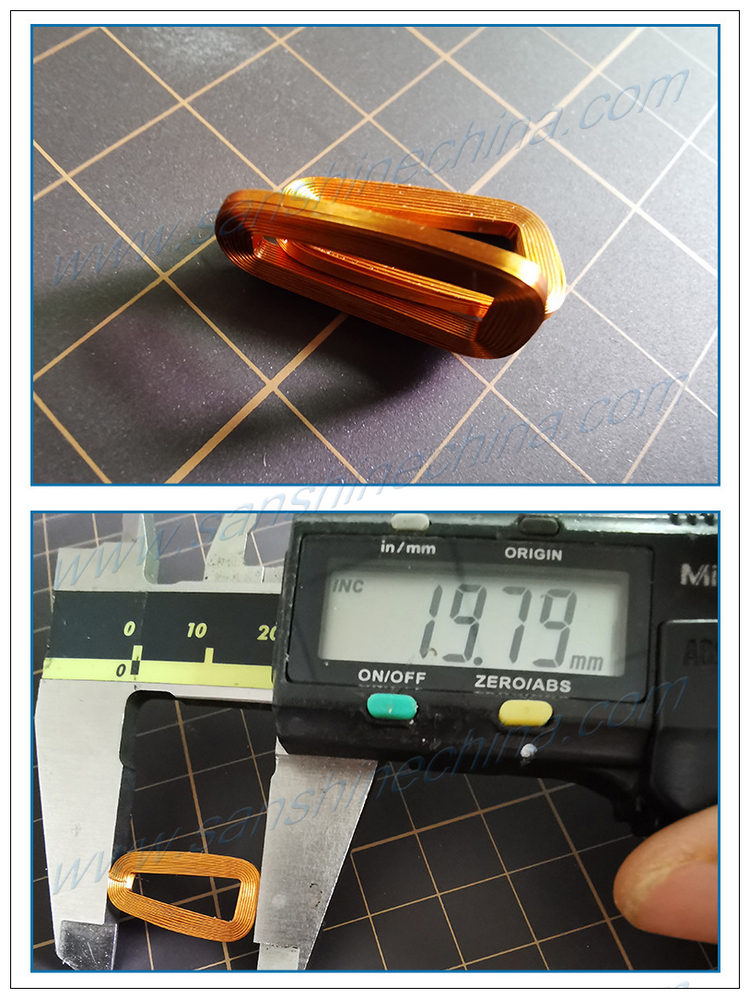

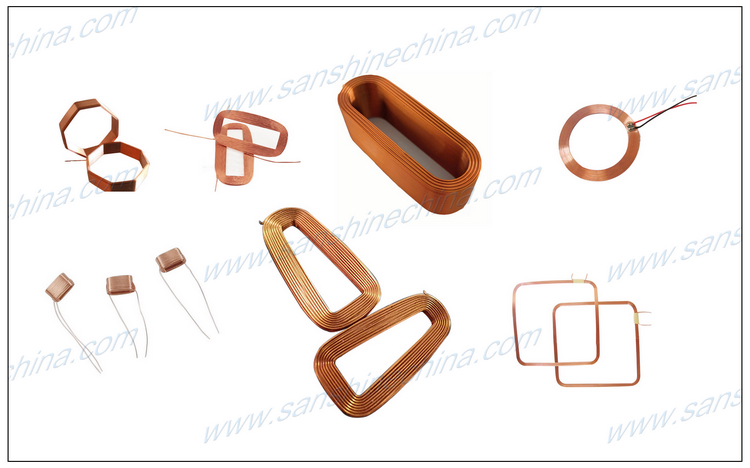

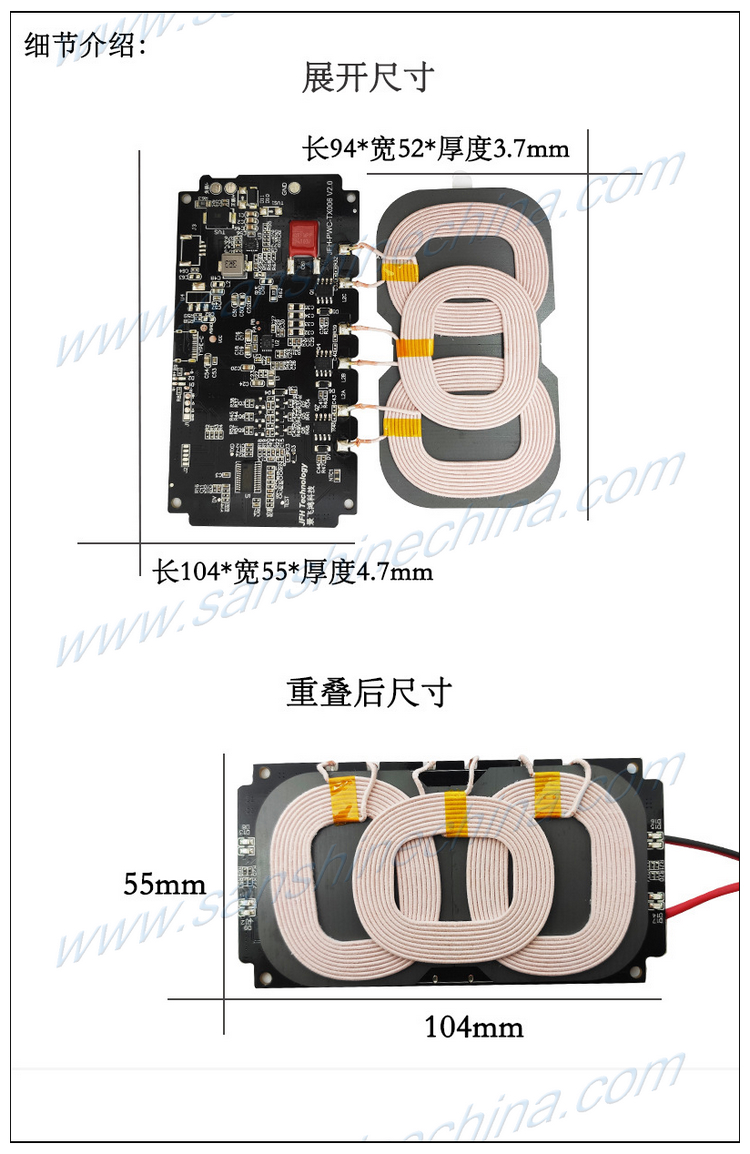

    This (SS821AS and SS822AS) bobbin less alcohol or hot air self bonding wire air coil winding machines are used for winding the self bonding wire air coils in fully automatically without operator. These fully automatic winder are named bobbin less inductance coil winding machine and automatic linear motor coil production line also. They are best suited for winding the earphone coils and wireless charger coils, linear motor coils, flat vibration motor coils, IC card coils, CUID coils, NFC coils, RFID coils, etc. .  This precise programmable fully automatic air coil winding machine can wind a lot of different size shapes air coil through change the different size winding moulds.

    Specifications :


    ModelSS821SASS822SA
    Spindle numbers11
    Max. Diameter Or width of coil15mm35mm
    Traverse range of winding nozzle / winding width15mm30mm
    Wire diameter  (mm)0.02~0.20.05~1.2
    Control wayPrecise CNC multi-axis AC servo motor transmission system, position controlling precisely.
    Spindles rotating speed (RPM)Max.3000Max.3000
    Winding nozzle angle 90° with machine base
    Spindles rotating angle360° +/- 0.1
    Winding nozzle /wire clip and wire cutter actionsactions of wire clip and wire cutter at same timeactions of wire clip and wire cutter are separated.
    Accuracy of winding nozzle movement0.002mm
    Wire loading and finished coil unloading wayFully automatic
    Wire typealcohol self bonding enamel copper wire / hot air self bonding enamel copper wire / self bonding yarn wrapped copper wire
    X / Y / S Axis servo motor power (W)(X):200 (Y):200 (S/ winding spindle):400(X):200 (Y):200 (S/ winding spindle):400
    Operation interfaceEasily and simply teaching model operation system(Chinese / English operation interface switchable with touching screen)
    Program storage methodDirect storage + USB
    Power supplySingle phase AC220V 50/60 Hz or AC110V 50/60 Hz by request
    Power2.5KW3KW
    Air source pressure5-6Kgf/cm2
    Servo motorPanasonic or or FUJI or YASKAWA
    CylinderSMC / CKD /Airtac / Chelic Cylinder
    Machine net weight200Kg300Kg
    Machine size410(W)*710(L)*1200(H)mm600(W)*1000(L)*1380(H)mm
