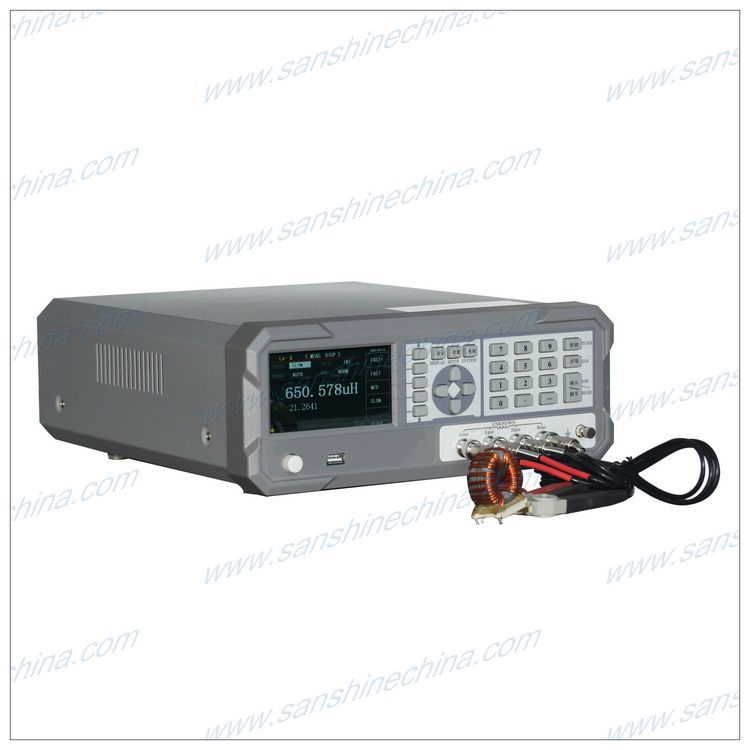

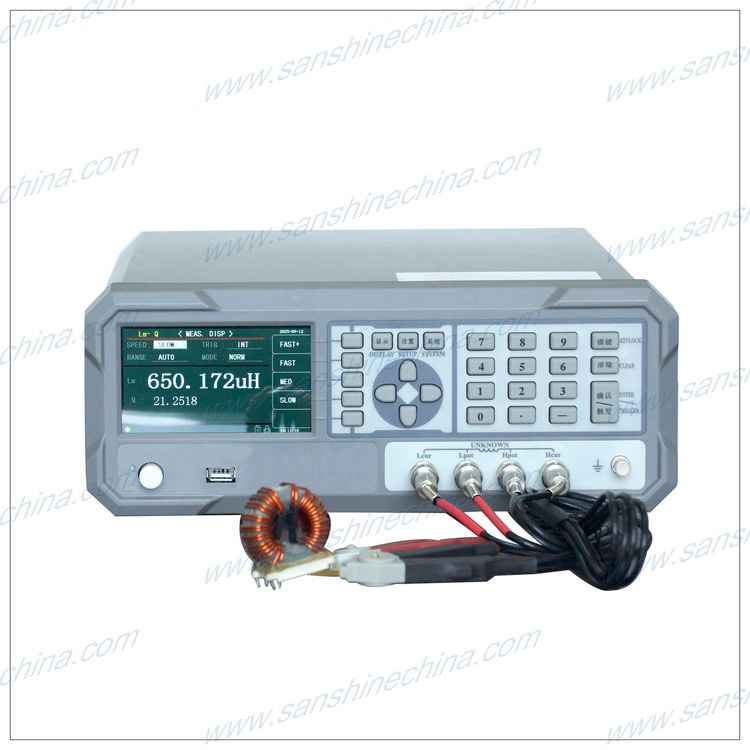

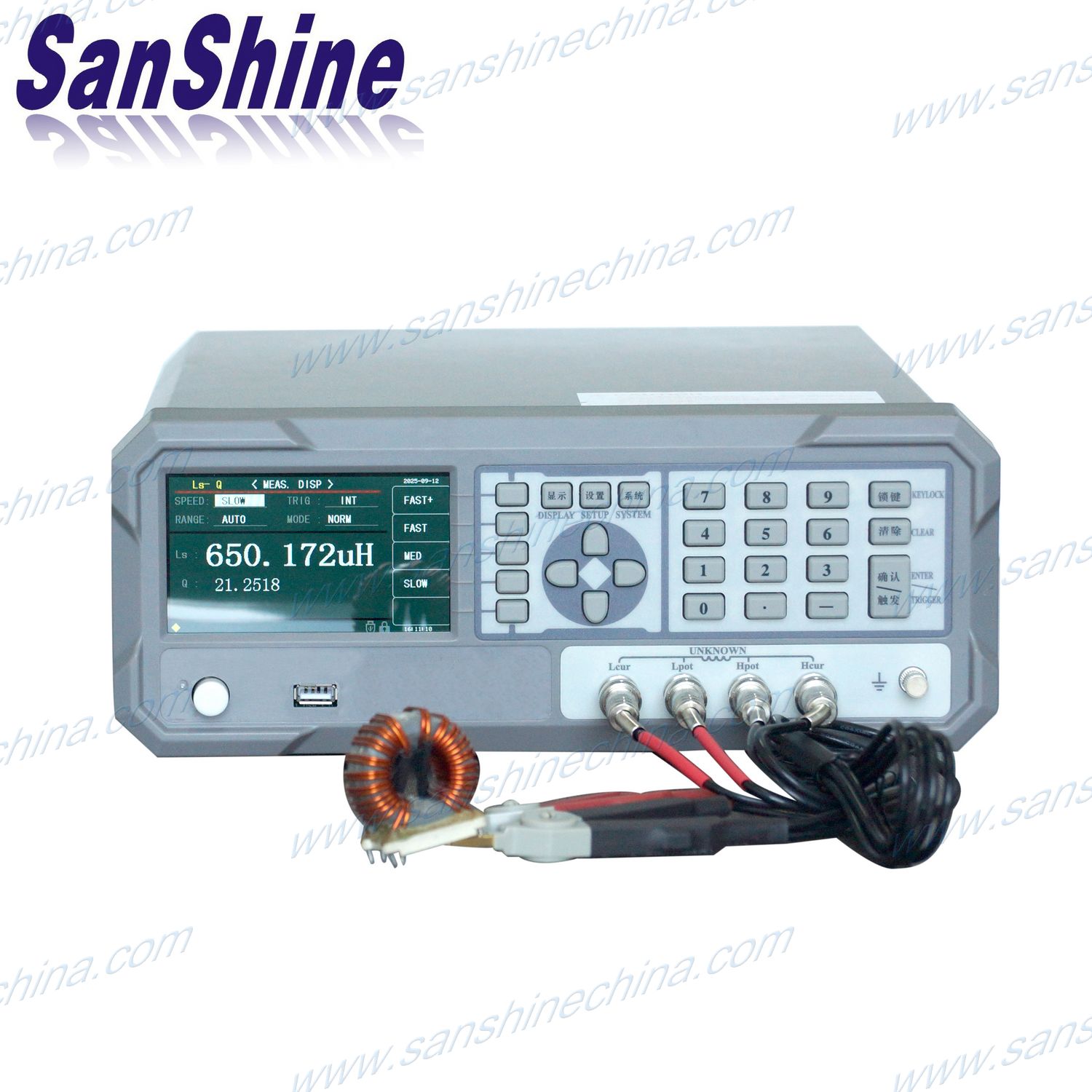

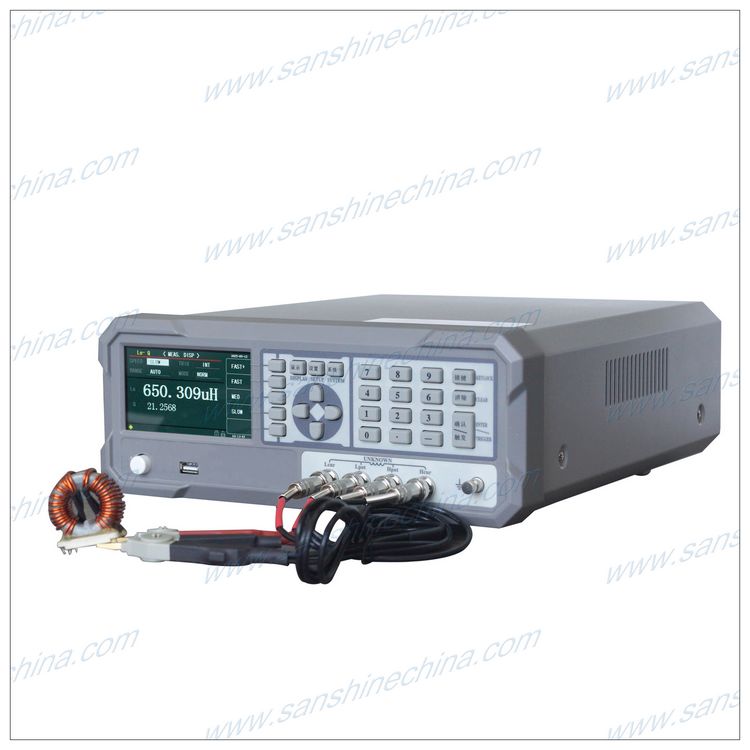

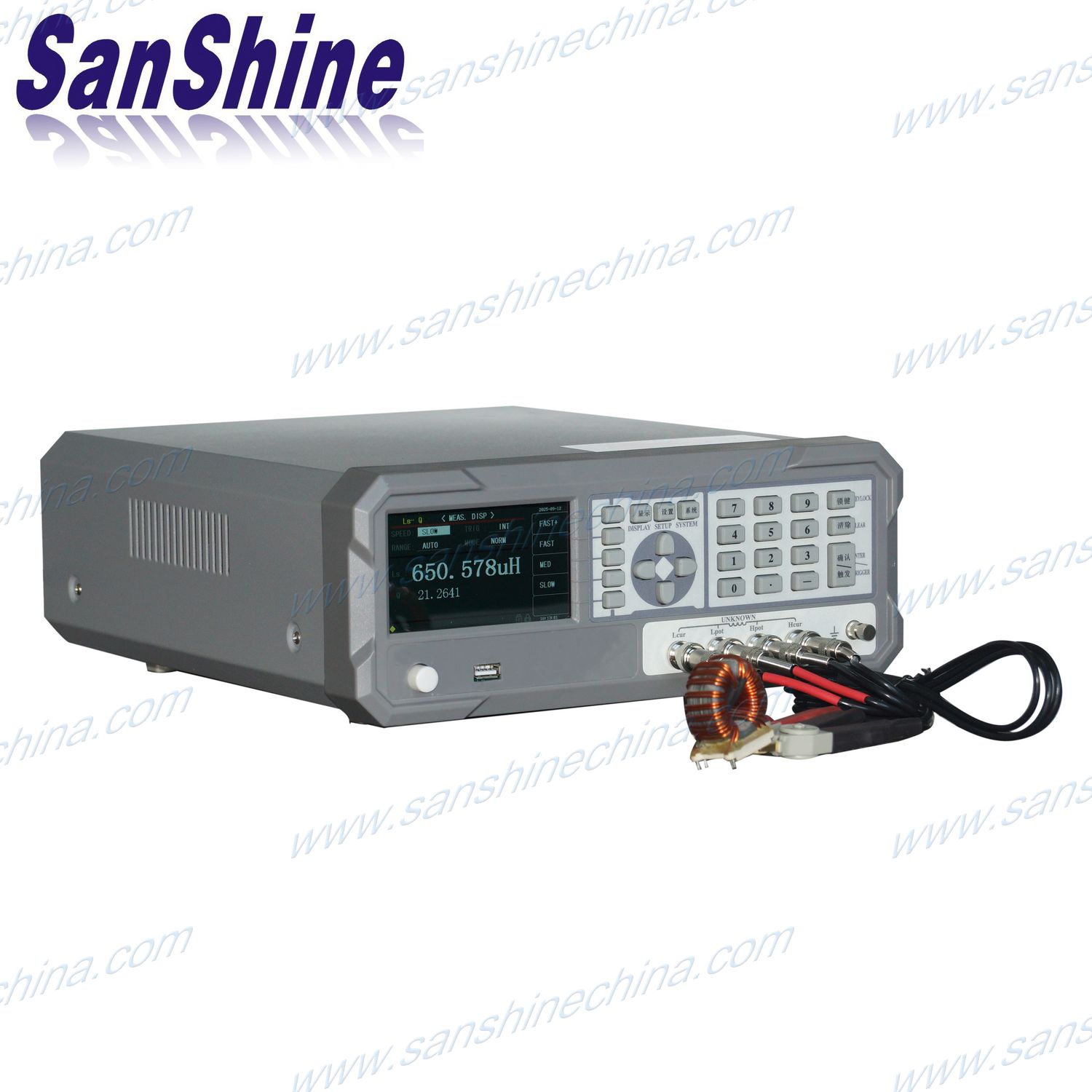

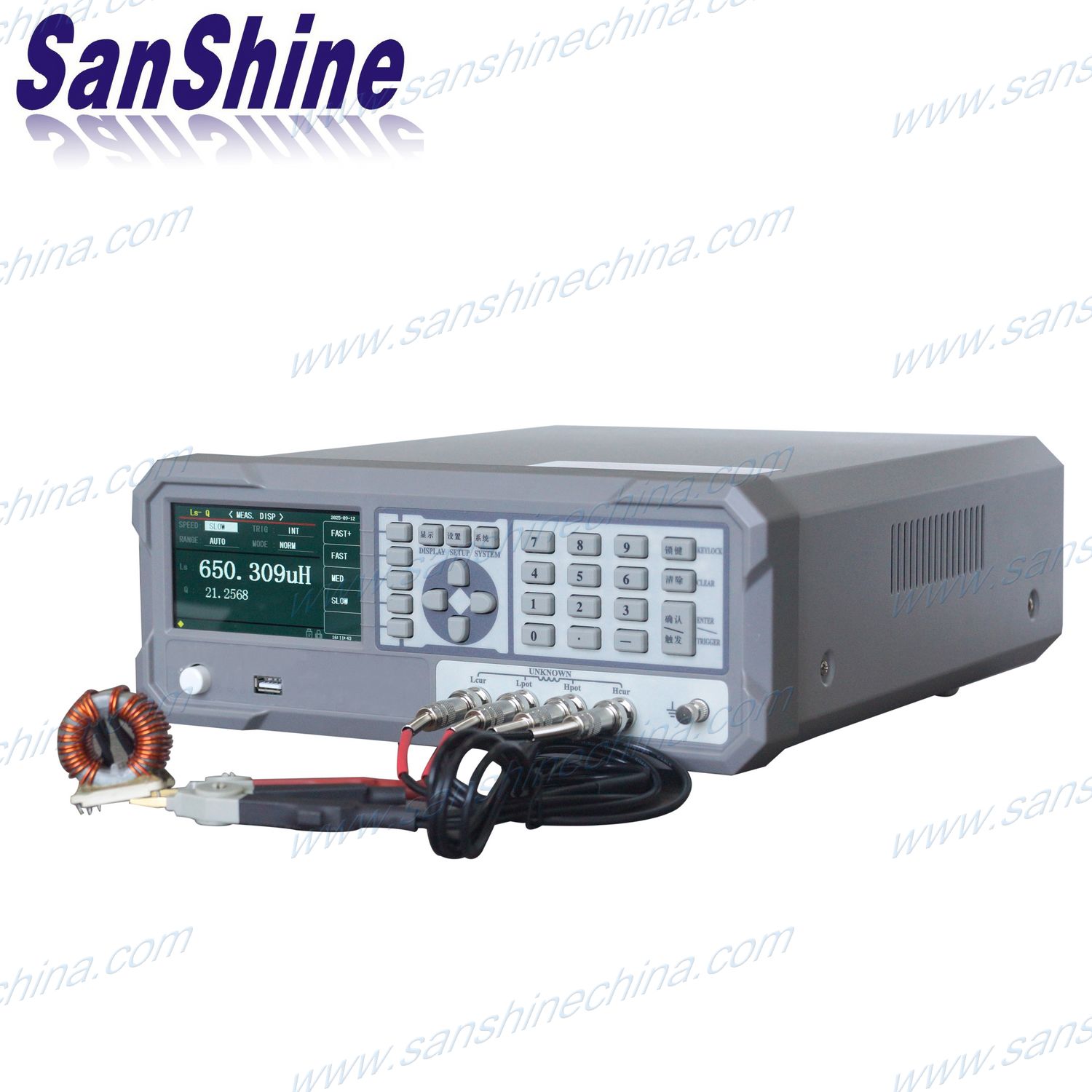

Product name : SS2818A/B Precision LCZ Tester
Description :
The SS2818A/B Precision Precision LCZ Tester stands as a professional impedance measuring instrument engineered for high-precision (±0.1% basic accuracy) and long-term stability, boasting rapid testing response (<5ms typical), an ultra-wide measurement range (1mΩ to 100MΩ), and expansive data storage (up to 10,000 sets). Powered by an advanced 32-bit ARM microprocessor and featuring a 4.3-inch high-resolution color LCD, its intuitive menu-driven interface ensures streamlined operation, supporting versatile measurement modes including routine testing, comparative analysis, component sorting, and sweep scanning.
With robust data management capabilities—enabling mass storage and quick retrieval of test parameters and results—it delivers actionable insights for product quality control and characteristic evaluation, effectively addressing diverse testing requirements across industries. Complemented by integrated Handler interface and RS-232C serial communication, the tester facilitates seamless integration into automated testing systems, enabling remote control and real-time data transmission for enhanced workflow efficiency.
Key feature :
1.4.3-inch color screen display
2.Test frequency: 50Hz to 200KHz, arbitrarily settable (SS2818A only)
3.Test frequency: 50Hz to 200KHz, 37 selectable fixed frequency points (SS2818B)
4.Test level: 10mV～2V with 10mV step (When the internal resistance is 10Ω, the maximum settable voltage is 1V)
5.Basic accuracy: 0.05%
6.High-speed and efficient measurement: up to 32 times/second
7.Load correction: The instrument performs calculation and correction according to specific samples and parameters to obtain the required test data.
8.Comparator function: After setting one or more sets of range values for the parameter items of product measurement, the instrument can compare the obtained measured values with the set values to determine whether the product is qualified or unqualified.
9.Real-time recording of measurement results, with relevant information such as measurement date, product measurement data file name, and statistics of daily measurement times; data is not lost when the device is turned on or off
10.File management function: Can store 100 sets of product test data
11.Sorting function: Subdivides product grades and cooperates with the control mechanical sorting system to sort and classify products.
12.Voltage (V) and current (I) test signal level monitoring function
13.Can perform scanning measurement on up to 8 frequency points or 8 voltage points, and display the measurement results simultaneously

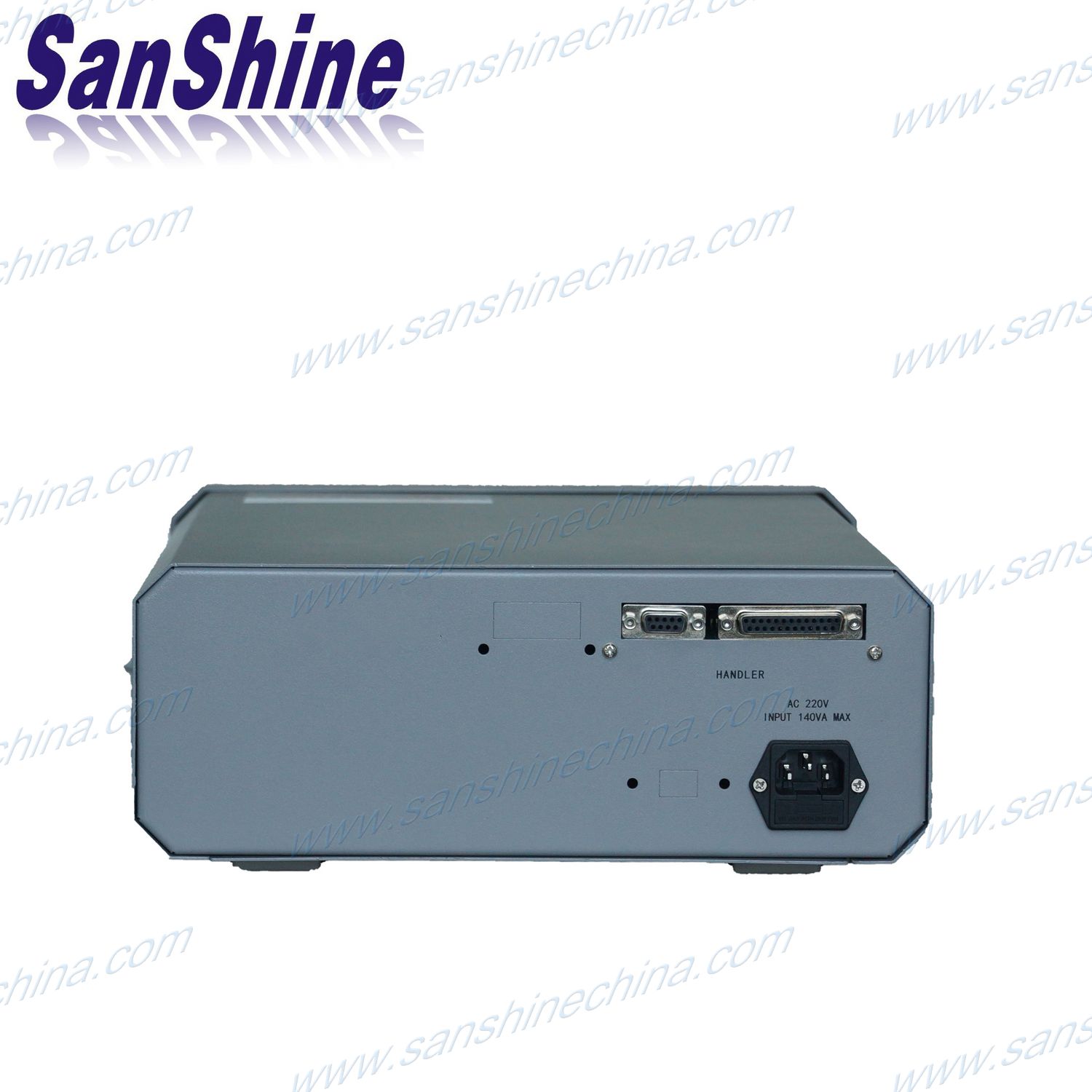

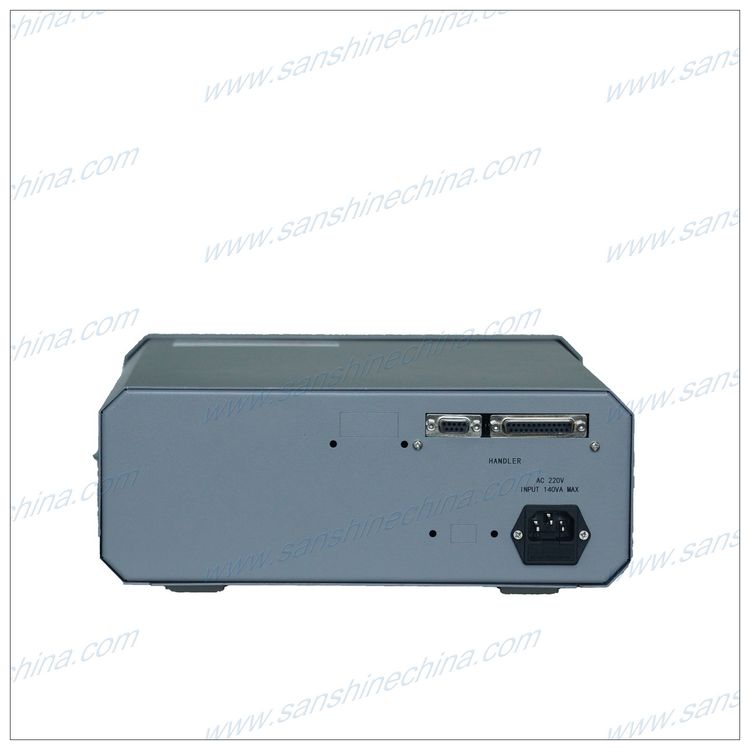

13.Communication interface: RS232C/HANDLER
Ordering Information
SS2818A Precision LCR Digital Bridge
SS2818B Precision LCR Digital Bridge
Instrument Accessories
SMD Test Leads
Test Box
Test Probe
Four - Terminal Test Clamp
GPIB Interface Board
Data Acquisition Software
Specification :
General Specifications:
Temperature & Humidity | 0℃-40℃,≤90%RH | |
Power Supply | Voltage | 200-240V |
Frequency | 60Hz | |
Power Consumption | ≤60 VA | |
Dimensions (W×H×D) | 300mm×120mm×360mm | |
Weight | Approximately 3.5 kg | |
Specifications:
Measurement Functions | ||
Measurement Parameters | Ls-Q, Ls-Rs, Lp-Q, Lp-Rp, Cs-D, Cs-Rs, Cp-D, Cp-Rp, Z-deg (angle), Y-deg (angle), R-X, G-B (conductance, susceptance) | |
Basic Accuracy | 0.05% | |
Testing Speed | Fast: 32, Medium: 9, Slow: 4 (times/second) | |
Equivalent Circuits | Series, Parallel | |
Trigger Modes: | Internal, Manual, External | |
Calibration Functions | Open/Short, Full-frequency reset to zero，Single-point frequency reset to zero | |
Display | 4.3-inch color screen | |
Memory | 100 groups internally, multiple groups via external USB flash drive | |
Testing Signals | ||
Testing Frequency | SS2818A | 50Hz-200KHz, Resolution: 10mHz |
SS2818B | 20Hz-200KHz, 37 commonly used frequency points | |
Output Impedance | 10Q,30Ω,50Ω,100Ω | |
Testing Level: | 10mV～2V, Resolution: 10mV | |
Measurement Display Range | ||
Z,R,X | 0.01mΩ~9999.99MΩ | |
Y,G,B | 0.01nS～999.999S | |
C | 0.00001pF～9999.99mF | |
L | 0.01nH～9999.99H | |
D | 0.00001～9.99999 | |
θ(Deg) | -179.9°-179.9° | |
Q | 0.00001～99999.9 | |
