Video: SS-HSTO01 electric heat shrinking tunnel oven
SS-HSTO01 electric heat shrinking tunnel oven working video(need enter password to watch)
(Server in China)

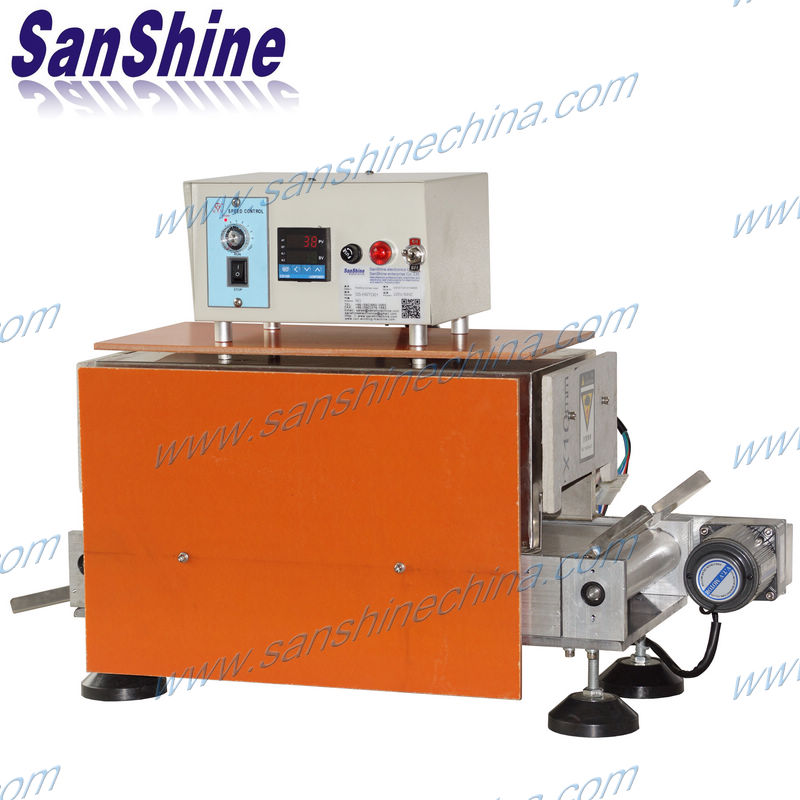

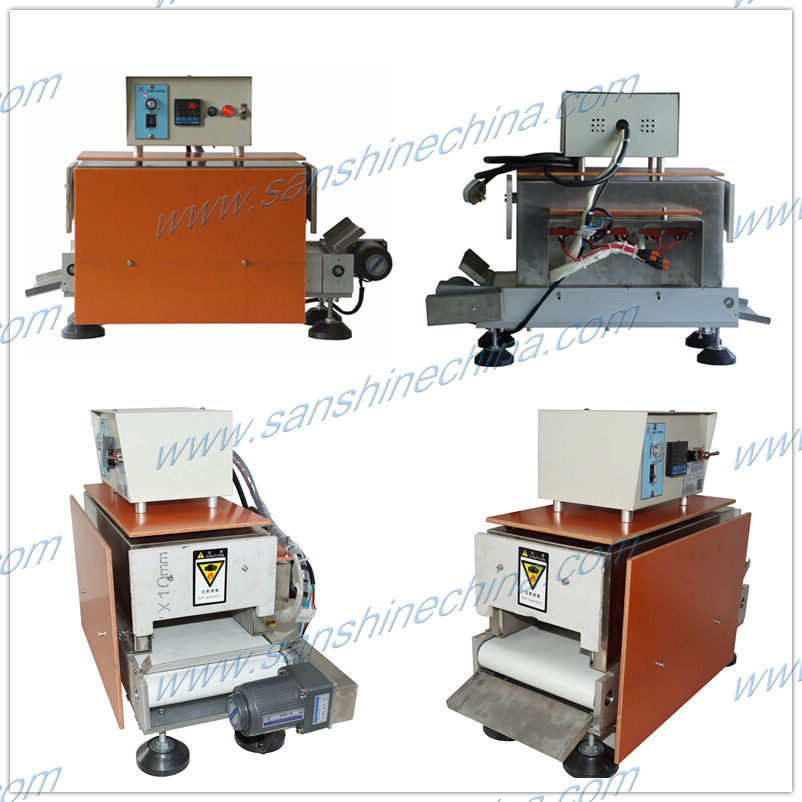

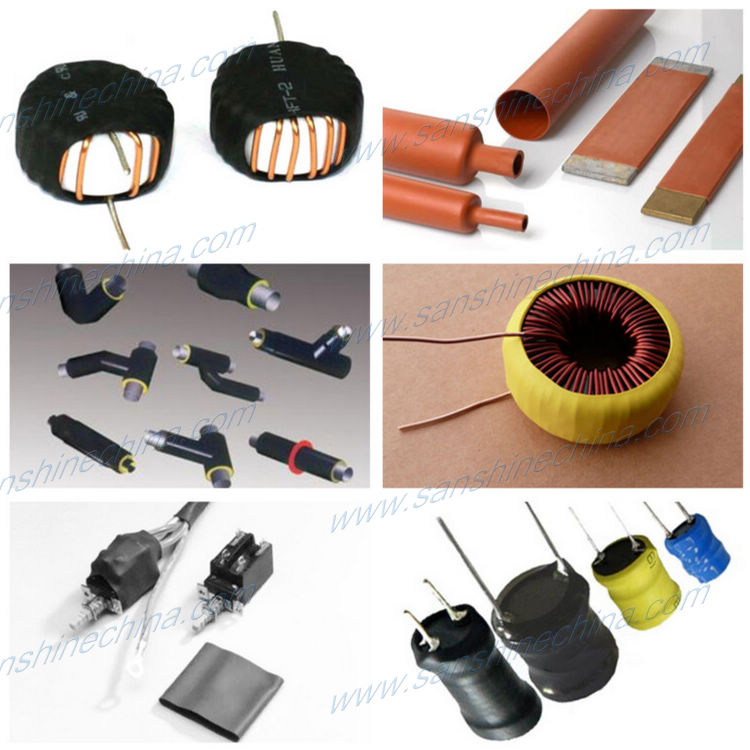

This (SS-HSTO01) industrial Heat shrink tubing oven adopts the electric heating rods to heat.It is designed specifically for shrinking the heat shrink tubing and shrink film, heat shrink packing, heating shrinking insulation sleeve / tube/ harness, etc.(for shrink-wrap process, electronics cables, electrical harness, electrical cables, electronics components, electrical parts, battery, label of bottle, toys, hardware, etc. ).

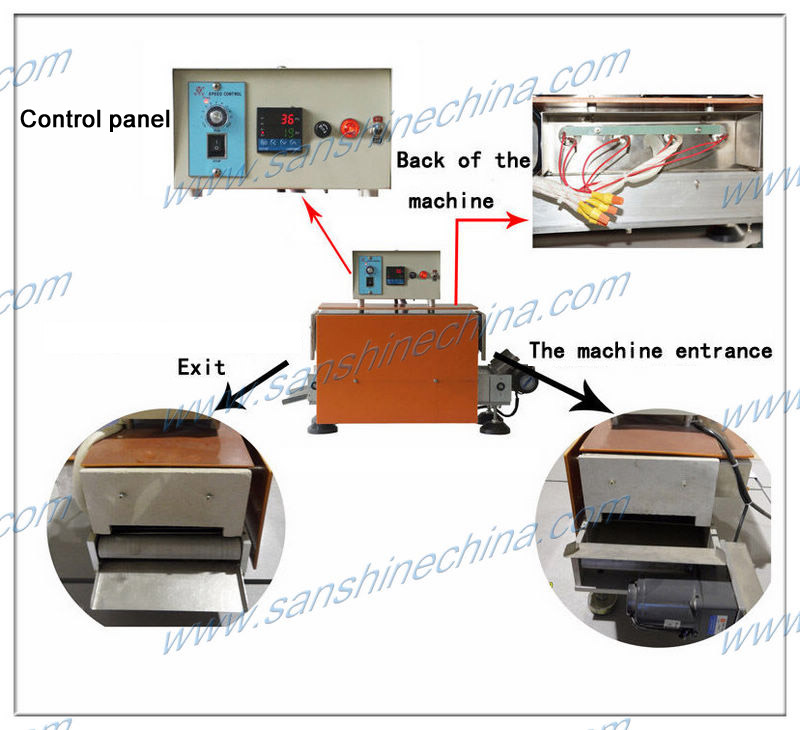

(SS-HSTO01) Heat shrink tubing oven adopts the precision programable digital temperature controller and the conveyor speed controller, the conveyor motor is a speed reducing motor.
The (SS-HSTO01) is one tunnel type oven. It is perfect for manufacturing settings. Highly accurate electronic digital temperature controller and speed control allows for repeatable consistent results(easy operation.).The working temperature is invariableness by automatically.
1. machine total length: 700mm. machine total height : 450mm , machine total width : 310mm.
2. heating zone length(inner working zone): 415mm ( be customized according to user's requirements also).
3. heating zone width(inner working zone): 105mm ( be customized according to user's requirements also).
4, conveying belt width(inner working zone): 203mm ( be customized according to user's requirements also ).
5, the entryway / exit height of tunnel oven: 55mm ( be customized according to user's requirements also ) .
6, the conveying belt length of entryway zone: 65mm.
7, the conveying length of exit zone: 20mm .
8, heating way: electrical heating tubes with.
9, heating power: 2KW.
10, the speed of conveyer: 20 to 200mm per second .
11, working temperature: Inner temperature 200º C± 3º C ( be customized according to user's requirements also).
12, power source: single phase 220V 50/60Hz.
13, conveying belt : Nylon.
14, Operating ambient temperature range: 10 to 40 deg. C
*****This heat shrink tubing oven can be customized according to user's requirements, welcome to inquire****
