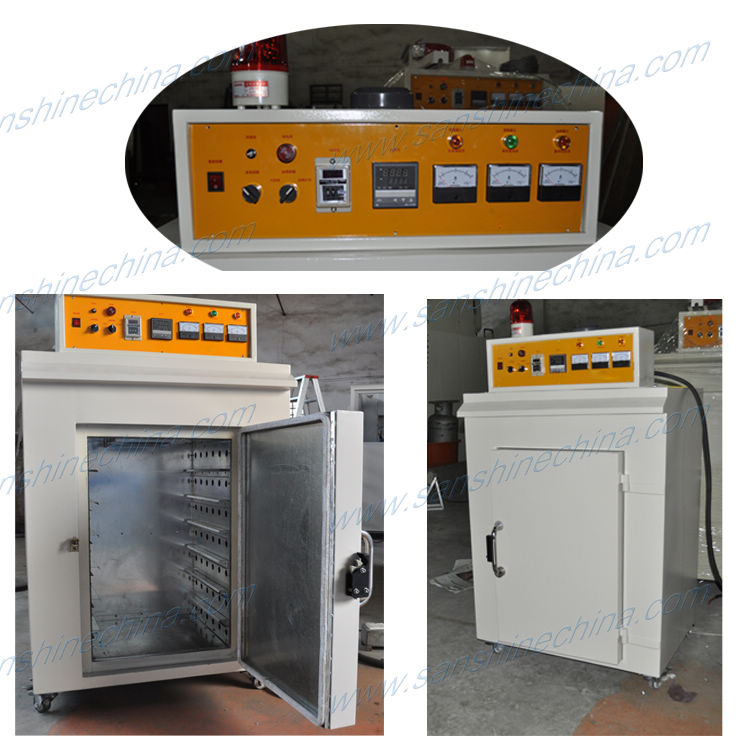

This (SS-OV01) hot air cycle industrial electric oven adopts the principle of level wind conveying and the precision digital programable temperature controller, It is applicable to the drying and warming solid of all parts. It is widely used for drying industries enamel paint,insulation varnish of inductor,insulation varnish of transformer, insulation varnish of motor, insulation varnish of relay, capacitor, toys, hardware, bag glue for leather goods, gypsum products and silicon glue forming etc.
Functions and features :
1. Digital temperature controller,Automatic constant temperature; The work temperature can be set according to the product of requirements.
2. Have the alarm function and over temperature protection.
3. The work time can be set. When the setting time ends, the operation can be stopped automatically.
4. Safe and reliable, convenient operation.
Technical parameter :
1. Overall structure: The outer box is soldered by the conversion of 1.5mm iron boards. The interlayer is filled with 80K chrysotile for heat preservation. The way of wind conveying is level wind conveying.
2. The electric heating system: Use 3-phase 4-line 380V, the total power is about 6KW.
3. Wind conveying system: Motor 3-phase 4-pole 380V, the diameter of fan is 9 inches (powerful multi-wing B direction)
4. The functions of control system include phase, circuit break, short circuit, overloading, over temperature, explosion prevention and environmental protection.
5. Work thermostatic scope: 0º C~250º C (the temperature be made by user's request)
6. Thermal difference: ± 1º C~3º C
7. Inside empty size of oven: Height 800* Width 500 *Deepth 500mm (the size be made by user's request)
8. The color of machine can be changed.
we can customize the high temperature industrial oven according to user's requirements,welcome to inquire.
