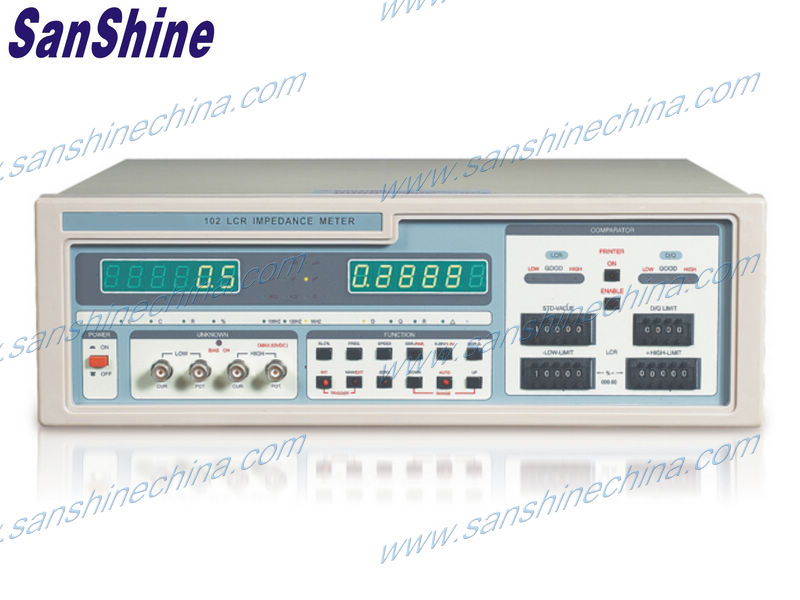

The (SS100/ SS101/ SS102)  LCR meter are a  basic passive component testing equipment, can be used in quality management department or production process for quality inspection.Like as: transformer, inductor, resistor, capacitor, relay, motor, generator, eletric valve, contactor,cable,wire,etc..This series LCR meter ,offering different kind of testing fixtures,can improve testing precision and reduce the difference value of error code, being a economical and useful basic testing instrument.

Features :

Testing frequency: 100HZ, 120Hz, 1KHz

Basic accuracy: 0.2%

Order information :

SS100

SS101

SS102

4-pin testing clips(within tester)

Testing pen(optional)

SMD testing wire(optional)

Testing case(optional)

Specification:

Model	SS100	SS101	SS102
Measuring parameter
Primary screen	(L),(C),(R)	(L),(C),(R)	(L),(C),(R)
Secondary screen	Quality factor(Q),Dissipation factor(D),Resistance(R)	Quality factor(Q),Dissipation factor(D),Resistance(R)	Quality factor(Q),Dissipation factor(D),Resistance(R)
Measuring signal
Measure level(voltage)	0.25V	0.25V	0.25V / 1.0V
Measure frequency	100Hz(120Hz)，1kHz	100Hz(120Hz),1kHz	100Hz(120Hz),1kHz
Frequency acuraccy	±0.25%	±0.25%	±0.25%
Output impedance	10Ω,1KΩ,100KΩ at 0.25V measrure voltage	10Ω,1KΩ,100KΩ at 0.25V measrure voltage. 　10Ω,100Ω,1KΩ,10KΩ,100KΩ at 1.0V measrure voltage.	10Ω,KΩ,102KΩ
Measure range
Primary parameter	L:0.1μH～9999.9 H	L: 0.1μH～9999.9 H	L: 0.1μH～9999.9 H
	C: 0.1 pF～99999 μF	C: 0.1 pF～99999 μF	C: 0.1 pF～99999 μF
	R: 0.0001Ω～99.999 MΩ	R: 0.0001Ω～99.999 MΩ	R: 0.0001Ω～99.999 MΩ
Secondary parameter	Q: 0.0001～999.9	Q: 0.0001～999.9	Q: 0.0001～999.9
	D：0.0001～9.999	D：0.0001～9.999	D：0.0001～9.999
Basic accuraccy	0.20%	0.20%	0.20%
Measuring speed(1KHz)
High speed	3 measure/second	6 measure/second	3 measure/second
Medium speed	3 meas./sec.	3 meas./sec.	3 meas./sec.
Low speed	3 meas./sec.	3 meas./sec.	3 meas./sec.
Trigger	Internal	Internal / External(Manual)	Internal / External(Manual)
Screen
L, C, R	5.5 PCS digits	5.5 PCS digits	5.5 PCS digits
Q, D, R	4.5 PCS digits	4.5 PCS digits	4.5 PCS digits
Equivalent circuit pattern	In series, parallel	In series, parallel	In series, parallel
Revision  function	Return-to-zero	Return-to-zero	Return-to-zero
External adding base voltage	None	DC: 0 ~ 35V	DC: 0 ~ 35V
Judgement mode	None	pass or fail be judged by automatically	pass or fail be judged by automatically
General speicification
Operating environment	Temperature: 10℃~ 40℃   Humidity: 10%~ 90%RH	Temperature: 10℃　40℃   Humidity: 10%　90%RH	Temperature: 10℃　40℃   Humidity: 10%　90%RH
Consumed power	Maximum 45VA	Maximum 55VA	Maximum 55VA
Power supply	90V～125V or 190V～250V, 48Hz～62Hz	90V～125V or 190V～250V, 48Hz～62Hz	90V～125V or 190V～250V, 48Hz～62Hz
Size(width*height*depth)	270*105*350mm	270*105*350mm	405*130*365mm
Net weight	4Kg	4Kg	6Kg
