    Product name : Programmable multifunctional angle able automatic solder dip machine (SS-RT01)



    Description :
    The Multi-functional automatic angle able soldering / tinning / dip machine (SS-RT01 ) adopts precise digital tinning controller and servo motors. It is best for soldering SMT components and Coils(SMT / SMD transformers inductors) which require soldering(tinning) at an angle like choke coils.
    Feature :
    1. Multi-function and multi-purpose automatic soldering machine.
    2. Most suitable for soldering SMD components or for coils ( Inductors, transformers, relays, choke, valve, contactor, terminals, etc.) which require soldering at an angle like chokes.
    3. Tooling can turn 360 degrees to position coils for soldering at any precise angle.
    4. Multiple coils can be soldered in one cycle. Programmable precise preheating deepth, tinning deepth and time.

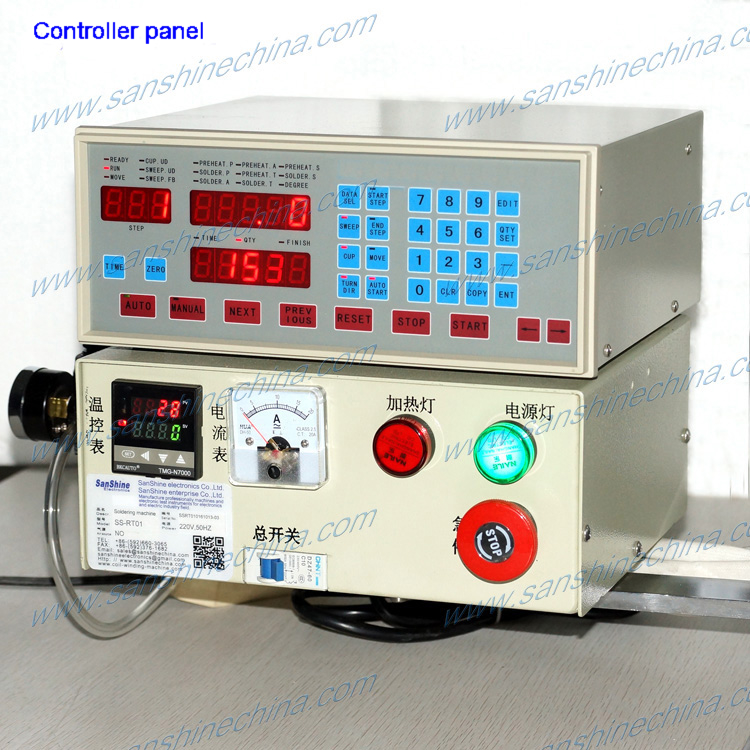

    5. 99 steps program memory plus each program can assign 10 parameters independently.
    6. The mode of each of the three sections is set by one program.
    7. Each section can be provided with additional programming parameters, angle setting, dipping height, and pre heating time.
    8. Compact and desk-mount design. Can take the tinning pins of products to traverse in the solder then go up.

    9. Process includes position to an angle, then DIP solder, then re-position to other side angle for soldering, and finally re-position to parallel for cleaning solder.
    10. Titanium inner bath tank to withstand high temperatures and reduce oxidation.
    11. Titanium DIP pot suitable for lead free solder. Temperature up to 600± 3ºC. Dip pot inner size L300*W100mm*D60mm.
    12. Side inserted heaters enable easy maintenance.
    13. Automatically clean the soldering sediment before tinning.
