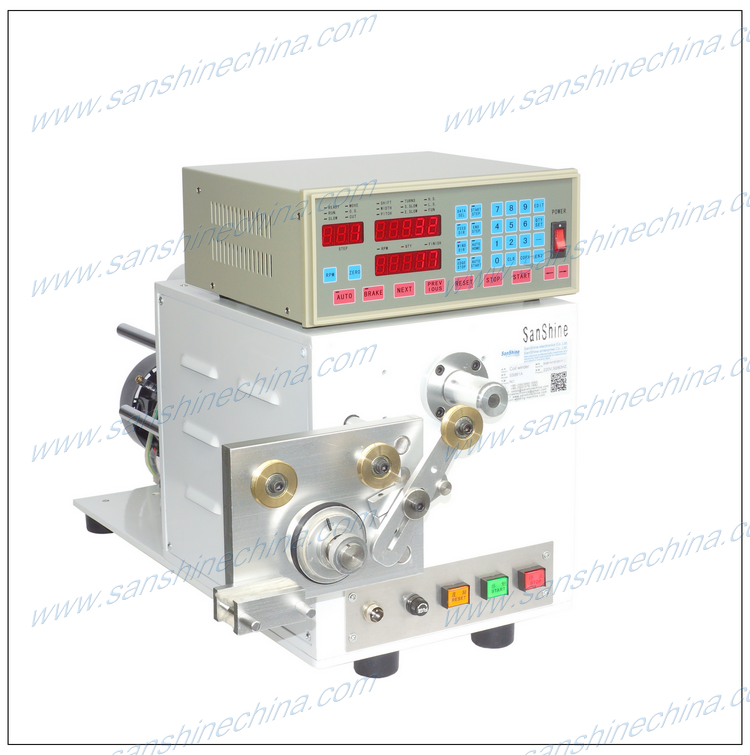

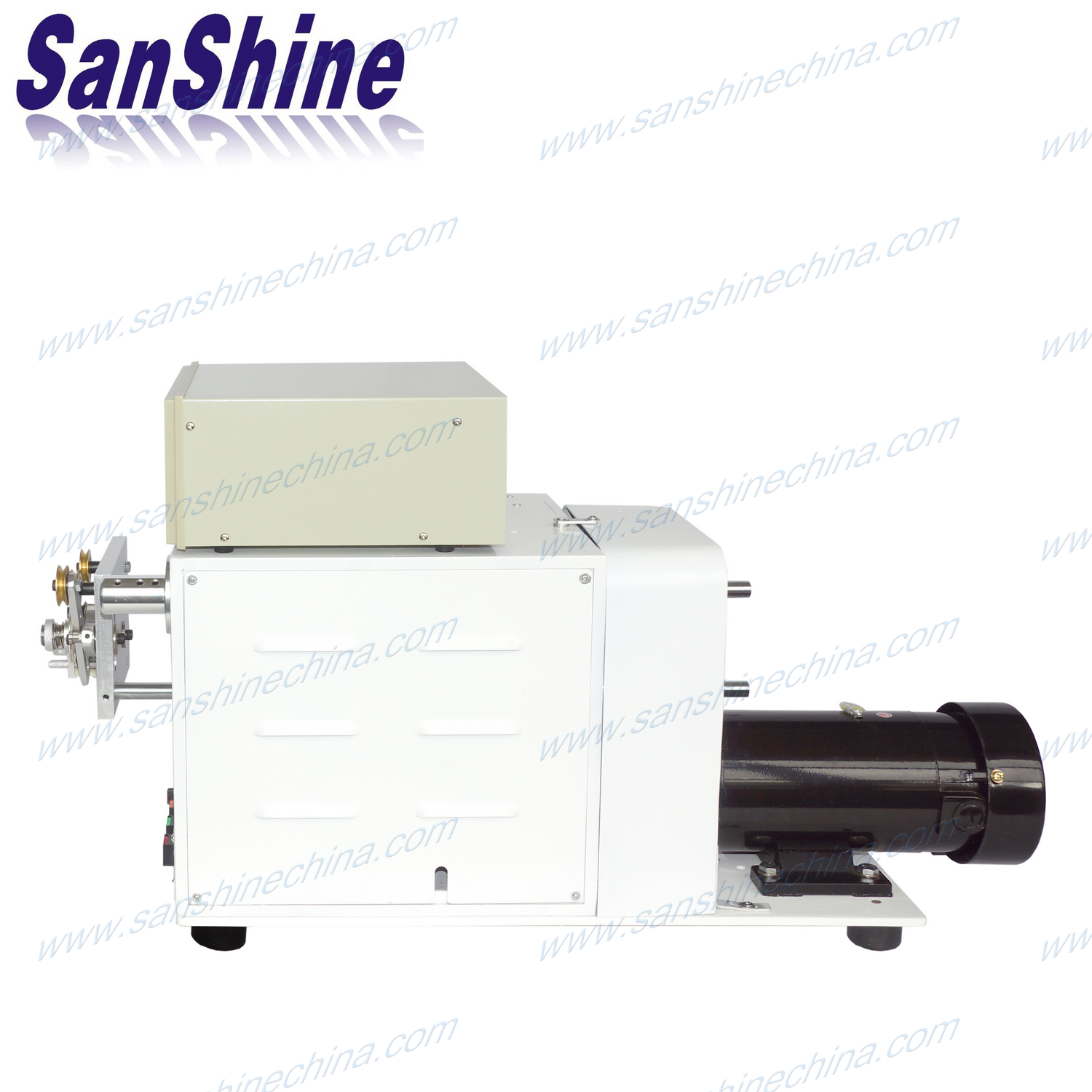

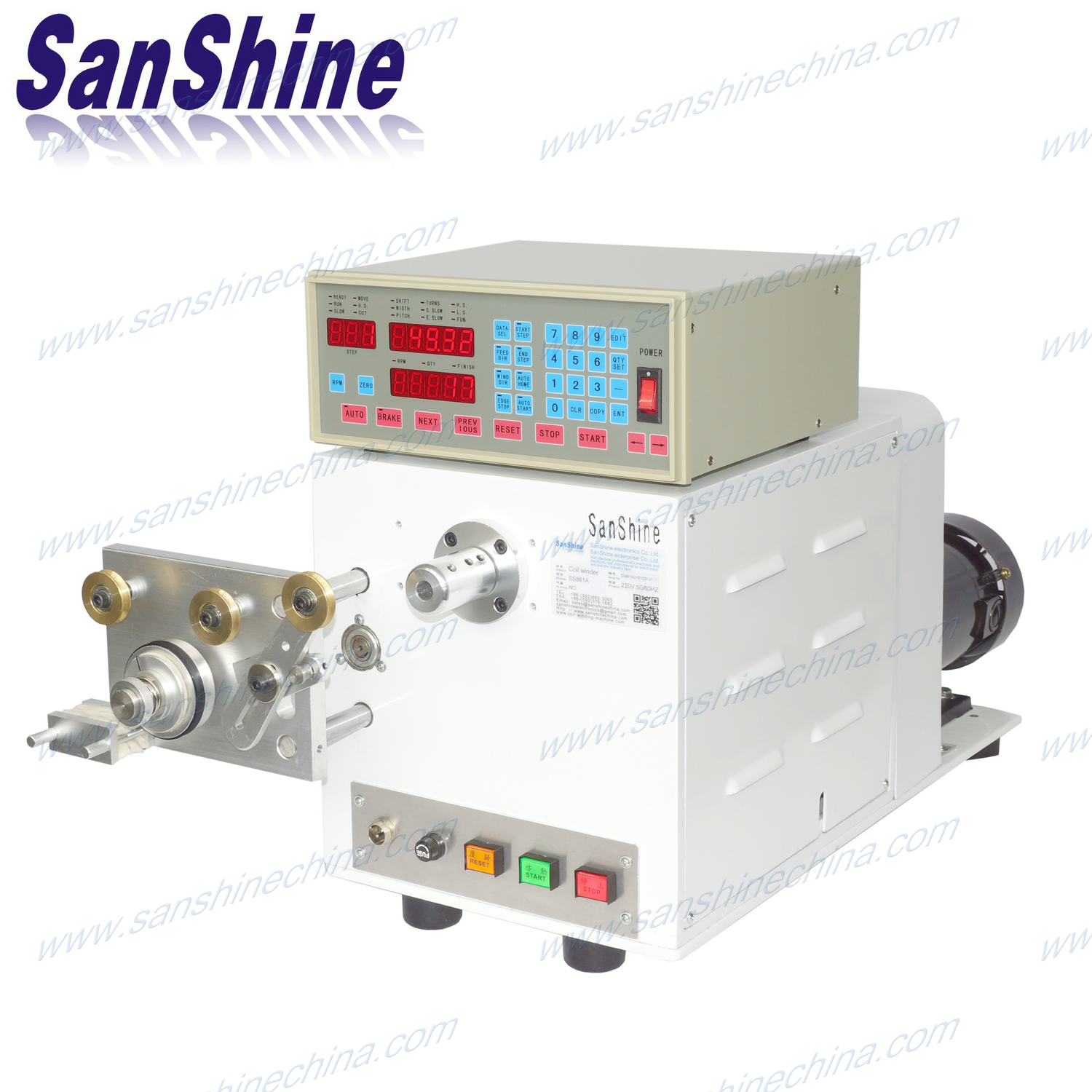

Obverse single spindle automatic coil winding machine (SS861A)
ID #:60
Send Inquiry
sales@sanshinechina.com
WhatsApp
sanshineelectronics
673469847
0086-592-6603065
WECHAT:

Video: SS861A single spindle high torsion automatic coil winding machine

Description :

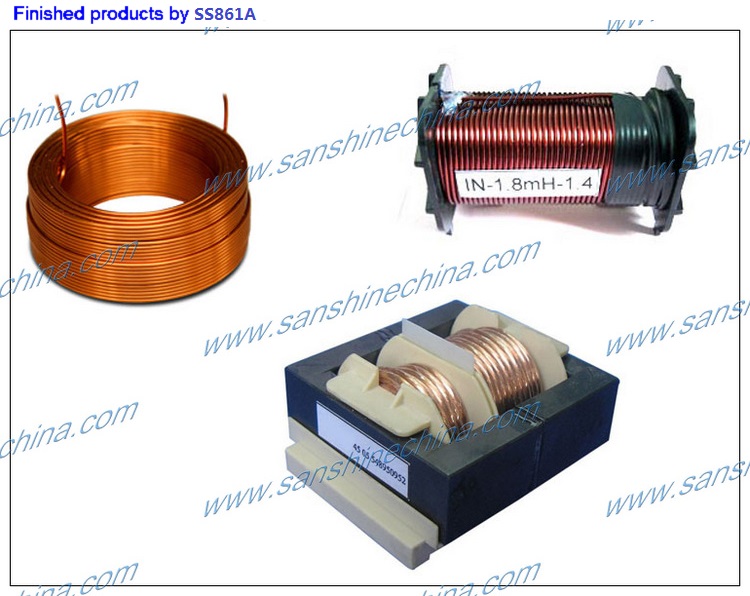

The (SS861A) obverse single spindle automatic coil winding machine is one digital programmable High-Torsion coil winding machine. It's the highest efficiency equipment. It is best choice for winding thick wire transformer, reactor, inductor, relay, ignition, contactor,electric valve, etc. .

Feature :

1. Microprocessor design, easy for program-setting.

2. Stepping motor driven by constant-current power supply, High spreading speed precise winding.

3. "Start Point " could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Wire spreading tension device spreading head.

5. Foot-switch connection for better efficiency.

8. Winding parameters and options can be set independently for each step.

9. Memory capacity accommodates 999 steps of parameters with off-power memory retention.

Specification :

Model	SS861A
Spindles	1
Wire size	0.2~ 3.0mm
Spread pitch	0~ 9.999mm
Spread width	150mm (Max. )
Coil diameter	100mm (Max. )
Spindel motor	DC Motor 500W
Spread motor	Stepping motor
Max. speed	3000RPM
Memory	999 Sequences
Power source	AC220V ±10%, 50/60 Hz
Dimension (cm)	76x40x40
Net weight(Kg)	56
