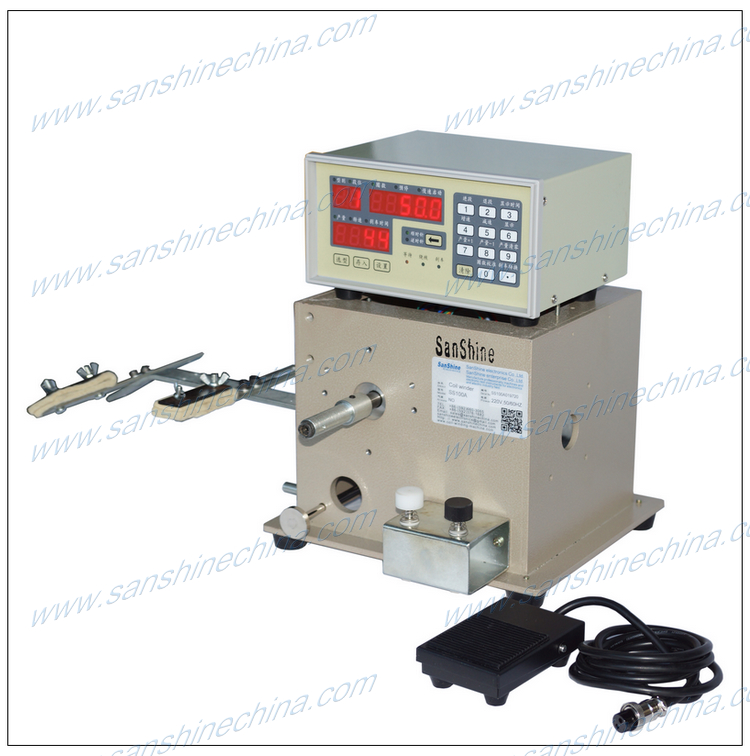

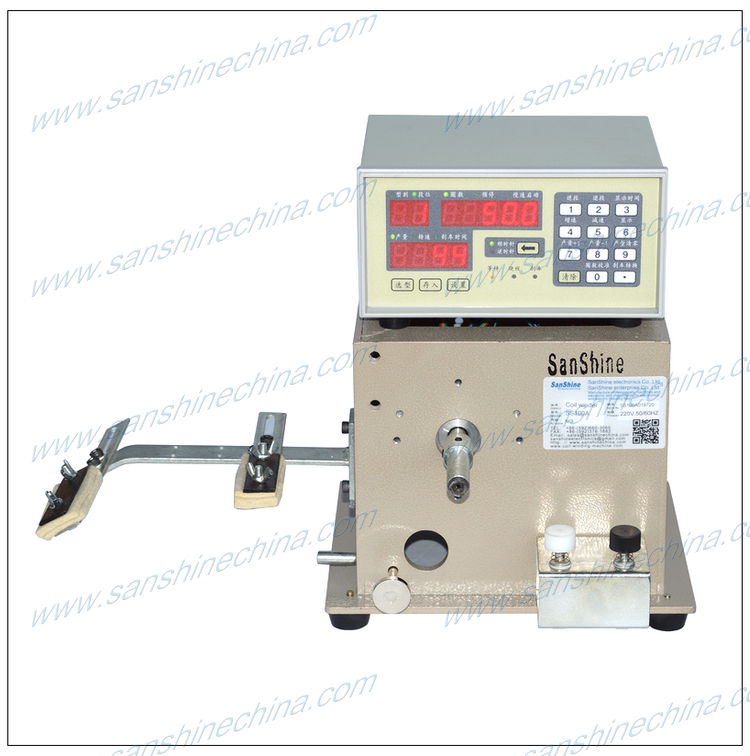

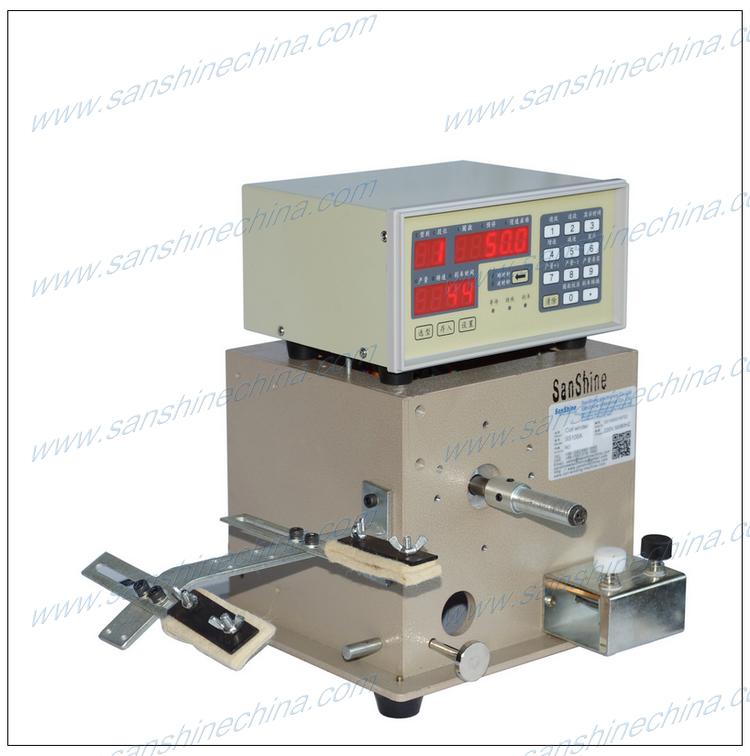

SMD or SMT or drum core inductor winding machine (SS100A)
Product 23/27  Automatic linear coil winding machine  Automatic speaker voice coil winding machine (SS600V)  Automatic transformer coil winding machine (SS600)
  • SMD or SMT or drum core inductor winding machine (SS100A)
  • SMD or SMT or drum core inductor winding machine (SS100A)
  • SMD or SMT or drum core inductor winding machine (SS100A)
  • SMD or SMT or drum core inductor winding machine (SS100A)

    Video: (SS100A) SMT / SMD / drum core inductor winder



    SS100A SMT / SMD / drum core inductor winder working video in user's factory(need enter password to watch)

    (Server in China)


    Description :

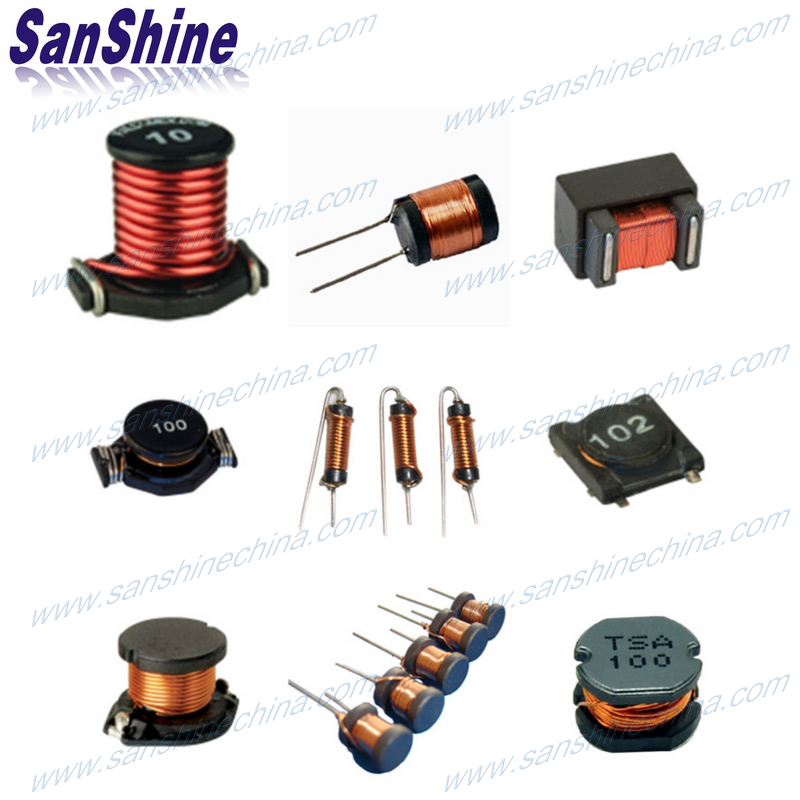

    The (SS100A) digital coil winding machine adopts digital controller, it's an accurately and reliability digital coil winding machine for winding SMT/SMD inductors and drum core inductors,unshielded SMD power inductor,shielded SMD/SMT inductors,surface mount inductors,etc.. It is very economical.
    Features :
    1. Accurately count turns of winding by photo-electricity sensor.
    2. Programmable winding direction, winding turns, winding speed, pre-stop& pre-start speed. Programmable many steps for many different windings coil.
    3. Scientific winding fixture for loading the core to wind and finished unload easy.
    4. Memory capacity accommodates 99 sequences of parameters with off-power memory retention.
    5. Spread wire by automatically.
    6. More convenience by using foot-switch.
    Specification :
    WIRE SIZE: Φ 0.02~1.2mm
    SPEED: 300 ~8570rpm
    WINDING MOTOR: DC brushless Motor
    MEMORY CAPACITY: 999 Steps
    POWER SOURCE: AC220V/110V ±10%, 50/60 Hz
    BRAKE WAY: Use the reverse electromotive force of motor.
    Wire size Φ 0.02~1.2mm
    Speed 300 ~8570rpm
    Winding motor  precise DC brushless motor
    Memory capacity 999 Steps
    Power source AC220V/110V ±10%, 50/60 Hz
    Brake way  Use the reverse electromotive force of motor


    Related drum core inductor winding machine(SS100B)
    2 spindles drum core inductor winding machine(SS100C)
