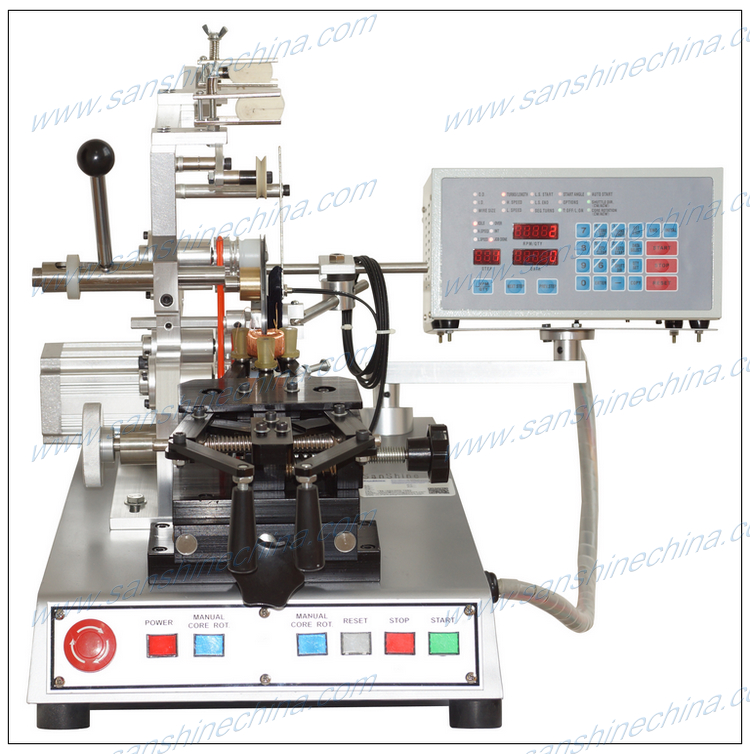

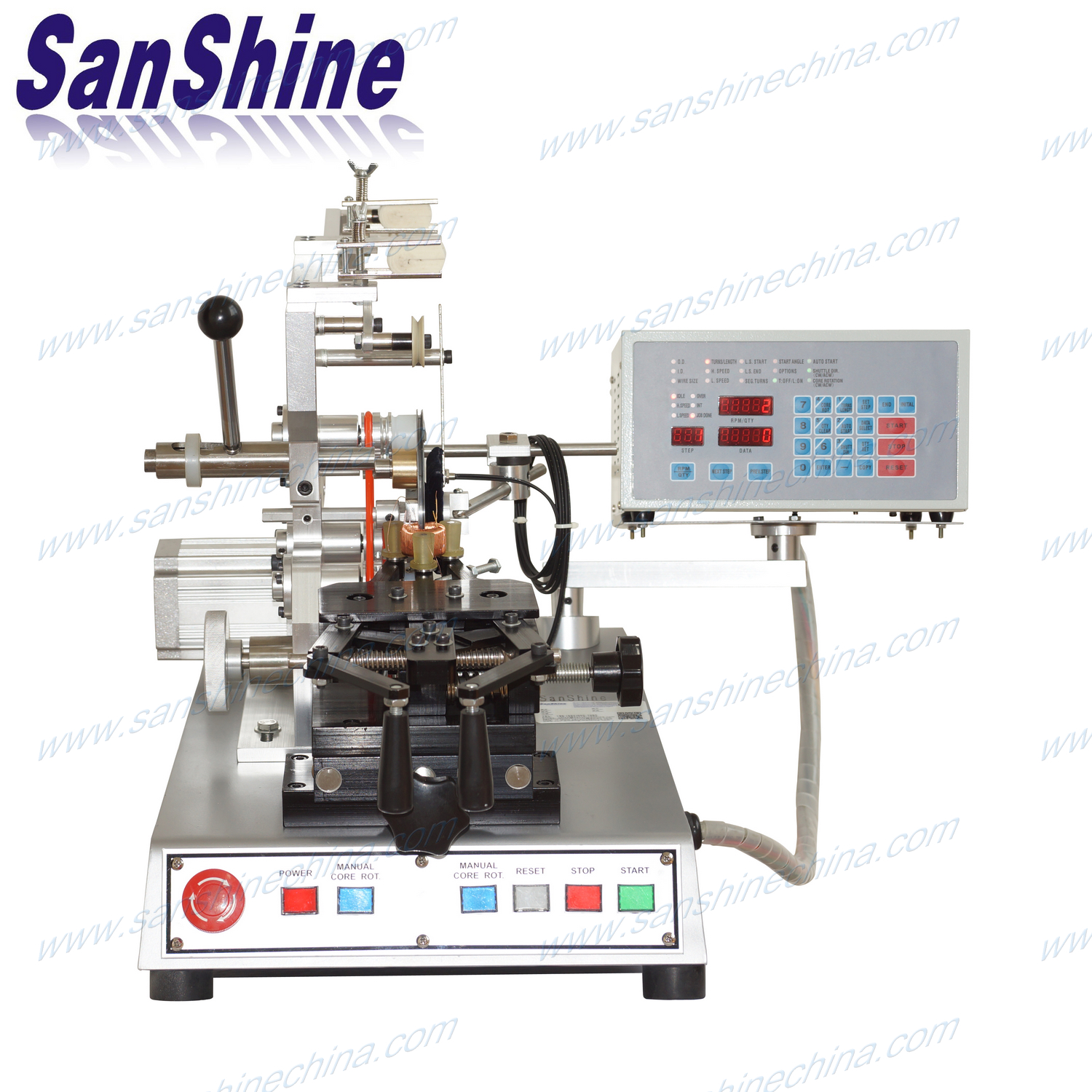

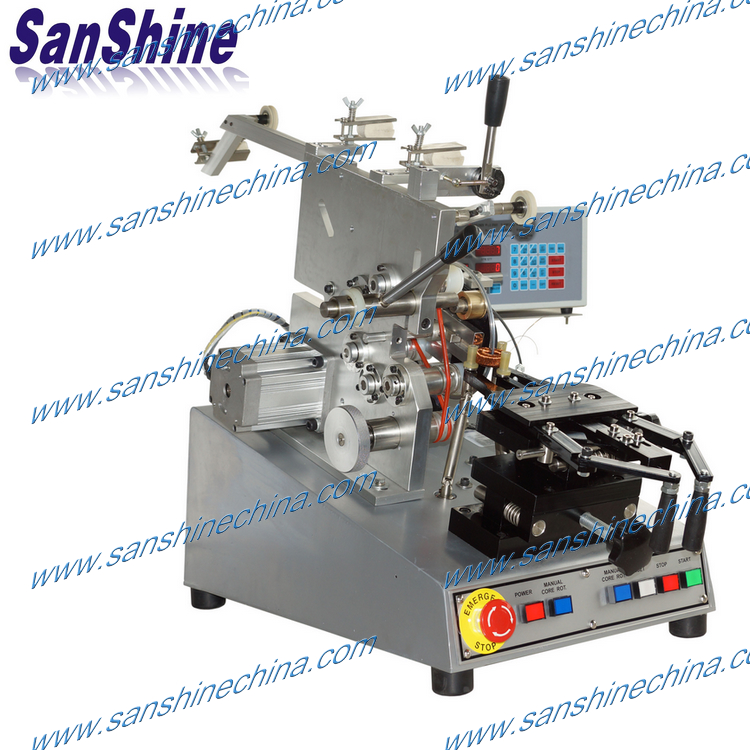

Slider type automatic toroid coil winding machine (SS900S series)
Product 12/13  Automatic toroid coil winding machine  Belt type automatic toroid coil winding machine (SS900B series)  Automatic super big toroidal winding machine (SS1001)
  • Slider type automatic toroid coil winding machine (SS900S series)
  • Slider type automatic toroid coil winding machine (SS900S series)
  • Slider type automatic toroid coil winding machine (SS900S series)
  • Slider type automatic toroid coil winding machine (SS900S series)
  • Slider type automatic toroid coil winding machine (SS900S series)


    Product name : Slider type automatic toroid coil winding machine (SS900S)



    Description :

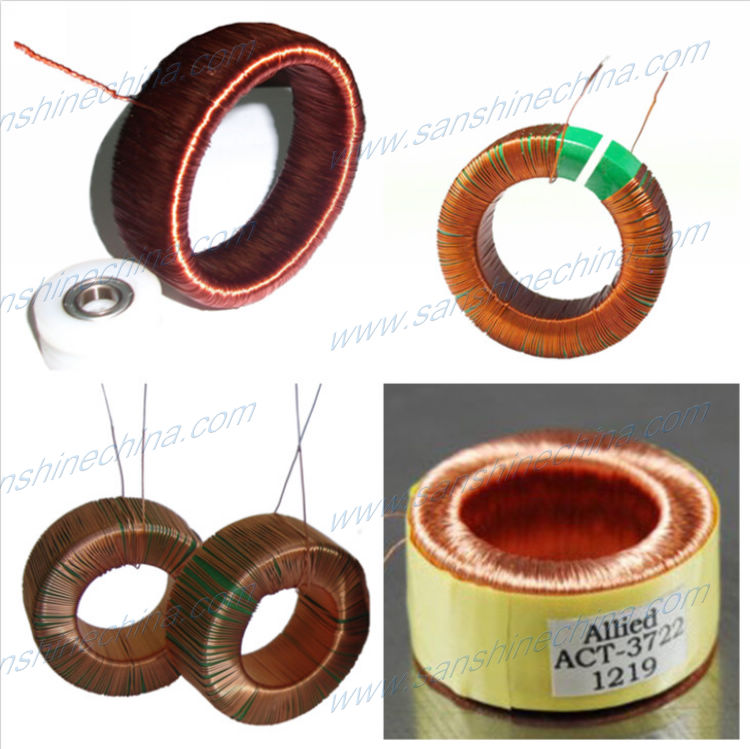

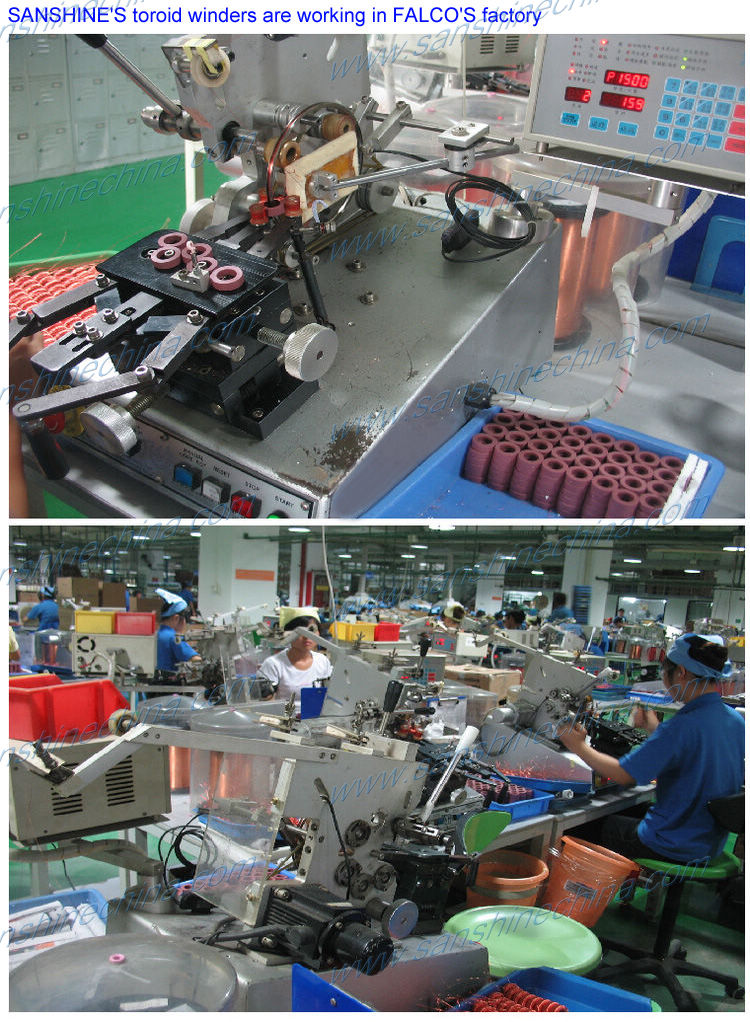

    The (SS900S series) automatic toroid coil winding machine include (SS900S series) and (SS900B sries ). The (SS900S series) digital automatic toroid winding machine adopts CNC toroid controller,it is slider type winding shuttle.It's an accurately and reliability digital toroid-winding machine. Is used for toroidal inductor,toroidal transformer,toroidal current transformer,toroidal current sensor,toroidal coil,toroid chock coil,power inductors,power magnetics,UPS inductor,  converter inductors, watter metter sensors, etc.

    Features :

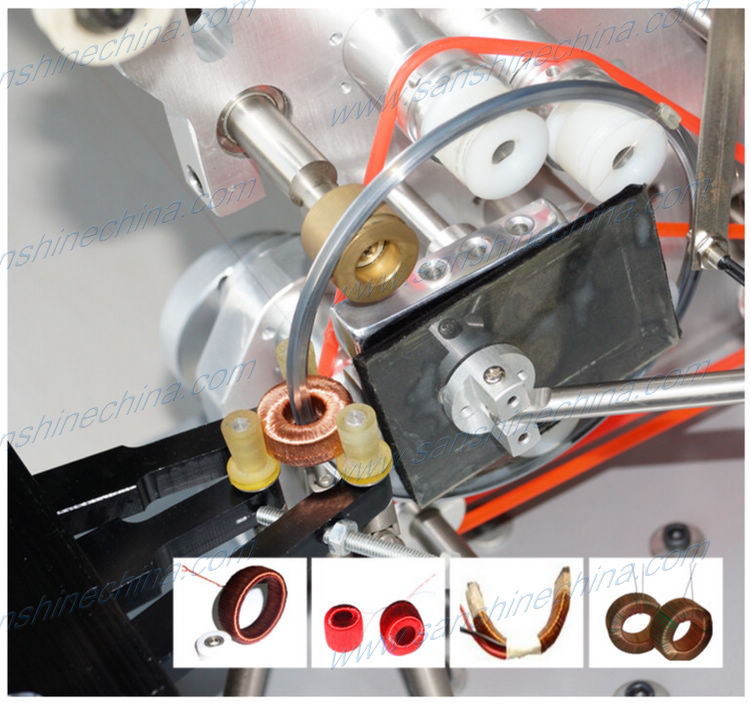

    1. Collocate slider type winding head,interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire size, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.

    2. Hi-tech shuttle for highest efficiency.

    3. Separate speed controls for wire loading and winding.

    4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.

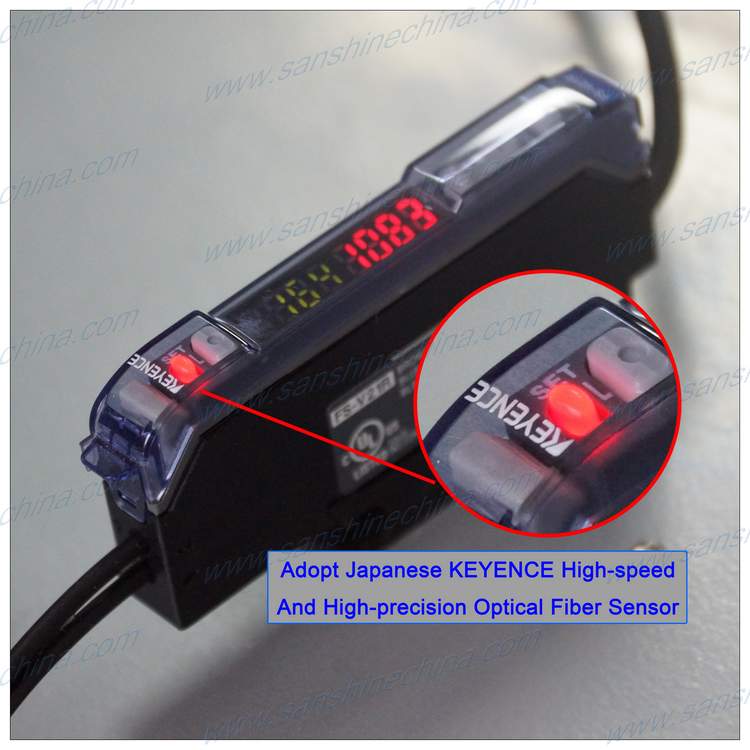

    5. Accurately count turns of winding by high frequency response photo-electricity sensor.

    6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.

    7. Accurately wire spacing by programmable controller.

    8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.

    Specification :

    Copper wire diameter: 0.05 ~0.6mm (will be different by different model,different shuttle size and coil height. )

    Min. Finished ID: 4.5mm  (will be different by different model,different shuttle size and coil height. )

    Finished OD range: 5~150mm (will be different by different model,different shuttle size and coil height. )

    Max. Speed: 1800rpm

    Winding motor: 1/2HP DC brushless motor

    Spread motor: Stepping motor

    Memory capacity: 999 steps

    Power source: AC220V /110V +10%, 50/60 Hz

    Dimension: L60x36x64(cm)

    Net weight: 40kgs

    Model Universally matched shuttle model Copper wire diameter range(mm) Min. inside diameter of finished coil (mm) Out side diameter of finished coil range (mm) Height of finished coil range (mm)
    SS900S4 2.6 3.0 3.5 or customized 0.05 ~0.3 4.5 5 ~60 3 ~25
    SS900S63.5 5.0 6.3 or customized0.08 ~0.35710 ~805 ~45
    SS900S8 8 10 12 15 or customized 0.3 ~0.6 15 20 ~150 8 ~80



    How to select the best suited automatic toroid coil winding machine for your toroid coil?

    Tell us your toroidal coil of data as below please:

    1. toroid core outside diameter before winding?
    2. toroid core inside diameter before winding?
    3. toroid core height before winding?
    4. how many windings on this core?
    5. how many turns of each winding?
    6. how about the copper wire diameter of each winding?
    7. provide pictures of product which is better.
