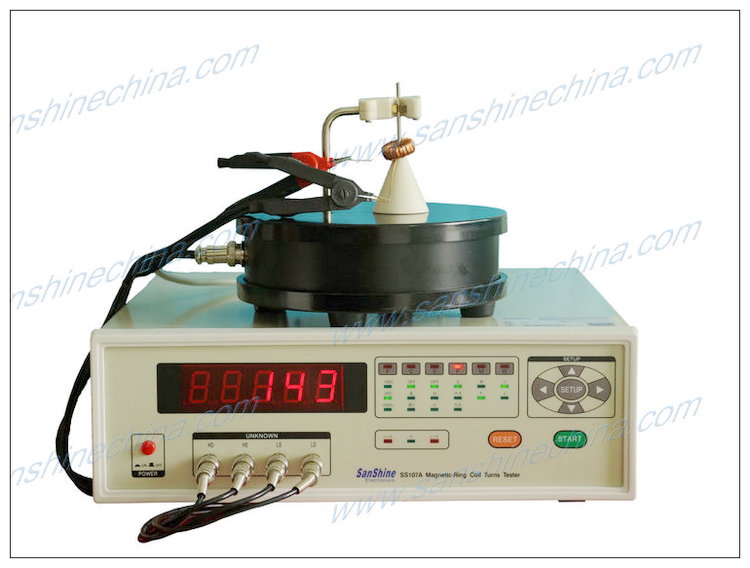

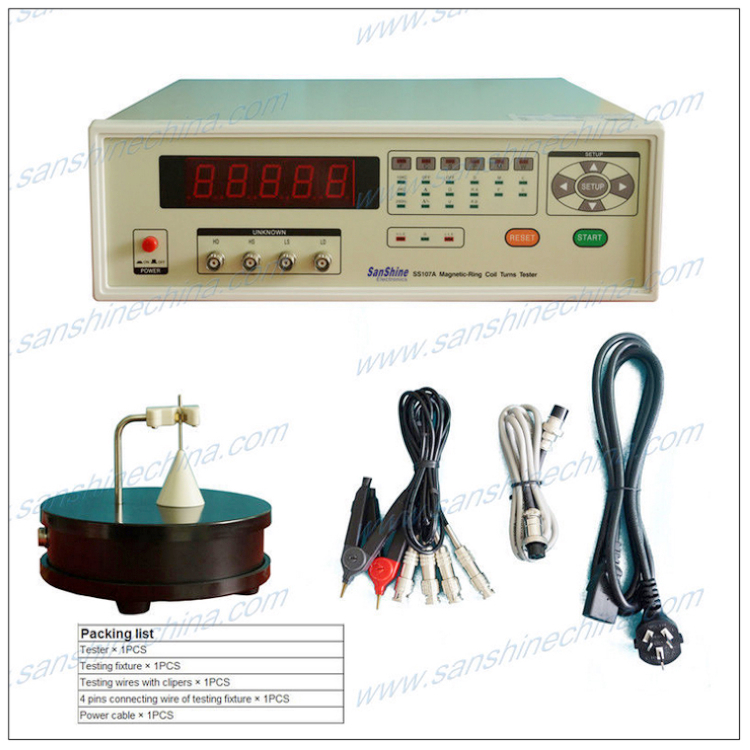

    Product name : Toroid core Coil turns tester (SS107A)

    Description :

    The magnetic toroid ring core winding Coil turns tester (SS107A) adopts the high speed center microprocessing unit circuits and precise measurment A/D circuits. This Coil turns tester is used to count the coil turns of various toroid core winding coils. Like as : toroid core inductors, toroid core transformers, toroidal core sensors, wate meter sensors, toroid current transformers, toroid core choke coils, etc. . This turn tester is named magnetic ring core coil turn tester also.

    Feature :
    1. CPU control and digital display.
    2. Operation easy.
    3. Open and short revising function
    4. Set up the parameter limited for automatic judgement with buzzer.

    Specification :

    ModelSS107LSS107A
    Testing parameterscoil   turns of toroid core , inductrance L , quality factor Q of toroid core coilcoil   turns of toroid core
    Finished toroid coil sizesRequest finised toroid coil ID>3mm OD≤90mm( can customize tester for the   more bigger sizes coil) if use the black testin platform(fixture). Request   finised toroid coil ID>0.5mm if use 1PCS cable to substitute the black   testing platform(fixture).
    Coil turns range0–20000 turns
    Turns testing accuracy± 0.1% resolution
    Inductance L Equivalent ModeSeries,   ParallelNO
    Inductance L Display Range0.0001uH–9999HNO
    Inductance L Basic Accuracy±0.1%(1+Lx/Lmax+Lmin/Lx)(1+1/Qx)(1+ks+kv+kf);NO
    Quality Factor Q Display Range0.0001–9999NO
    Quality Factor Q Accuracy±0.001(1+Zx/Zmax+Zmin/Zx)(Qx+1/Qx)(1+ks+kv+kf);NO
    Testing terminalfour terminals
    DisplayLCD   Resolution: 320×240, 5.7 inch, Blue background with white charactersLED
    Test Frequency100Hz,   200Hz, 1KHz, 2KHz, 10KHz, 20KHz, 40KHz, 100KHz2KHz,   10KHz, 200KHz
    Frequency Accuracy± 0.02%
    Test Level1.0V, 0.3V, 0.1V
    PC Communication ModeRS232   serial portNO
    Test SpeedSlow   (1 time/sec), Medium (2 times/sec), Fast (4 times/sec)2   times/sec
    Automatic distinguishing/sorting modeAbsolute   value, Percentage, Upper / lower limit, OffAbsolute   value, Percentage, Off
    Automatic distinguishing waypass   / fail / closeOver   Max.  limit  / Pass / Over Min.  limit
    Testing waycontinual / single
    Sorting OutputPLC   switch signal output, Optocoupler isolated output,  RS232 output,  LED indicatorNO
    Trigger ModeManual,   Foot switch, External, RS232Manual
    Audible Alarm OptionMute,   pass beep, fail beep, Mixed audiblePass   beep / mute / fail beep
    Storage Capacity100   storage units, External USB function is optionalNO
    Environmental ConditionsOperating temperature: 5℃–30℃ ;   Operating humidity: 20%–80%RH
    Power Input220V± 10%, 50/60Hz  <20W or 110V± 10%, 50/60Hz by request
    Dimensions (mm)tester   400(W)×130(H)×245(D)  fixture 190×160tester   350(W)× 110(H)× 390(D), fixture190×160
    Net weightApprox. 5Kg
