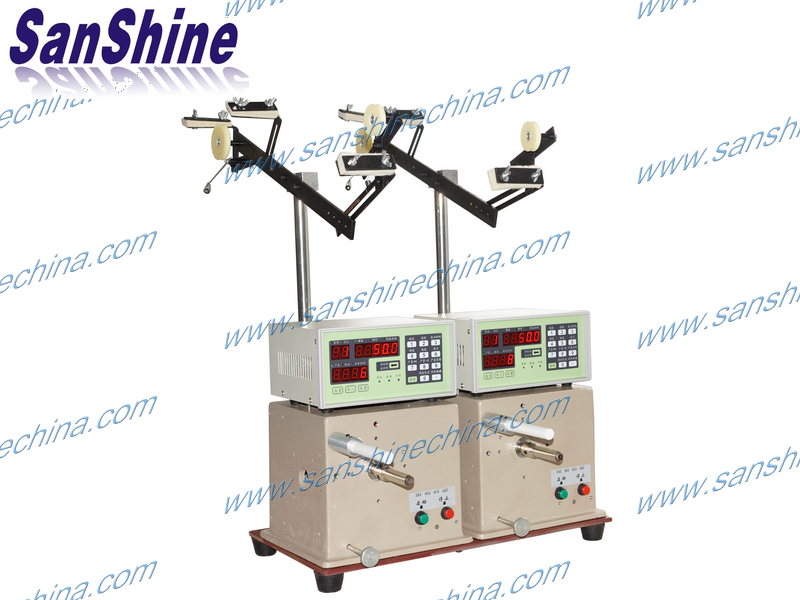

Two spindles drum core inductor winding machine (SS100C)
Product 21/27  Automatic linear coil winding machine  Drum core inductor winding machine (SS100B)  Automatic transformer coil winding machine (SS600)
  • Two spindles drum core inductor winding machine (SS100C)
  • Two spindles drum core inductor winding machine (SS100C)
  • Two spindles drum core inductor winding machine (SS100C)
  • Two spindles drum core inductor winding machine (SS100C)

    Video : (SS100C) two spindles drum core inductor winding machine


    Description :

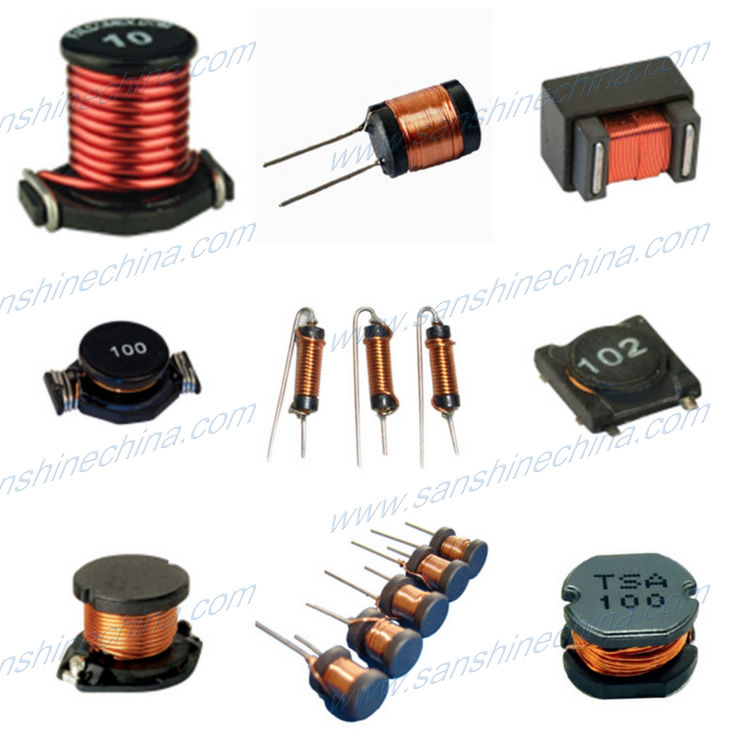

    The (SS100C) digital coil winding machine has two winding spindles,It adopts digital controller, it's an accurately and reliability digital coil winding machine for winding SMT/SMD inductors and drum core inductors,unshielded SMD power inductor,shielded SMD/SMT inductors,surface mount inductors,etc.. It is very economical.
    Features :
    1. Accurately count turns of winding by photo-electricity sensor.
    2. Programmable winding direction, winding turns, winding speed, pre-stop& pre-start speed. Programmable many steps for many different windings coil.
    3. Scientific winding fixture for loading the core to wind and finished unload easy.
    4. Memory capacity accommodates 99sequences of parameters with off-power memory retention.
    5. Spread wire by automatically.
    6. More convenience by using foot-switch.
    Specification :
    Spindles: 2 spindles
    WIRE SIZE: Φ 0.02~1.2mm
    SPEED: 300 ~8570rpm
    WINDING MOTOR: DC brushless Motor
    MEMORY CAPACITY: 999 Steps
    POWER SOURCE: AC220V/110V ±10%, 50/60 Hz
    BRAKE WAY: Use clutch.
