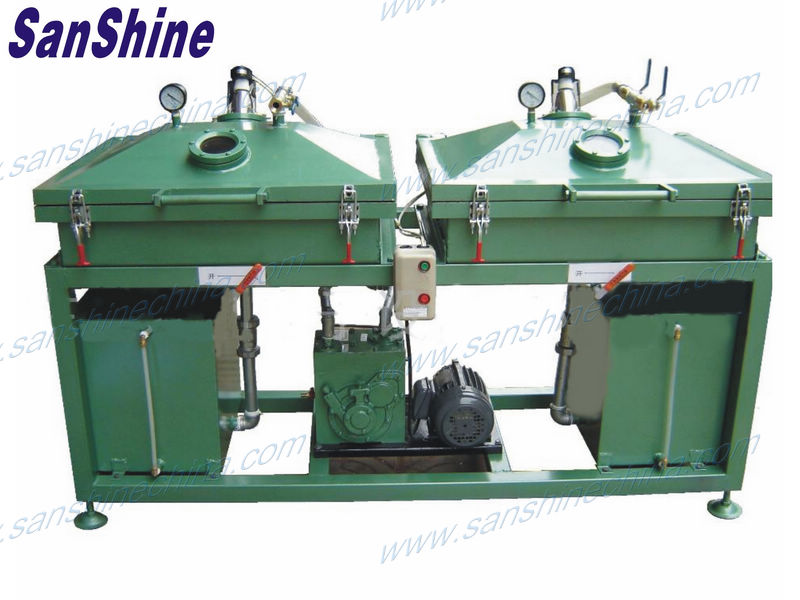

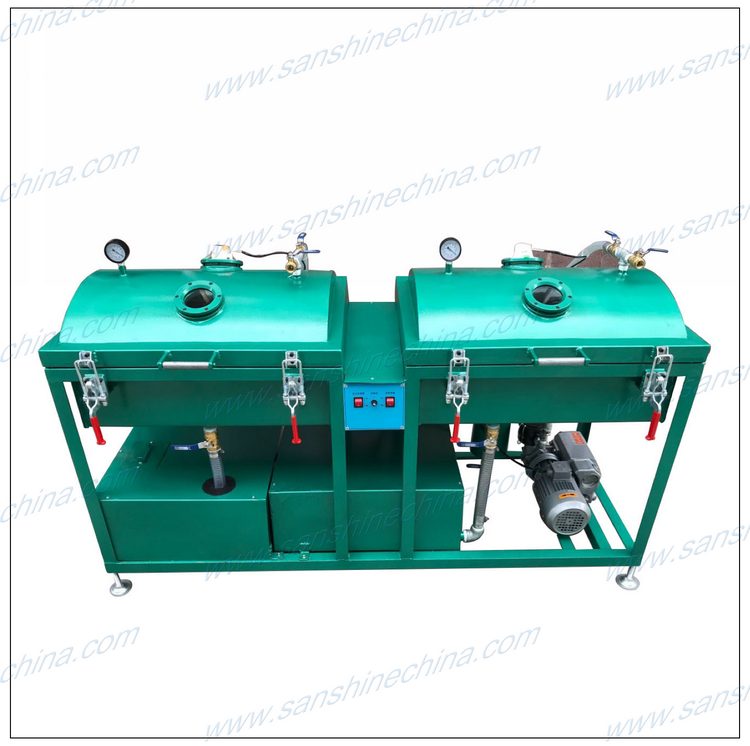

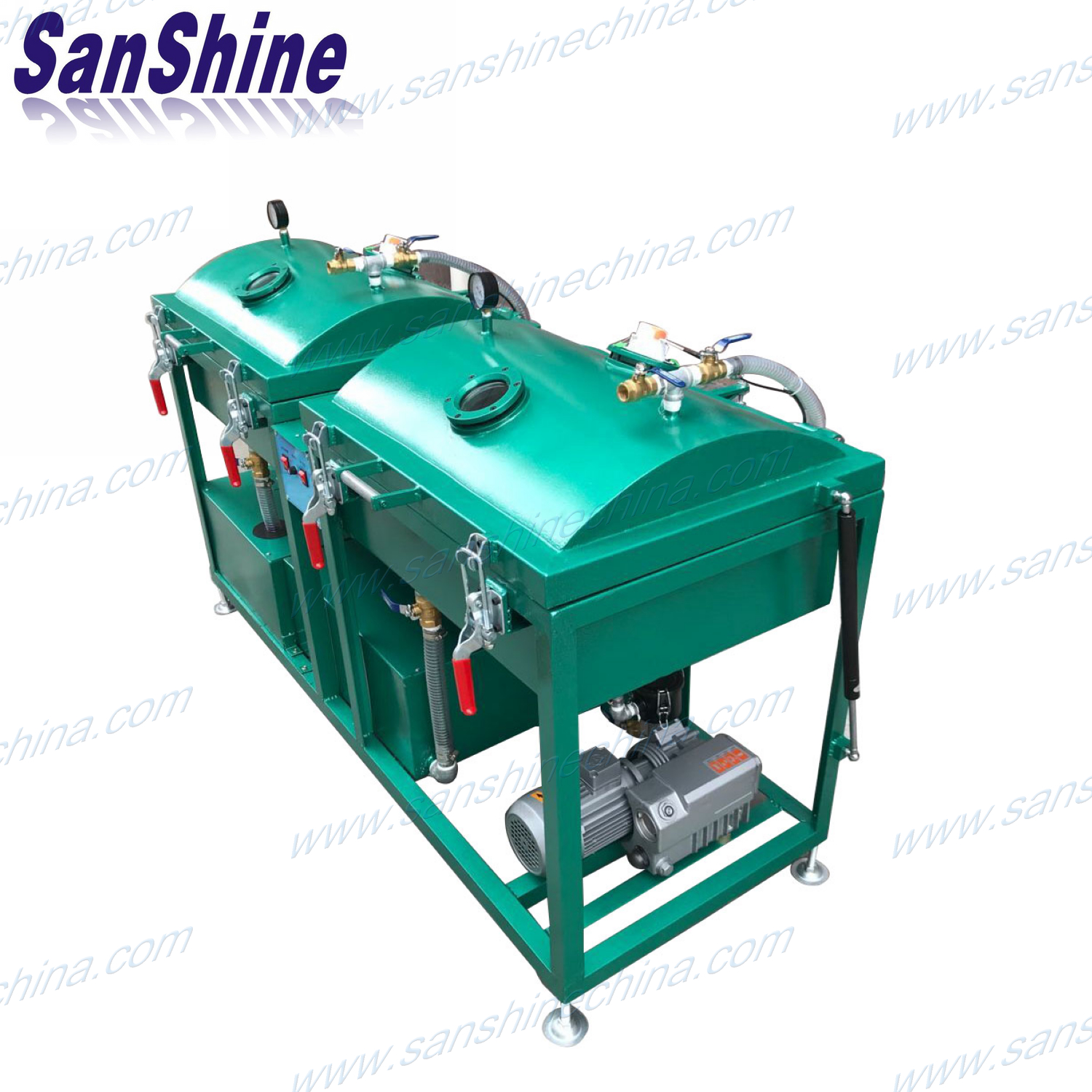

Varnish vacuum pressure impregnation machine (SS-V01)
Product 1/1  Varnish vacuum pressure impregnation machine
  • Varnish vacuum pressure impregnation machine (SS-V01)
  • Varnish vacuum pressure impregnation machine (SS-V01)
  • Varnish vacuum pressure impregnation machine (SS-V01)

    Video: Varnish vacuum pressure impregnation machine working in user's factory in Russia.



    SS-V01 Varnish vacuum pressure impregnation machine working video in user's factory in Russia(need enter password to watch)

    (Server in China)


    Descriptions :

    This varnish vacuum pressure impregnation machine(SS-V01) is used for impregnation /dipping the insulation varnish / paint / enamel / resin / enamel, etc. liquid insulation material (liquid state) into the coil of transformers, relays, motors, inductors, etc. under the high vacuum status so that make sure the high insulation grade.The machine provide the vacuum chambers for taking out the air of products so that impregnate insulation varnish into the products be high quality under the high vacuum status. The machine there are vacuum meters, and small monitor windows for you monitor the impregnation operation and monitor the vacuum pressure. Easy to use.

    Specifications :

    1. Power source: AC 380V, 50/60Hz, three phase.

    2. Power: 1HP.

    3. Net weight: 200Kg.

    4. Vacuum chamber Qty.: 2.

    5. Vacuum chamber inside dimensions: 700(L)*530(W)*200(H)mm.(this dimensions can be customized by requestd)

    6. Machine dimensions: 1900(L)*850(W)*1100(H)mm.
