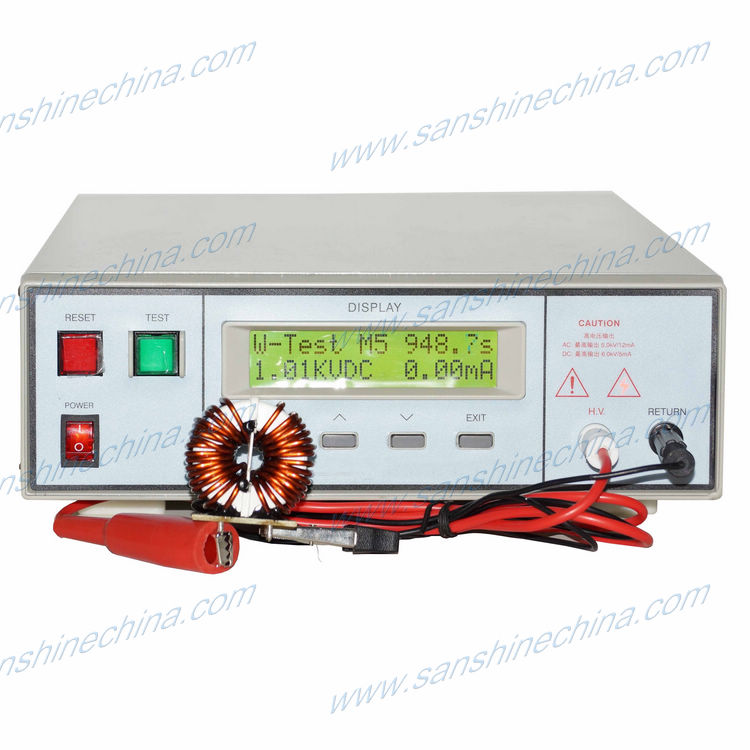

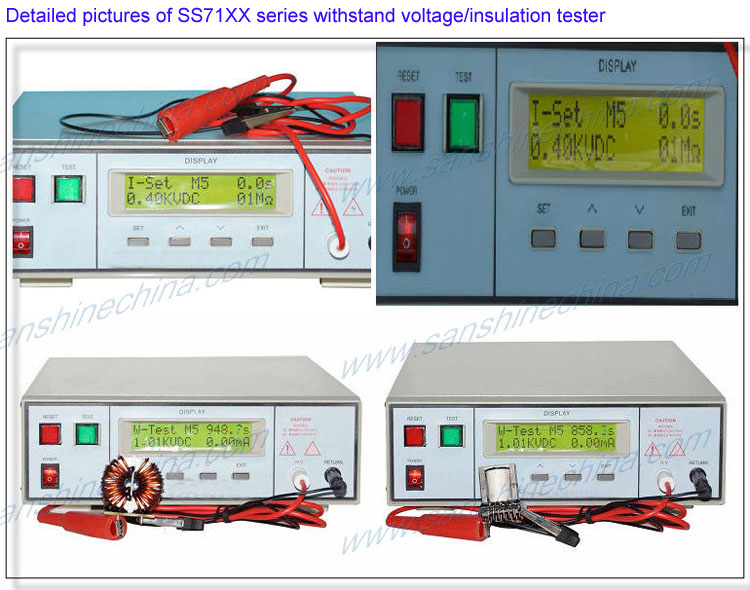

AC DC withstand voltage insulation HI POT tester (SS71XX series)
Product 1/2  AC/DC withstand voltage&insulation resistance tester  HI-POT tester (SS267XX series)
  • AC DC withstand voltage insulation HI POT tester (SS71XX series)
  • AC DC withstand voltage insulation HI POT tester (SS71XX series)
  • AC DC withstand voltage insulation HI POT tester (SS71XX series)

    Description :
    The (SS71XX series) high voltage withstand and insulation teter( HI-POT tester) is used for testing insulation grade and withstanding voltage capability of electrical equiment, transformers, motor, relays, cables, electronic components, electronics applications, inductors, ignition coils, insulation wires, insulation tapes, valve coils, reactors,contactors, etc. .
    Features :
    Compact size and light weight

    Four test modes available, W, I, W-I, I-W

    Linkable to Ground Bond Tester

    Capable of storing 5sets of testing conditions

    Electronic ramp up and dwell time for up to 999.9 seconds

    Front panel lockout

    Built-in PLC Remote interface

    Front panel software calibration

    Easy to operate

    Specifications :

      Model SS7122 SS7120 SS7112 SS7110
    AC WITHSTAND VOLTAGE
    Output Rating 5KVAC/12mA
    Output Voltage, KVAC Range Resolution Accuracy
    0-5.00 0.01 ± (2% of setting + 5V)
    Output Frequency 50Hz/60Hz ± 100ppm, User Selection
    Output Waveform Sine Wave, THD. < 2% (Resistive Load), Crest Factor = 1.3 - 1.5
    Output Regulation ± (1% of output + 5V), From no load to full load
    SETTINGS
    Hi-Limit AC Current, mA 0.10 - 12.00 0.01 ± (2% of setting + 2counts)
    Lo-Limit AC Current, mA 0.00 - 12.00 0.01 ± (2% of setting + 2counts)
    Ramp Time, second 0.1 - 999.9 0.1 ± (0.1% + 0.05sec)
    Dwell Time, second 0, 0.2 - 999.9 ( 0=continuous) 0.1
    Arc Detection 0, 1 - 9 ranges (0=OFF, 9 is the most sensitivity)
    DC WITHSTAND VOLTAGE (7120, 7122 ONLY)
    Output Rating 6KVDC/5mA
    Output Voltage, KVDC 0 - 6.00 0.01 ± (2% of setting + 5V)
    Output Ripple < 5%(6KV/5mA at Resistive Load)
    SETTINGS
    Hi-LimitDCCurrent, mA 0.02 - 5.00 0.01 ± (2% of setting + 2counts)
    Lo-LimitDCCurrent, mA 0.00 - 5.00 0.01 ± (2% of setting + 2counts)
    Ramp Time, second 0.1 - 999.9 0.1 ± (0.1% + 0.05sec)
    Dwell Time, second 0, 0.2 - 999.9 (0=continuous) 0.1
    Arc Detection 0, 1 - 9 ranges (0=OFF, 9 is the most sensitivity)
    Discharge Time < 200 msec
    INSULATION RESISTANCE (7112, 7122 ONLY)
    Output Rating 1KVDC/1000MΩ
    Output Voltage, KVDC 0.10 - 1.00 0.01 ± (2% of setting + 2V)
    SETTINGS
    Hi-Limit Resistance, MΩ   0, 1 - 1000 (0=OFF) 1 ± (3% of setting+2counts)at > 500VDC ± (7% of setting +2counts)at < 500VDC
    Lo-Limit Resistance, MΩ   1 - 1000 1
    Delay Time, second 0, 0.5 - 999.9 (0=continuous) 0.1 ± (0.1% + 0.05sec)
    MEASUREMENT
    AC/DC Voltage, KV 0 - 6.00 0.01 ± (2% of reading + 1count)
      DC Voltage, KV (IR only) 0.10 - 1.00 0.01 ± (2% of reading + 2V)
    AC Current, mA 0.10 - 12.00 0.01 ± (2% of reading + 2counts)
    DC Current, mA 0.02 - 5.00 0.01 ± (2% of reading + 2counts)
    Resistance, MΩ   1 - 1000 (Auto Range) 0.001 0.01 0.1 ± (3% of reading+2counts)at > 500VDC ± (7% of reading +2counts)at < 500VDC
    GENERAL
    Input Voltage AC 110/220Vac± 15%, 50/60Hz ± 5%, Fuse 3A Fast
    PLC Remote Control Input: Test, Reset
    Output: Pass, Fail, Processing
    Memory 5 Sets Store/Recall  of each Memory, 4 Test Mode Selectable (W, I, W∼ I, I∼ W Only 7112, 7122)
    Display 16× 2 LCD with back light
    Key Lock To prevent unauthorized alteration of the test Parameters
    Calibration Build-in software and external calibrated meters
    Environment 0-40º C, 20-80%RH
    Dimension/Net Weight 280mm(W)× 89mm(H)× 370mm(D)/ 9Kg
    STANDARD ACCESSORIES
    Power Cord(10A) × 1
    Fuses × 3 (Including a spare contained in the fuse holder)
    High Voltage Test Cable(1101) × 1
    Return Test Cable(1102) × 1

    *product specifications are subject to change without notice.

    Ordering information of SS71XX series withstand voltage/insulation tester:

    SS7110 AC Withstand Voltage Tester

    SS7112 AC Withstand Voltage / Insulation Resistance Tester

    SS7120 AC/DC Withstand Voltage Tester

    SS7122 AC/DC Withstand Voltage / Insulation Resistance Tester
