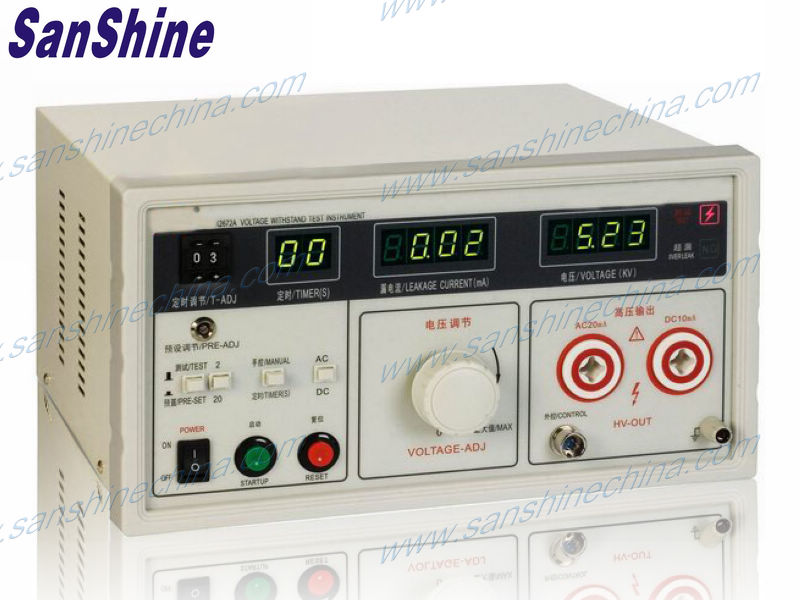

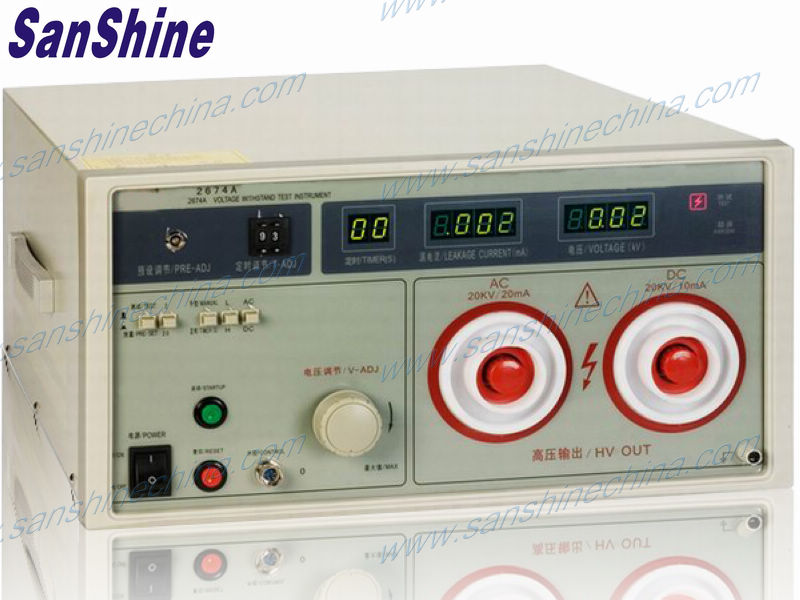

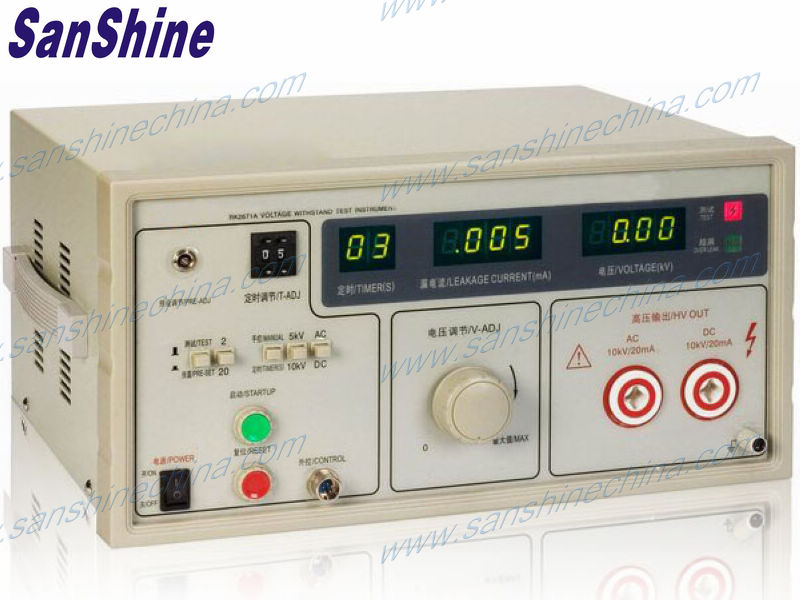

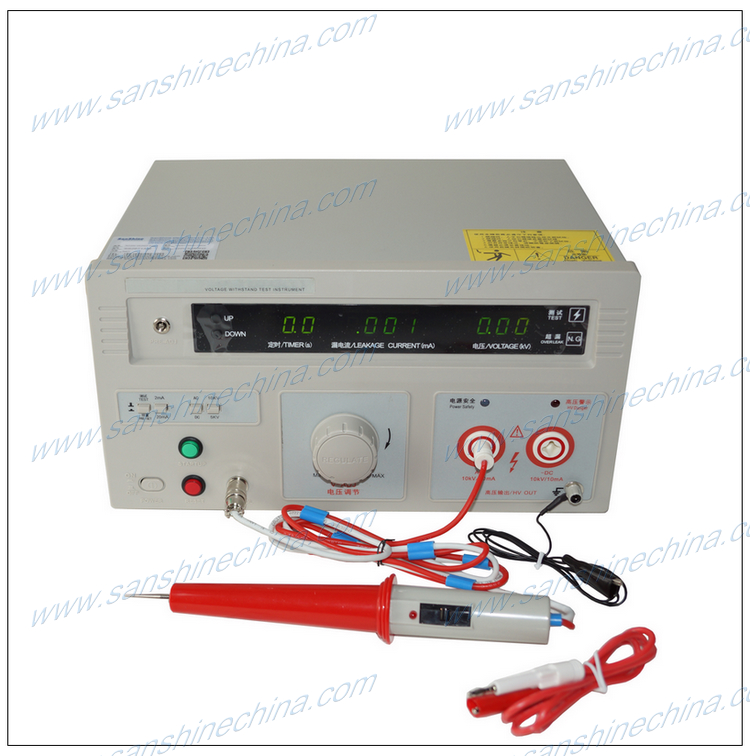

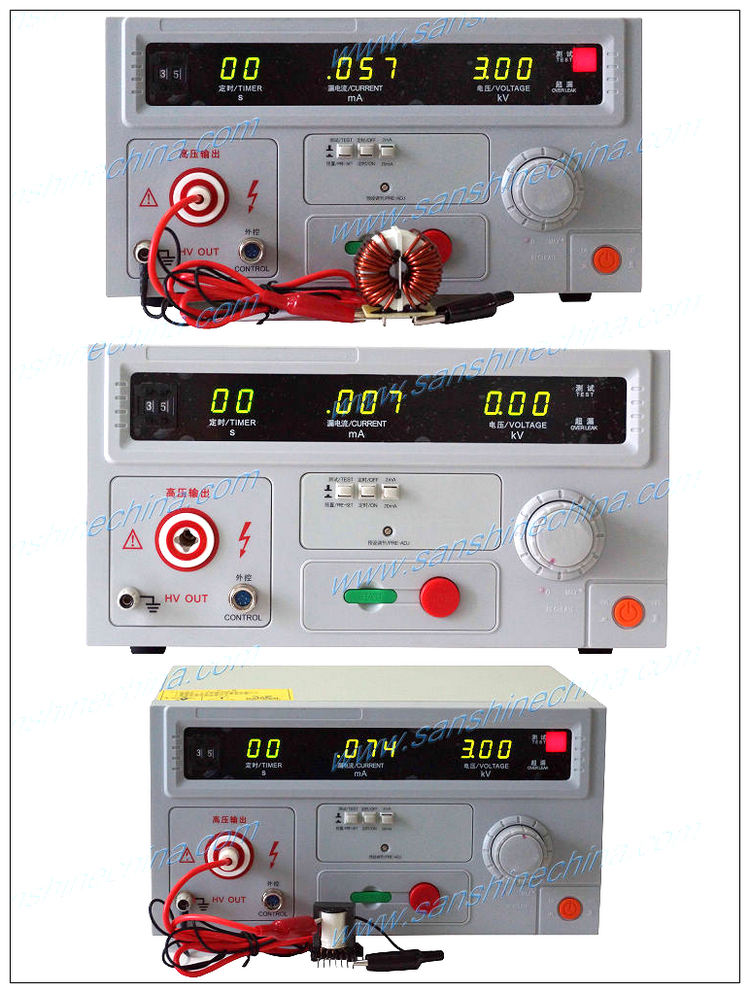

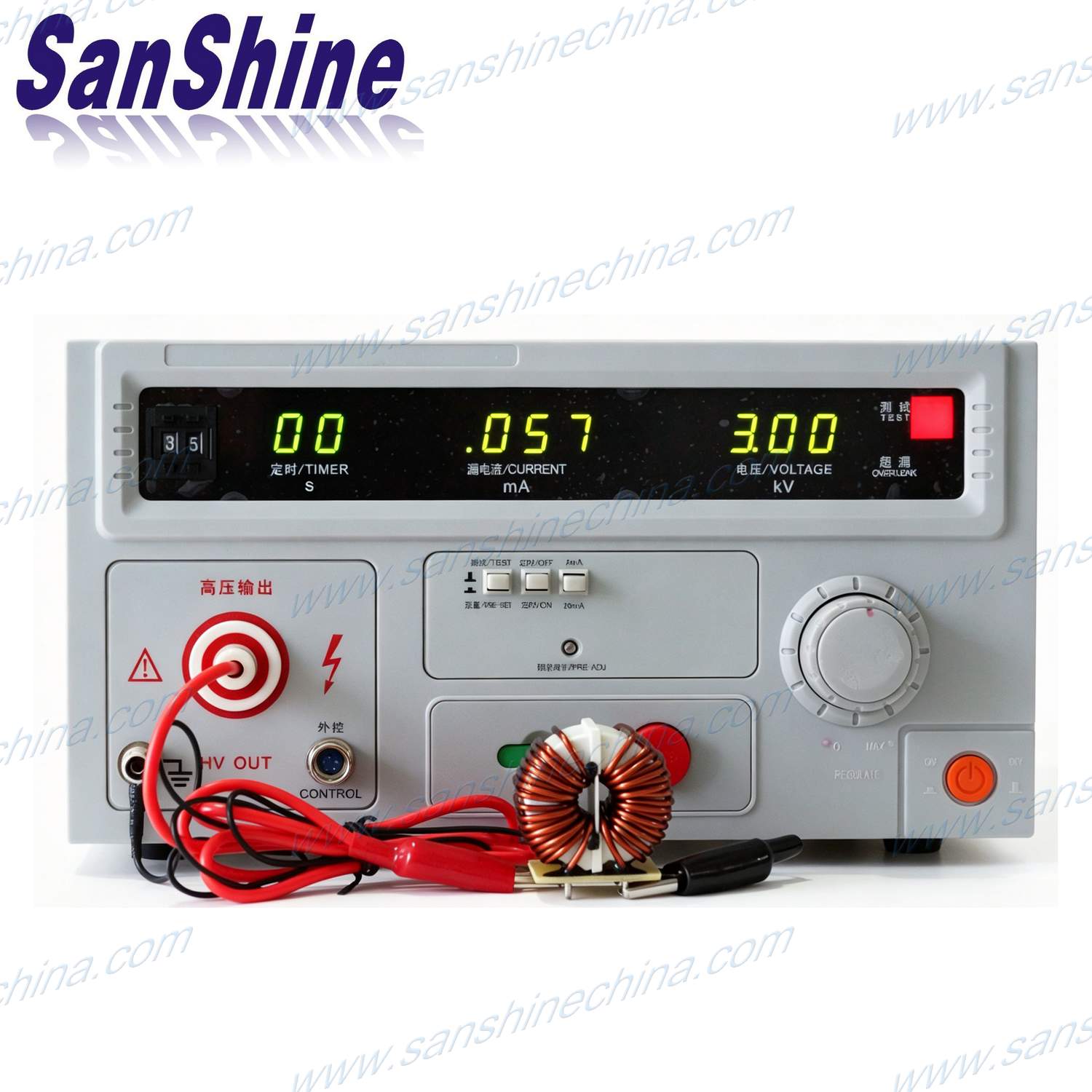

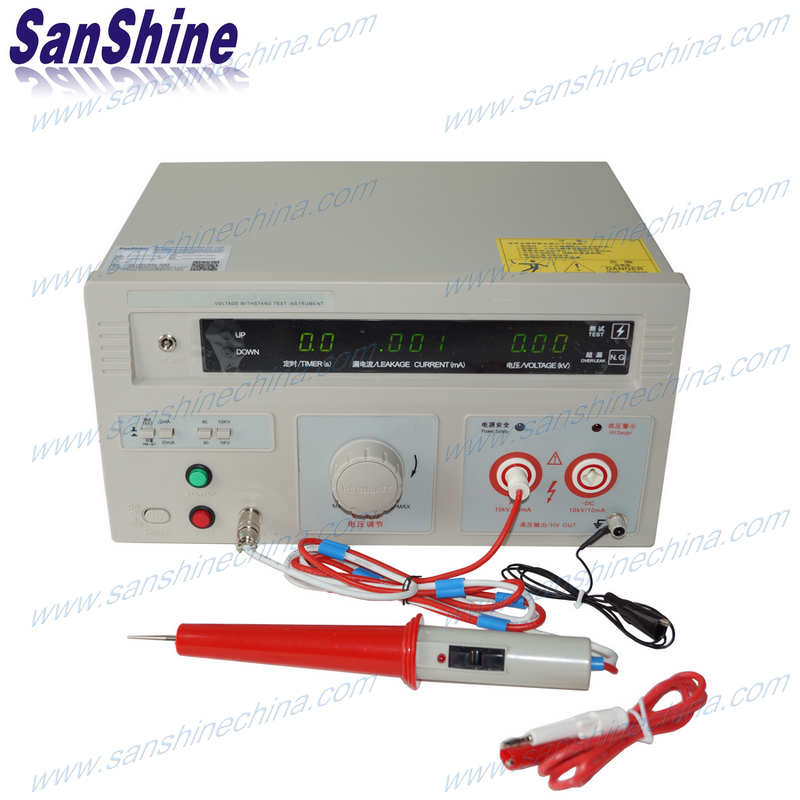

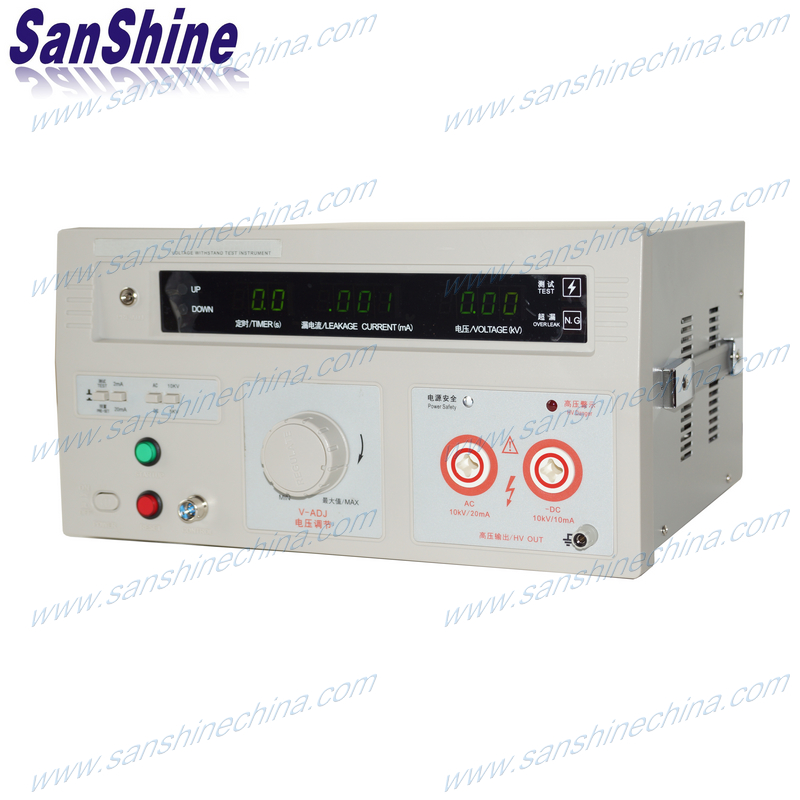

HI-POT tester (SS267XX series)

Product 2/2

Product name : AC/DC 2KV Adjustable digital high voltage withstand tester (SS267XXX series)

Description:

Specification:

Model	SS2670AM	SS2671AM	SS2671BM	SS2671CM	SS2672AM	SS2672BM	SS2672CM	SS2672DM	SS2674A
Output voltage(AC)(KV)	0~5.0	0~5 /10	0~5 /10	0~5 /10	0~5.0	0~5.0	0~5.0	0~5.0	0~20
Output voltage(DC)(KV)	NO	0~5 /10	0~5 /10	0~5 /10	0~5.0	NO	0~5.0	0~5.0	0~20
Testing current(AC)(mA)	0~2 / 20	0~2 / 20	0~2 /20 /50	0~2 /20/100	0~2 / 20	0~2/20/100	0~2/20/100	0~2/20/200	0~2 / 20
Testing current(DC)(mA)	NO	0~ 2/ 10	0~2 / 20	0~2 / 20	0~2 / 10	NO	0~2 / 20	0~2 / 20	0~2 / 10
Testing accuracy	±(5%+3digits)								±5%
Testing time (S)	0.0～999s ,0.0=continuing
Output transformer capacity	100VA	200VA	500VA	1000VA	100VA	500VA	500VA	1000VA	400VA
External PLC connecting port	optional	optional	optional	optional	optional	optional	optional	optional	optional
Power source	220V±10%,50/60Hz±3Hz
Working environment	(0-40)℃ ,Humidity≤75%RH
Dimensions(cm)	32×27×18	38×30.5×19.5	44.3×39×22	44.3×39×22	39×27×18	39×27×18	44×38×18	44×38×18	45×51.5×23
Weight (Kg)	8.5	14.5	17.5	27	9.5	14	18.5	24.5	35
Accessary	1PCS testing stick, 1PCS testing cable,1PCS Grounding cable, 1PCSpower cable.
