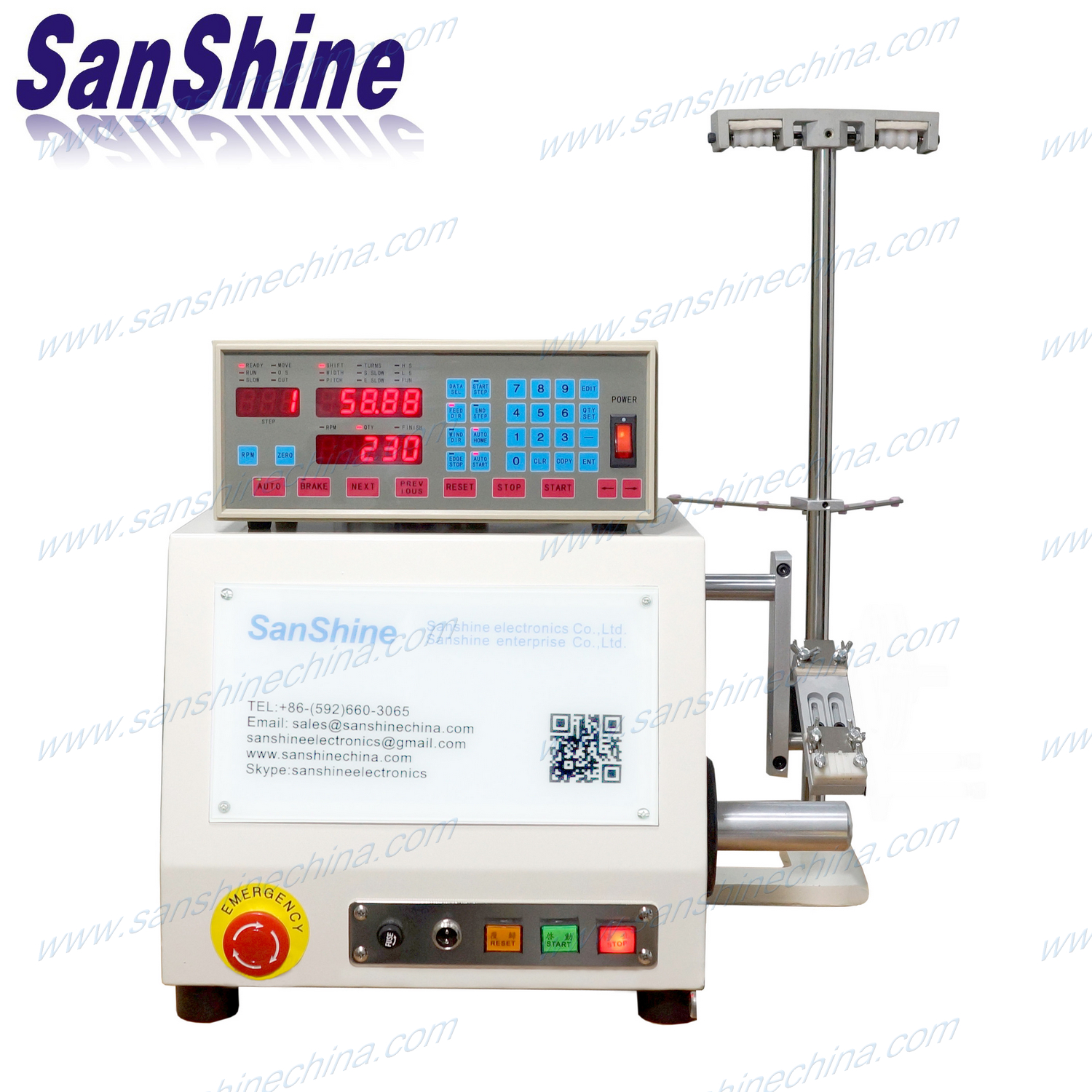

    AC Line ET UT Filter Inductor Winding Machine (SS600ET)

    Description :

    AC Line ET UT Filter Inductor Winding Machine (SS600ET). This coil winding machine is a precise digital programmable
    coil winding machine

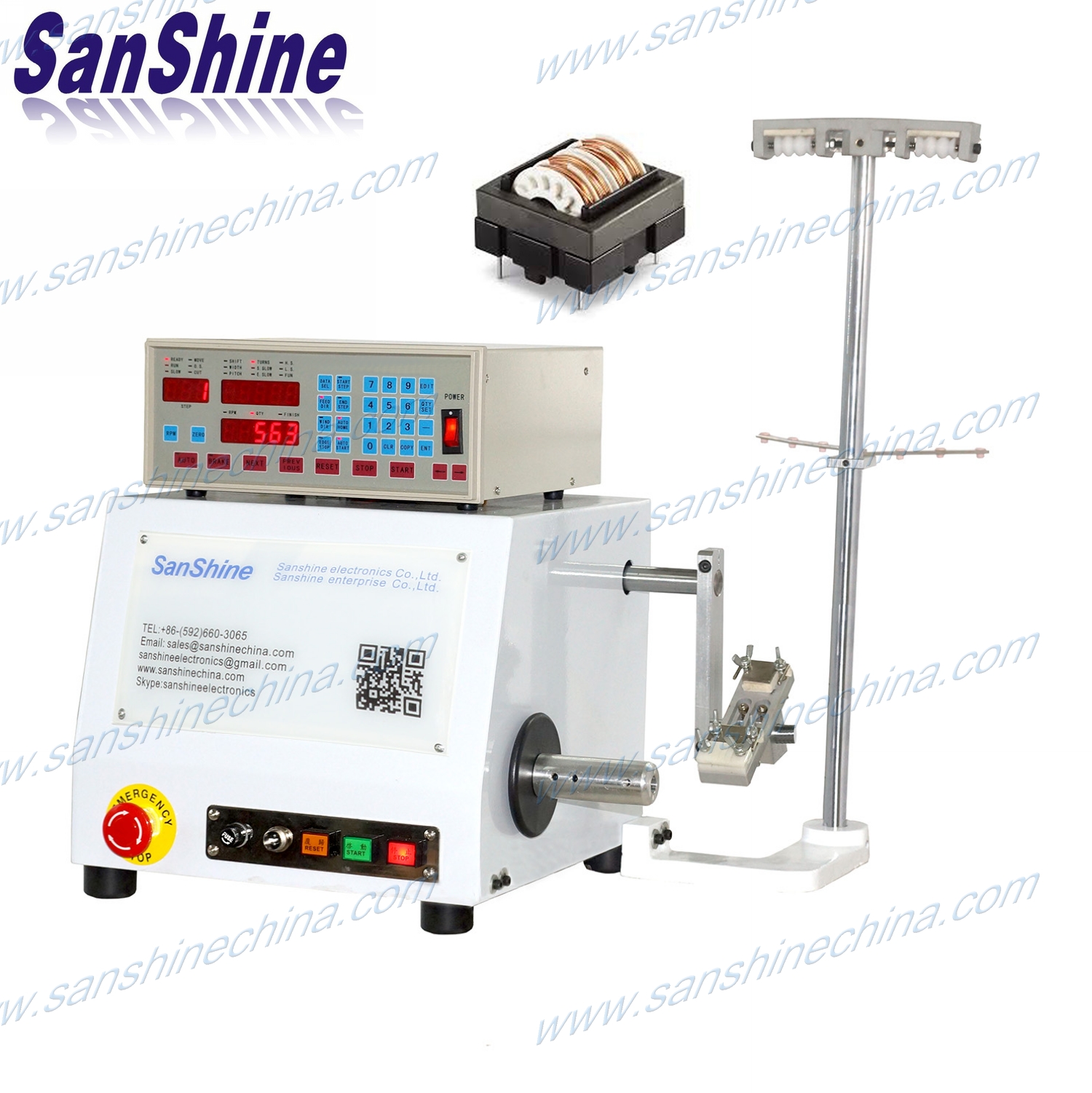

    It's the best choice for winding the AC Line ET series filter inductor coil, UT series filter Inductor coil, etc. .

    Features:
    1. Spreading head of SS600ET winder can install four different wire size at the same time.
    2. Winding and taping can be done by one machine.
    3. Step motor driven by constant-current power supply, high Spreading speed precise winding.
    4. "Start Point" could set by key panel or with teachable function. Display will show the position of spreading head while setting.

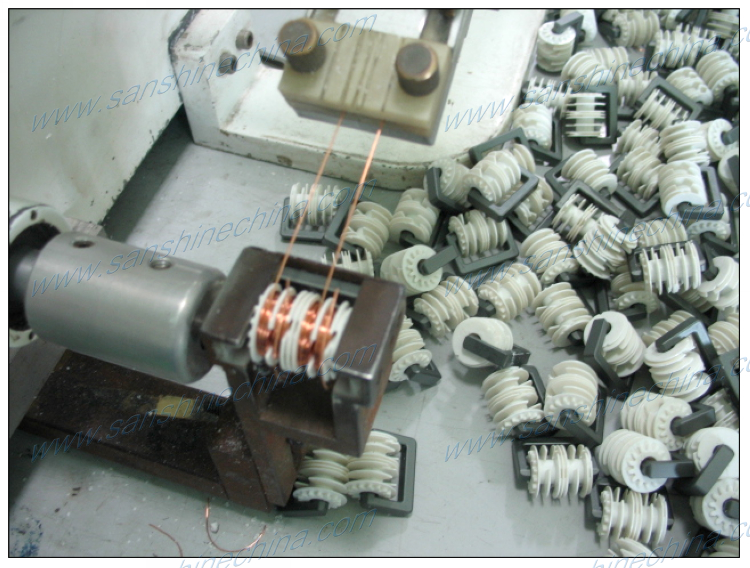

    5. Small wire diameter products of spreading by nozzle type spreading head.
    6. Wire passing through ceramic rollers prevent enamel from high temperature.

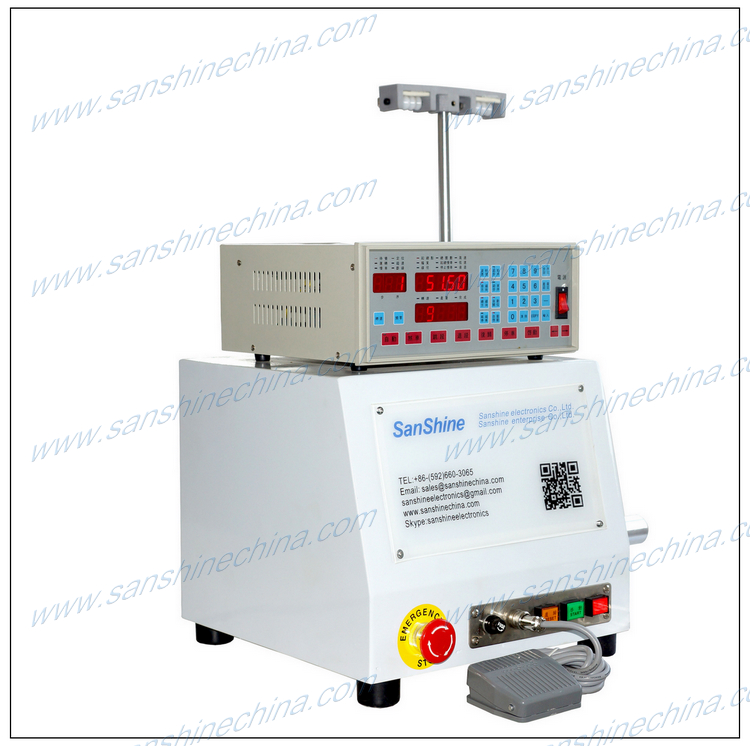

    7. Foot-switch connection for better efficiency.
    8. Winding parameters and options can be set independently for each step.
    9. Memory capacity accommodates 999 steps of parameters with Off-power memory retention.

    Model

    SS600ET

    Spindles

    1

    Wire size

    0.08~ 1.0mm

    Spread pitch

    0~ 9.999mm

    Spread width

    100mm (Max. )

    Coil diameter

    110mm (Max. )

    Main motor

    Brushless Motor

    Spread motor

    2-Phase Stepper Motor

    MAX. speed

    6000rpm

    Memory

    999 Steps

    Power source

    AC220V/110V + 10%, 50/60 Hz

    Dimension(CM)

    76x68x72

    Net weight(KG)

    37
