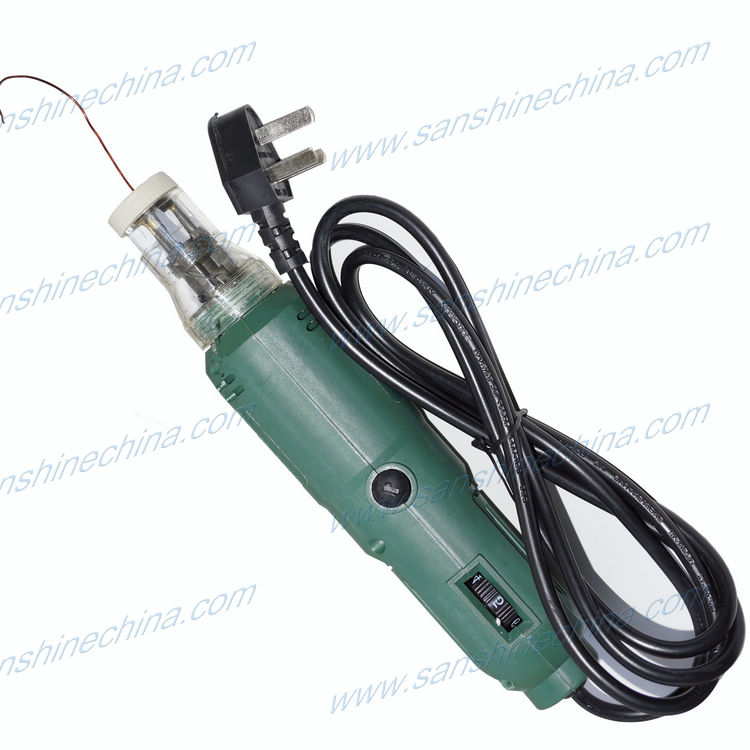

Product name : Portable rotary blade wire stripping machine (SS-SM06)

Description :

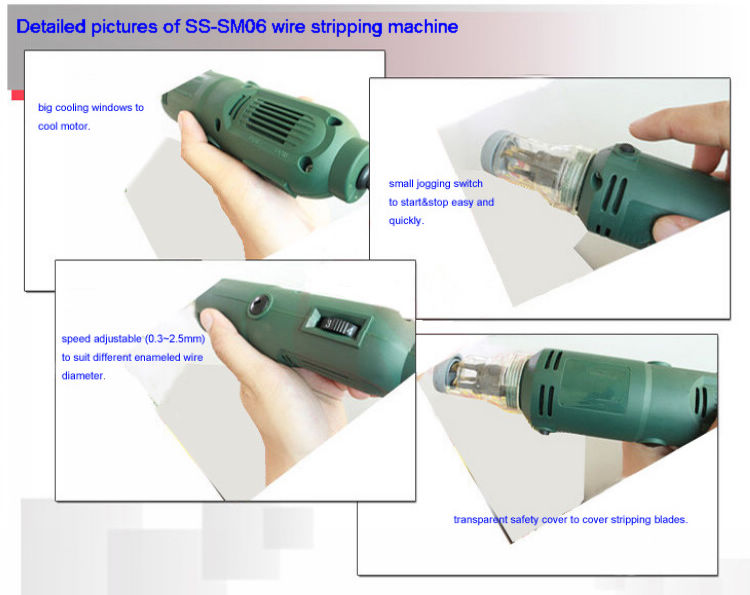

The (SS-SM06) portable rotary blade wire stripping machine is one handset wire stripper. it is constructed from motor,rotary stripping blade,speed knob,blade cover,hand switch. Is very convenient to use, Which can strip a lot of surface insulated film wires(like as: magnet wire,enamel wire,varnished wire,etc.)quickly, and do not break wire core. It is used for motor manufacture, transformer manufacture,inductor manufacture,coils manufacture,wires processing,cable manufacture, and so on. It is superior to knife, grinding wheel and chemical of stripping ways. It increases the processing efficiency and improve the soldering quality.
Specification :
Wire diameter range: Φ 0.3~3.0mm
Stripping wire length: 2.0 ~ 50mm
Power source: 220V/50Hz, 110V can be customized by request.
Power: 75W
Rotation speed: 0 ~ 12000RPM
Weight: 1Kg
