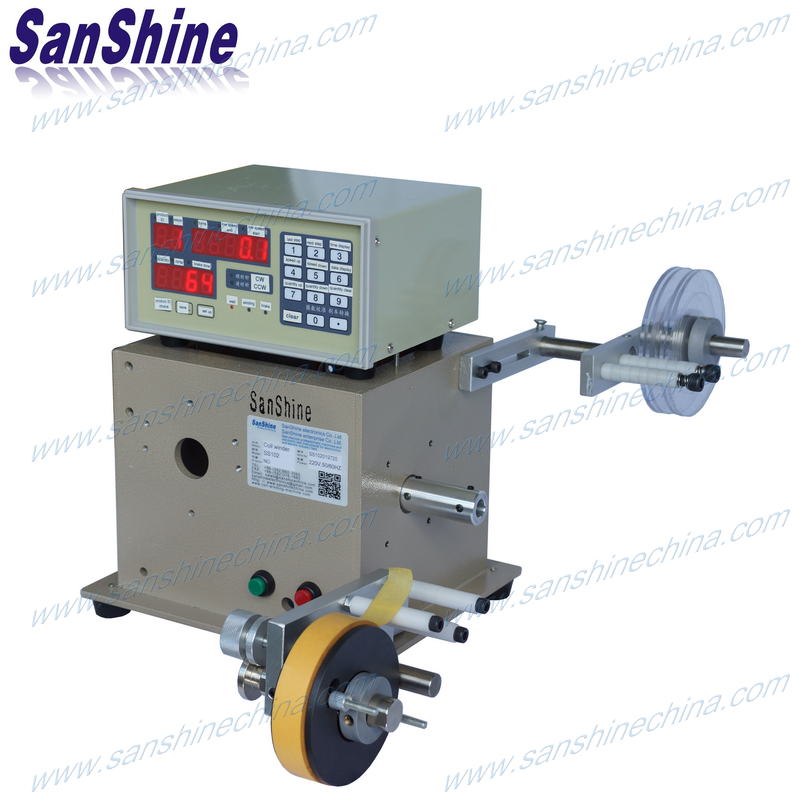

The (SS102) digital coil winding machine
adopts digital controller, it's an accurately and reliability digital coil winding machine
for winding transformers, inductors, relays, contactor,etc.. It is one very economical. it spreads wire by manual(semi-automatic).
1. Accurately count turns of winding by photo-electricity sensor.
2. Programmable winding direction, winding turns, winding speed, pre-stop& pre-start speed. Programmable many steps for many different windings coil.
3. Memory capacity accommodates 99 sequences of parameters with off-power memory retention.
4. Spread wire way : operator hold the copper wire to spread by manual.

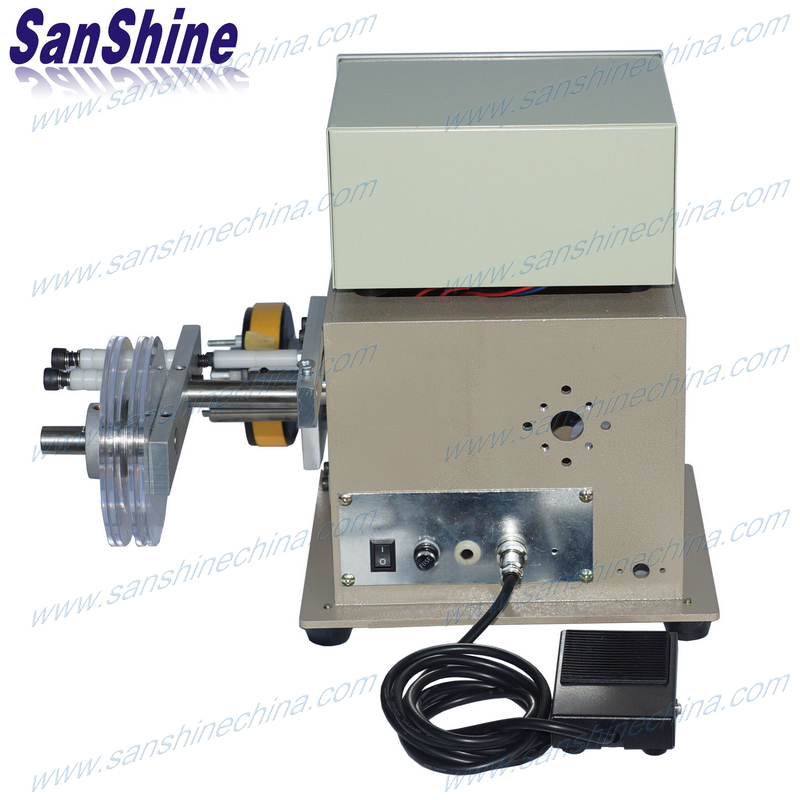

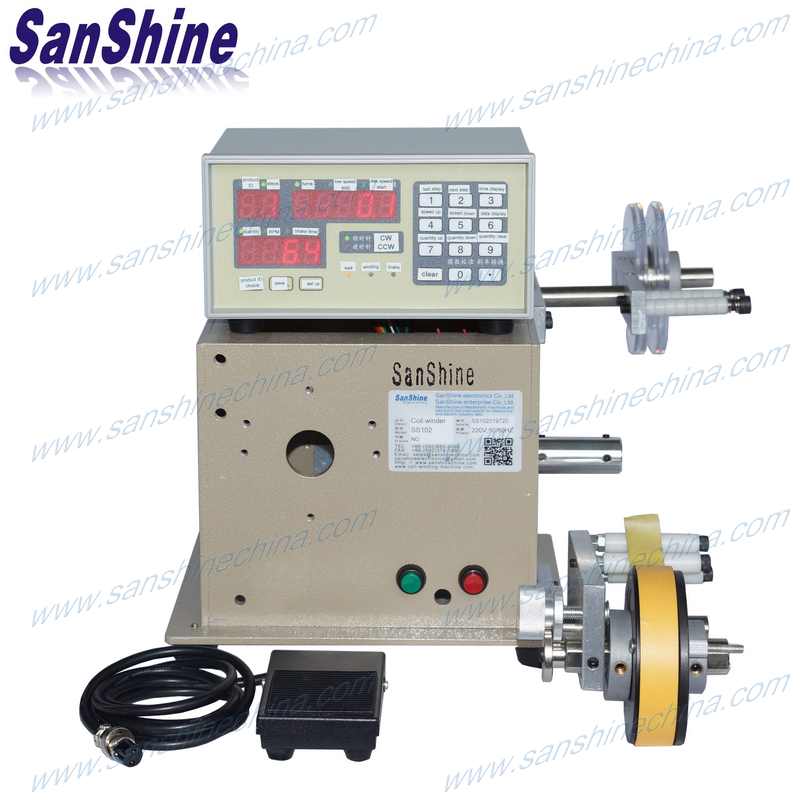

5. More convenience by using foot-switch.

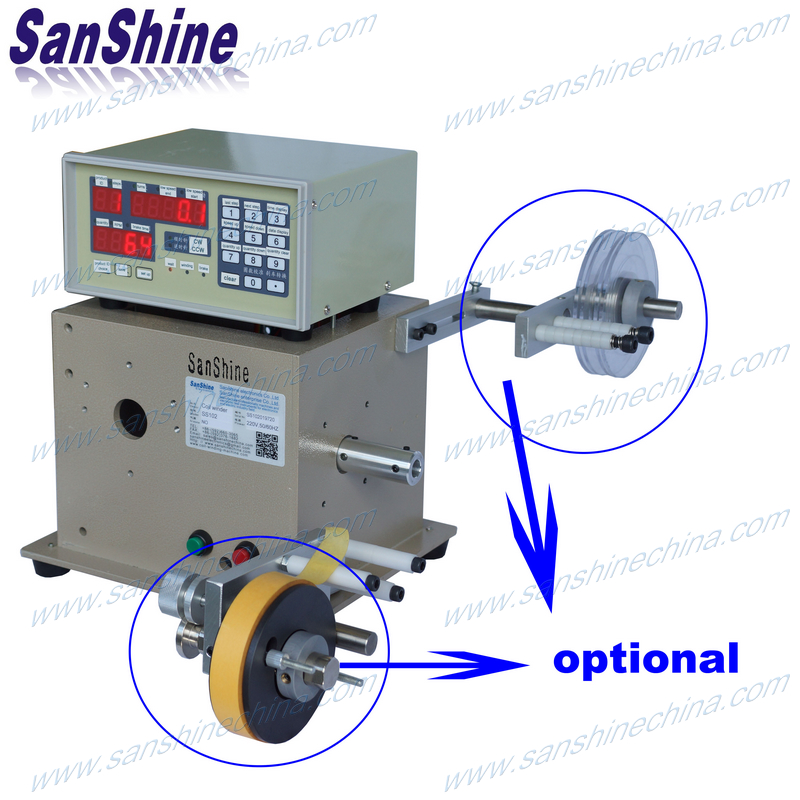

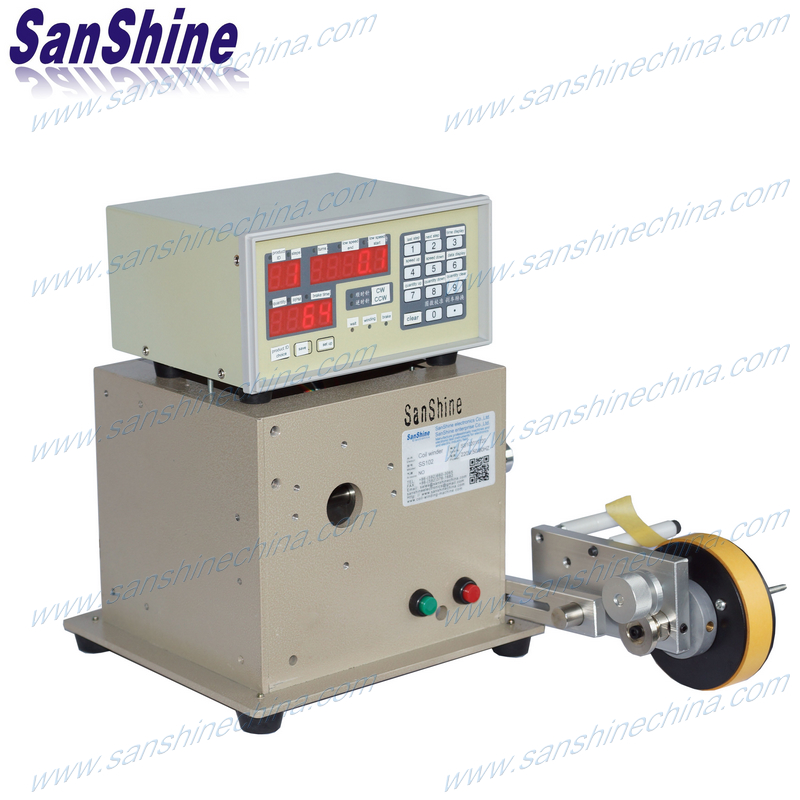

6. Optional marge tape taping device and coil tape taping device for the transformers.
Wire size: Φ 0.03~1.8mm
Speed: 300 ~6600rpm
Winding motor: DC Brushless motor
Memory capacity: 999 steps
Power source: AC220V/110V ±10%, 50/60 Hz
