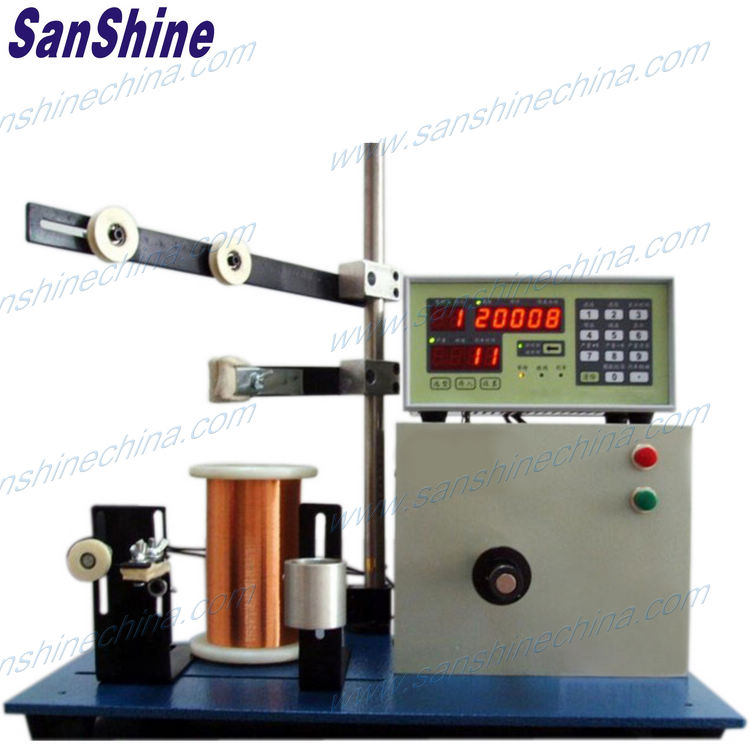

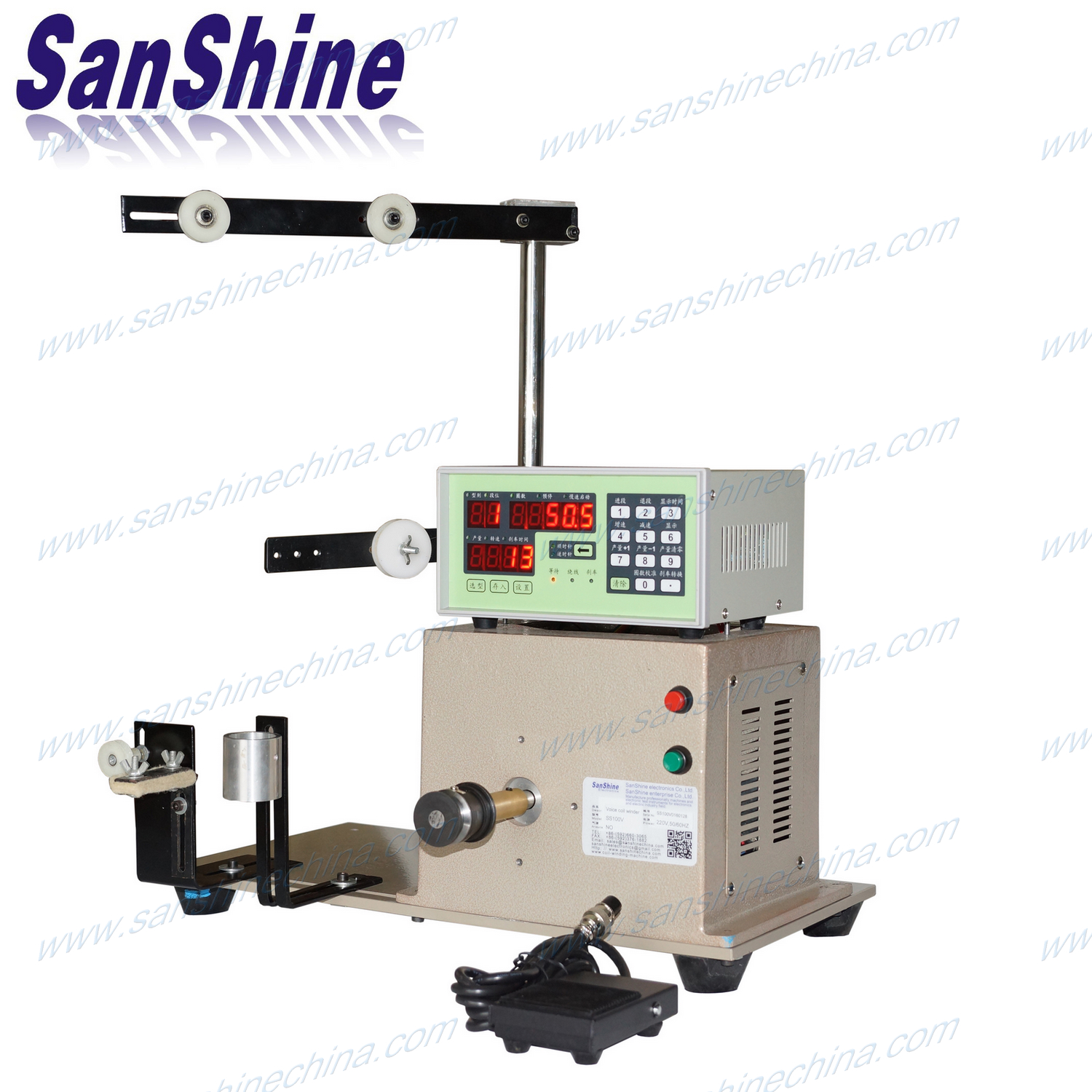

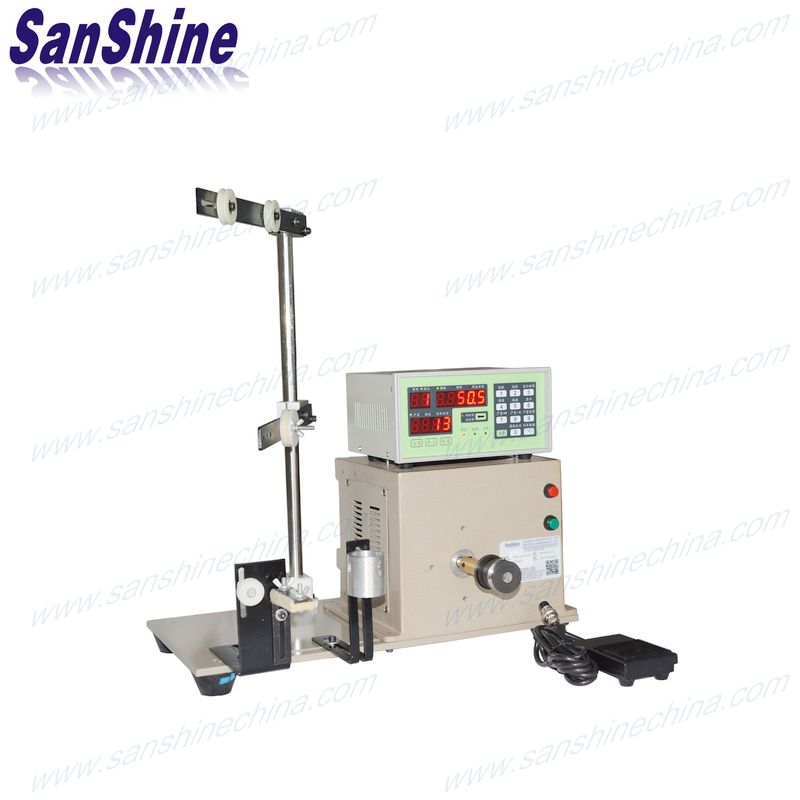

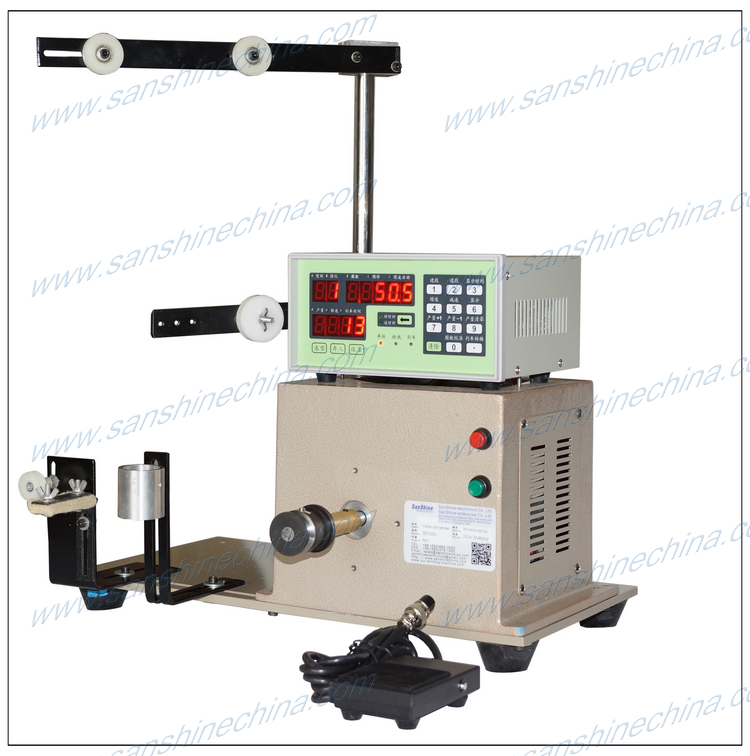

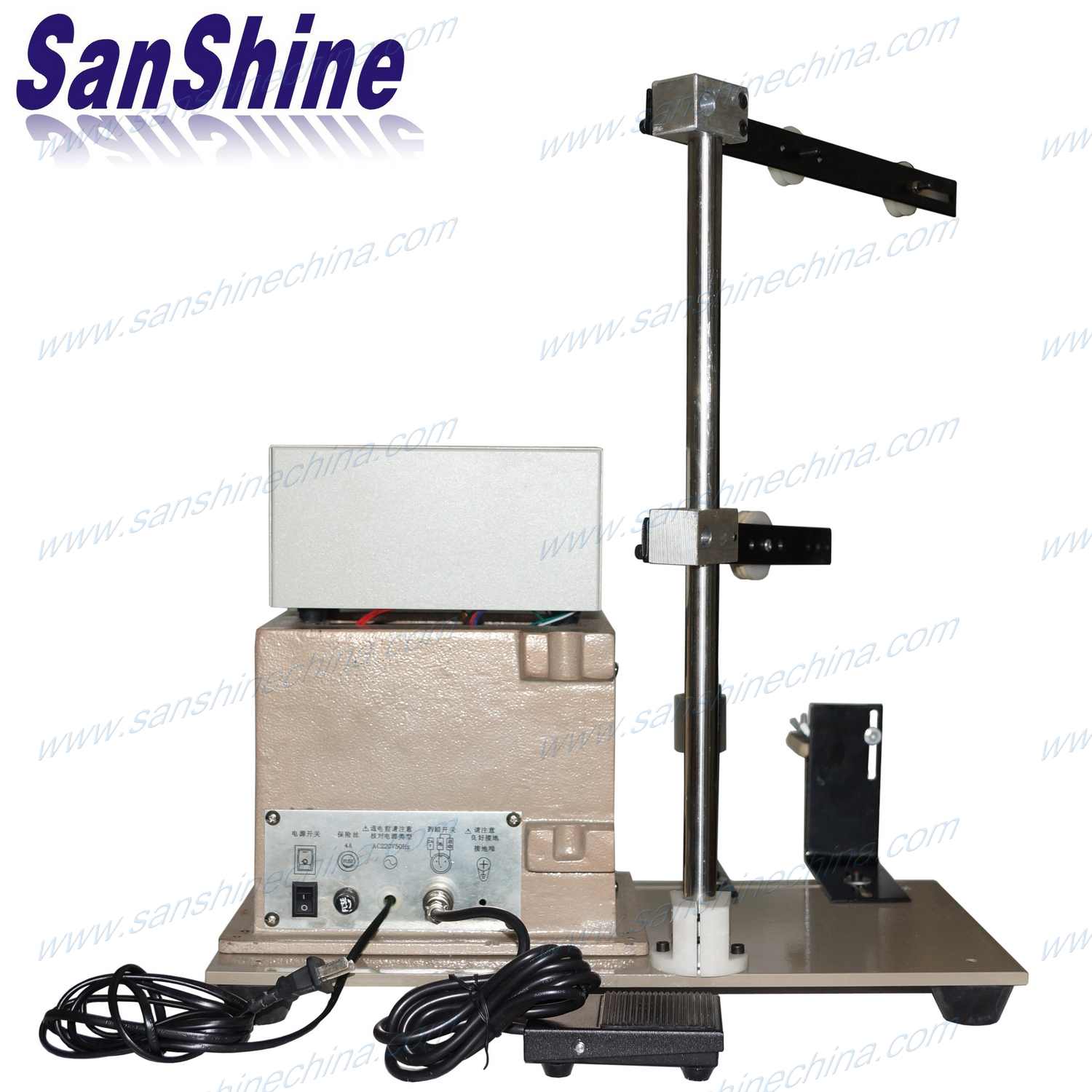

The (SS100V) digital voice coil winding machine
adopts digital controller, it's an accurately and reliability digital coil winding machine

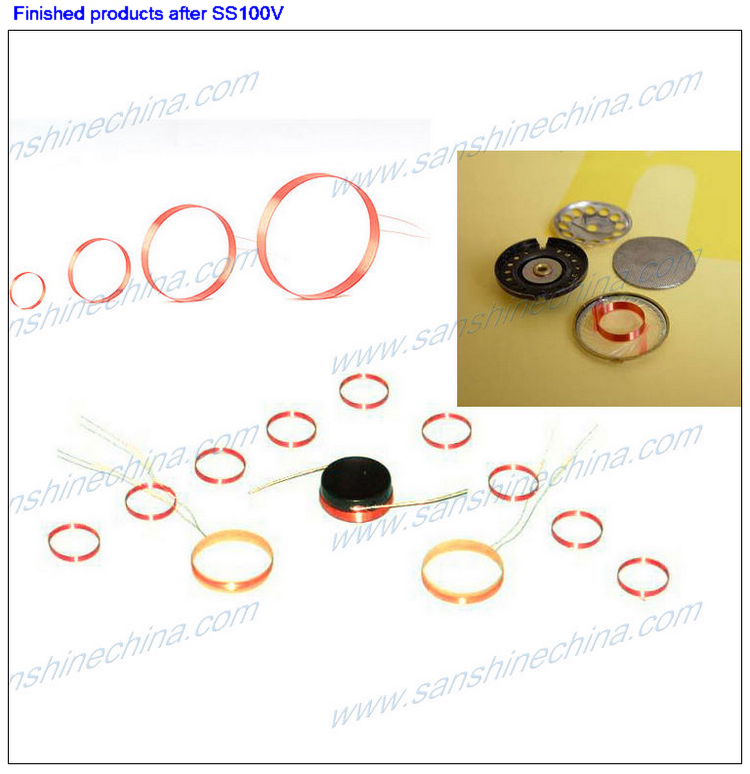

for winding small voice coil without bobbin,like as: mobile phone speaker voice coil, small speaker voice coil,earphone speaker coil,etc.. It is very economical.
1. Accurately count turns of winding by photo-electricity sensor.
2. Programmable winding direction, winding turns, winding speed, pre-stop& pre-start speed. Programmable many steps for many different windings coil.

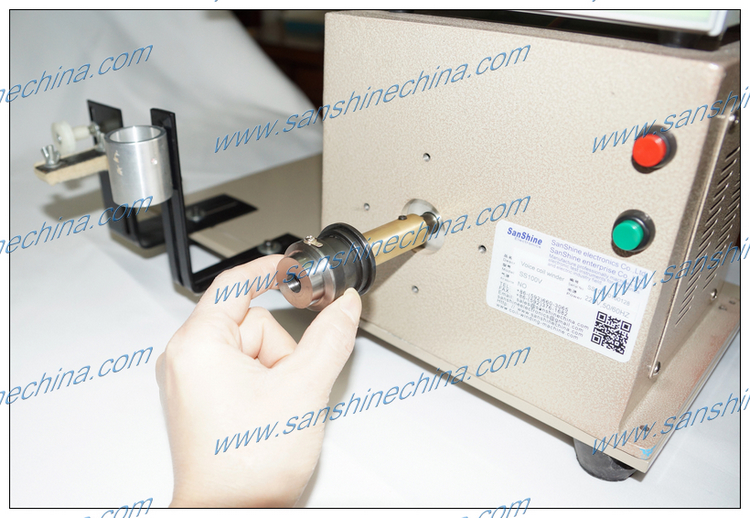

3. Scientific winding fixture for winding and finished unload easy.
4. Memory capacity accommodates 99 sequences of parameters with off-power memory retention.
5. More convenience by using foot-switch.
6. Include one alcohol bath cup for winding the alcohol self-bonding wires.
7. Spread wire by automatically.
WIRE SIZE: φ 0.02~0.5mm
WINDING SPEED: 300 ~8570rpm
WINDING MOTOR: DC Brushless Motor
MEMORY CAPACITY: 999 Steps
POWER SOURCE: AC220V/110V±10%, 50/60 Hz.
BRAKE WAY: Use the reverse electromotive force of motor.
